JVC KD-R307 Instructions

KD-R307/KD-R37
CD RECEIVER: INSTRUCTIONS/INSTALLATION
ENGLISH
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified
service personnel.
3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
[European Union only]
For safety...
• Do not raise the volume level too much, as this will block
outside sounds, making driving dangerous.
• Stop the car before performing any complicated
operations.
Temperature inside the car...
If you have parked the car for a long time in hot or cold
weather, wait until the temperature in the car becomes
normal before operating the unit.
MORE ABOUT THIS UNIT
Basic operations
• By pressing SRC on the unit, you can also turn on the
power. If the source is ready, playback also starts.
• If you turn off the power while listening to a track,
playback will start from where it had been stopped
previously next time you turn on the power.
• If no operation is done for about 30 seconds after
pressing MENU button, the operation will be canceled.
Tuner operations
• During SSM search...
– All previously stored stations are erased and the
stations are stored anew.
– When SSM is over, the station stored in the lowest
preset number will be automatically tuned in.
• Network-Tracking Reception requires two types of Radio
Data System signals—PI (Programme Identification)
and AF (Alternative Frequency) to work correctly.
• If a Traffic Announcement is received by TA Standby
Reception, the volume level automatically changes to the
preset level (TA VOL) if the current level is lower than the
preset level.
• When Alternative Frequency Reception is activated
(with AF selected), Network-Tracking Reception is also
activated automatically. On the other hand, Network-
Tracking Reception cannot be deactivated without
deactivating Alternative Frequency Reception.
Disc operations
Caution for DualDisc playback
• The Non-DVD side of a "DualDisc" does not comply with
the "Compact Disc Digital Audio" standard. Therefore,
the use of Non-DVD side of a DualDisc on this product
may not be recommended.
General
• This unit has been designed to reproduce CDs/CD Texts,
and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD
(CD-DA) and MP3/WMA formats.
Playing a CD-R or CD-RW
• Use only "finalized" CD-Rs or CD-RWs.
• This unit can play back multi-session discs; however,
unclosed sessions will be skipped while playing.
• Some CD-Rs or CD-RWs may not be played back on this
unit:
– Discs are dirty or scratched.
– Moisture condensation has occurred on the lens inside
the unit.
GET0569-001B
Warning
If you need to operate the unit while driving, be sure to
look around carefully or you may be involved in a traffic
accident.
Caution on volume setting
Discs produce very little noise compared with other sources.
Lower the volume before playing a disc to avoid damaging
the speakers by the sudden increase of the output level.
– The pickup lens inside the unit is dirty.
– The files on the CD-R/CD-RW are written using the
"Packet Write" method.
– There are improper recording conditions (missing data,
etc.) or media conditions (stained, scratched, warped,
etc.).
• CD-RWs may require a longer readout time since the
reflectance of CD-RWs is lower than that of regular CDs.
Playing an MP3/WMA disc
• This unit can play back MP3/WMA files with the
extension code <.mp3> or <.wma> (regardless of the
letter case—upper/lower).
• This unit can show the names of albums, artists
(performer), and tag (Version 1.0, 1.1, 2.2, 2.3, or 2.4) for
MP3 files and for WMA files
• This unit can play back MP3/WMA files meeting the
conditions below:
– Bit rate: 8 kbps — 320 kbps
– Sampling frequency:
48 kHz, 44.1 kHz, 32 kHz (for MPEG-1)
24 kHz, 22.05 kHz, 16 kHz (for MPEG-2)
– Disc format: ISO 9660 Level 1/ Level 2, Romeo, Joliet,
Windows long file name
• The maximum number of characters for file/folder names
vary depending on the disc format used (includes 4
extension characters—<.mp3> or <.wma>).
– ISO 9660 Level 1: up to 12 characters; ISO 9660 Level
2: up to 31 characters; Romeo: up to 128 characters;
Joliet: up to 64 characters; Windows long file name: up
to 128 characters
• This unit can recognize a total of 512 files, 255 folders,
and 8 hierarchical levels.
• This unit can play back files recorded in VBR (variable bit
rate).
Files recorded in VBR have a discrepancy in the elapsed
time display, and do not show the actual elapsed time.
In particular, this difference becomes noticeable after
performing the search function.
• This unit cannot play back the following files:
– MP3 files: encoded in MP3i and MP3 PRO format; an
inappropriate format; layer 1/2.
– WMA files: encoded in lossless, professional, and voice
format; not based upon Windows Media® Audio; copy-
protected with DRM.
– Files which have data such as AIFF, ATRAC3, etc.
• The search function works but search speed is not
constant.
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best
possible performance from the unit.
Installation/connection are explained at the last section of this manual (reverse page, indicated with
symbol).
[EE]
PREPARATIONS
How to reset your unit
Reset the unit after installation is complete.
• Your preset adjustments will also be erased.
How to forcibly eject a disc
• Be careful not to drop the disc when it ejects.
• If this does not work, reset your unit.
Basic settings
Enter Menu operation.
MAINTENANCE
How to clean the connectors
Wipe the connectors
with a cotton swab or
cloth moistened with
alcohol.
Connectors
Moisture condensation
Moisture may condense on the lens inside the unit. Eject
the disc and leave the unit turned on for a few hours until
the moisture has evaporated.
To keep discs clean
Wipe in a straight line from center of disc to
edge. Do not use liquid cleaners, thinners, or
benzene.
OPERATIONS
Basic operations

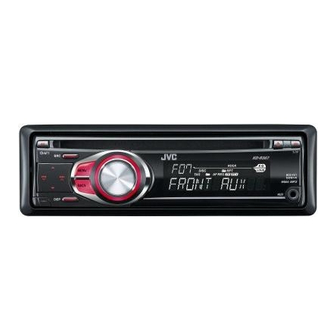

Control panel
Select the source.
• Turn on the power.
• Attenuate the sound (if the
power is on).
• Turn off the power [Hold].
Detach the panel.
Check the current clock time/other information.
See also "CLOCK DISP" of "Menu operations."
Display window
Disc indicator
• Source display
• Track number
• Folder number
• Time countdown indicator
Tr (track) indicator
Disc information indicators Main display (time,
playback information)
1– EN
© 2009 Victor Company of Japan, Limited
Detaching the control panel
Attaching the control panel
1
Select an item. Cancel the display demonstrations
Select "DEMO," then "DEMO OFF."
2 Set the clock
Select "CLOCK"
Adjust the hour, then press control dial once
to proceed to adjust the minute.
Select "24H/12H," then "24 HOUR" or
"12 HOUR."
• To return to the previous menu, press BACK.
To play new discs
Remove any rough areas from the inner and
outer edges of the disc.
Do not use the following discs:
• Single CD (8 cm disc)
• Warped disc
• Disc with sticker and sticker residue
• Disc with stick-on label
• Unusual shape disc
• C-thru Disc (semi-transparent disc)
• Disc with transparent or semi-transparent parts on its
recording area
• Control the volume or selection [Turn].
• Confirm the selection [Press] .
• FM: Enter SSM preset mode [Hold] .
• CD: Enter playback mode [Hold] .
* 1 You cannot select "CD" as the playback source
Return to the
if no disc is in the unit.
previous menu.
* 2 You cannot select these sources if they were
disabled in the Menu (see "Menu operations").
Playback mode / item indicator
EQ (equalizer) indicator
Sound mode indicator
LOUD (loudness) indicator
• ST: Lights up when receiving an FM
stereo broadcast with sufficient
signal strength.
• MO: Lights up in monaural mode.
Radio Data
System indicators
0409DTSMDTJEIN
EN
=
"CLOCK SET."
