www.skyline.com

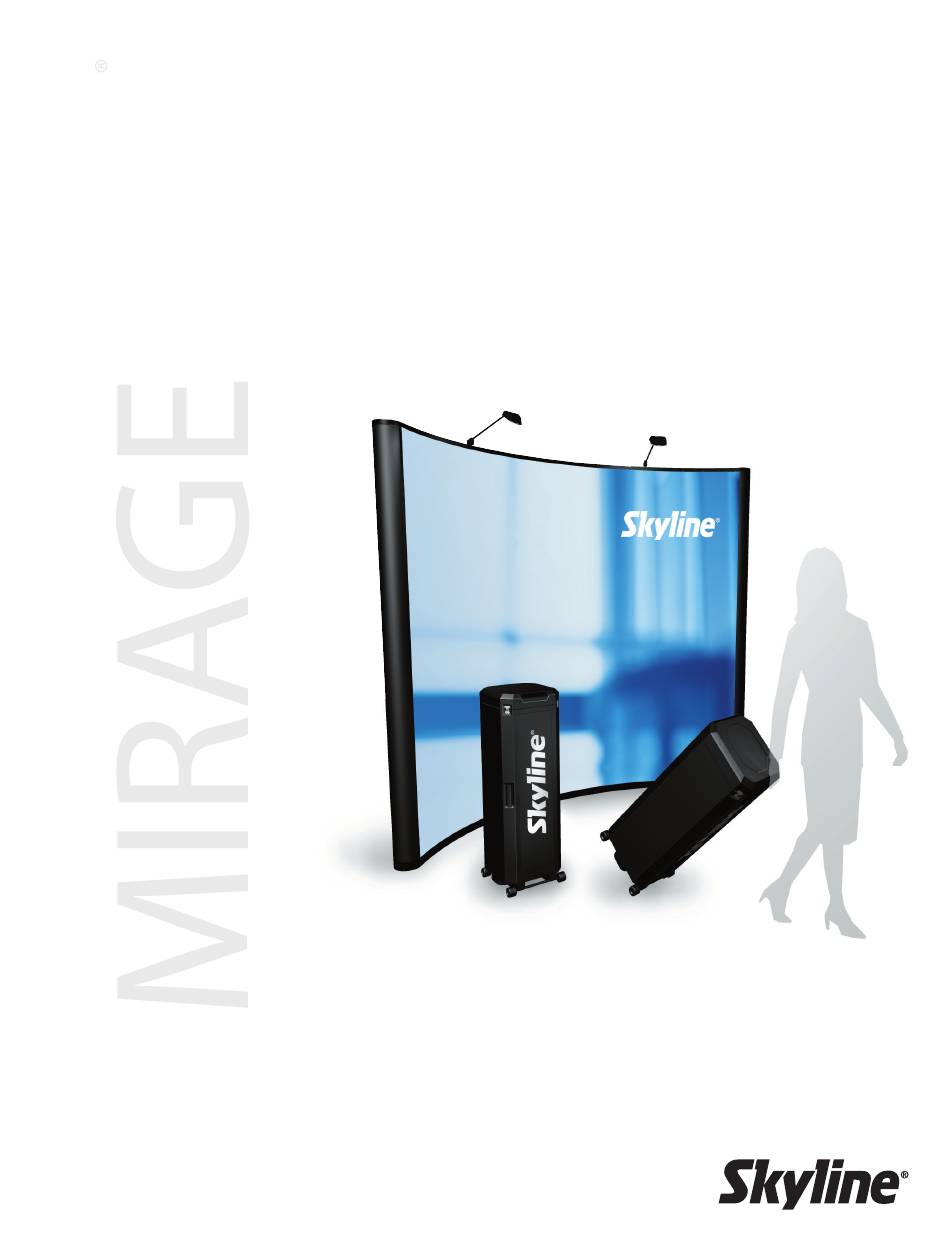

Skyline® Mirage®
Set-Up Instructions
©2015 Skyline Exhibits
Printed in U.S.A.
PN36547-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mirage Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SkyLine Mirage Series

  • Page 1 Skyline® Mirage® Set-Up Instructions www.skyline.com ©2015 Skyline Exhibits Printed in U.S.A. PN36547-A...
  • Page 2 ©2015 Skyline Exhibits Printed in U.S.A. PN36547-A...
  • Page 3: Table Of Contents

    If you have any questions about setting up your display or have lost components, call your local Skyline distributor. For the number of your distributor, or the distributor in a city in which you are exhibiting, call Skyline at 1-800-328-2725.
  • Page 4: Case Identification

    To open case lid, flip latches up and rotate counter-clockwise to loosen. Oval Case (Tabletop displays have only 1 case.) To disconnect, unbuckle straps. Tip cases forward to separate Cases connect for easy cases at base. transporting. ©2015 Skyline Exhibits Printed in U.S.A. PN36547-A...
  • Page 5: Frame Identification

    Frame Identification Frame Type Frame Number Mfg Date Mfg By MIRAGE ® is a registered trademark of Skyline Exhibits For warranty information contact your local Skyline Dealer. For help locating PN2401-H a dealer, call 1-800-328-2725 The warranty label attached to the frame shows what frame you have.
  • Page 6: Component Identification

    Shown below is the packaging scheme for a full-size Mirage® display. Your components may vary. Carefully follow the take-down steps on pages 28-30. Light package (optional) Channels Frame Protective bag Panels Core tray End panels Core Light cord Transporter case 0075 ©2015 Skyline Exhibits Printed in U.S.A. PN36547-A...
  • Page 7 Shown below is the packaging scheme for a full-size Mirage® display. Your components may vary. Carefully follow the take-down steps on pages 32-34. Case lid Frame Foam pad Light cord Channels Panels Protective bag Light package (optional) Channels Light Mirage Frame Header Tables Oval case 0076 ©2015 Skyline Exhibits Printed in U.S.A. PN36547-A...
  • Page 8: All Mirage Frames

    (about 2’ square). Grasp the rod in the center of the frame that has the attached label and lift to expand the frame. Blue hubs ©2015 Skyline Exhibits Printed in U.S.A. PN36547-A...
  • Page 9: Mirage Classic

    Mirage® Plus: The Mirage Plus frame does not have connectors. The frame will lock into place when it is fully expanded. Tilt frame forward to reach top connectors. ©2015 Skyline Exhibits Printed in U.S.A. PN36547-A...
  • Page 10: Channel Bars

    Slide top of next channel up onto same hub. Bottom 0020 Channel Bottom Connection Connect bottom of channel to hub of display frame. Mirage Adantage & Mirage Plus 0021 Mirage Classic ©2015 Skyline Exhibits Printed in U.S.A. PN36547-A...
  • Page 11: Panels

    Slowly release the panel to allow the panel to attach to the magnetics on the channel bars. After all panels have been mounted, check the alignment and realign if necessary. ©2015 Skyline Exhibits Printed in U.S.A. PN36547-A...
  • Page 12: End Panels

    Do not kink the panel. If a kink does occur, detach the magneted panel from the channel Panel notch and repeat the forming procedure. ©2015 Skyline Exhibits Printed in U.S.A. PN36547-A...
  • Page 13: Lights All Models

    Locking tab light onto the channel bar until it "clicks" into place. Rotate fixture 90º counter-clockwise. Repeat for remaining light(s). Halogen ©2015 Skyline Exhibits Printed in U.S.A. PN36547-A...
  • Page 14: Case Table - Transporter Case

    Place cover on table top. Attach end panels to magnetic End panel strip on table top cover. Attach front/back panels to mag- Front panel netic strip on table top cover and to magnetic strips on end panels. ©2015 Skyline Exhibits Printed in U.S.A. PN36547-A...
  • Page 15: Case Table - Oval Case

    Table top halves Connect table top halves and place on cases. Starting at the back of the case, Panel attach panel to magnetic strip on base of table top. Wrap around cases. ©2015 Skyline Exhibits Printed in U.S.A. PN36547-A...
  • Page 16: Additional Accessories

    Additional Accessories Additional accessories are available from your Skyline distributor and may be included with your display. Set-up instructions are included within the accessory container or as a label on the container itself. ©2015 Skyline Exhibits Printed in U.S.A. PN36547-A...
  • Page 17: Repackaging Both Cases

    Panels Panels Roll panels and place in case. Unroll panels until tight against wall of case. Oval Case Transporter Repeat with remaining front panels. Case Repeat with end panels. End panels Protective sheet ©2015 Skyline Exhibits Printed in U.S.A. PN36547-A...
  • Page 18 Fold channels and nest sections together as shown. Side view Top channel Bottom channel Oval Case Transporter Channel Place core into Case Transporter case. Insert channels in slots Core of case core. 0036 ©2015 Skyline Exhibits Printed in U.S.A. PN36547-A...
  • Page 19 All Mirage® Frames: Place frame in protective bag. The end of the frame with the connectors must go in first. Frame Place core into case. Oval Case Place frame into case core. Core Transporter Case ©2015 Skyline Exhibits Printed in U.S.A. PN36547-A...
  • Page 20: Warranty

    The warranty provides that they will be free from defects in material or workmanship for the period stated. Defects will be determined solely by SKYLINE and not by any representative or dealer of or for SKYLINE. Upon determination of defect, the sole obligation of SKYLINE will be to repair or replace defective part.
  • Page 21 Skyline Exhibits 3355 Discovery Road Eagan, MN 55121 U.S.A. 1-800-328-2725 ©2015 Skyline Exhibits www.skyline.com Printed in U.S.A. PN36547-A...
  • Page 22 Install Shelf Brackets in slots in Magnet Channels Single Shelf Literature Strip slides on Shelf edge Skyline Exhibits Skyline® and Mirage® are registered trademarks of 3355 Discovery Road Skyline Exhibits Eagan, MN 55121-2098 ©2002 Skyline Exhibits 1-800-328-2725 1/21/02...
  • Page 23 Unfold Hook both sides hinged bracket of hinged bracket into side slots of Mirage channels Hook Monitor Plate into Attach mounting plate Place graphic panels on frame notches of hinged bracket to back of monitor before mounting monitor...

This manual is also suitable for:

Mirage classicMirage advantageMirage plus
