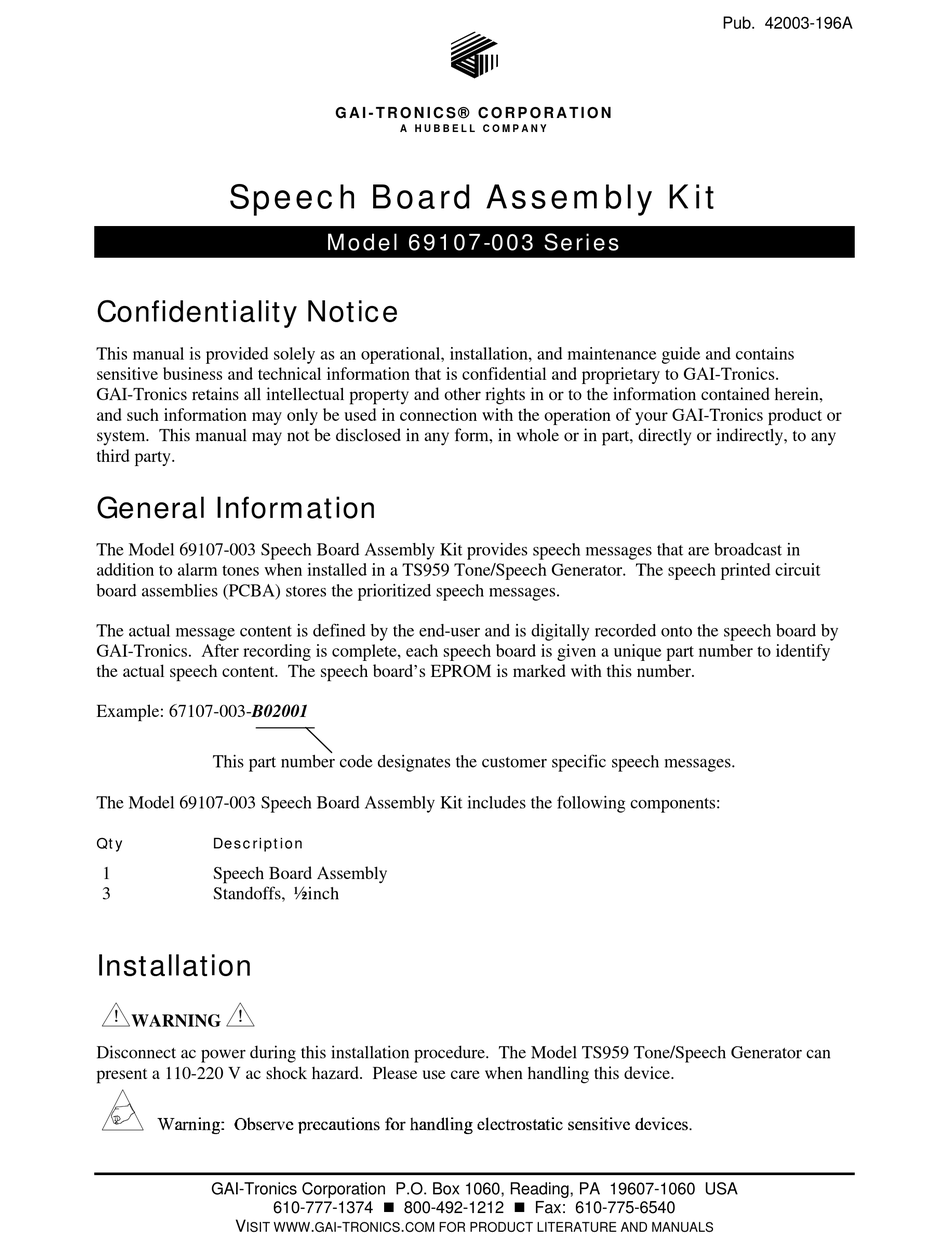

Speech Board Assembly Kit

Confidentiality Notice

This manual is provided solely as an operational, installation, and maintenance guide and contains

sensitive business and technical information that is confidential and proprietary to GAI-Tronics.

GAI-Tronics retains all intellectual property and other rights in or to the information contained herein,

and such information may only be used in connection with the operation of your GAI-Tronics product or

system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any

third party.

General Information

The Model 69107-003 Speech Board Assembly Kit provides speech messages that are broadcast in

addition to alarm tones when installed in a TS959 Tone/Speech Generator. The speech printed circuit

board assemblies (PCBA) stores the prioritized speech messages.

The actual message content is defined by the end-user and is digitally recorded onto the speech board by

GAI-Tronics. After recording is complete, each speech board is given a unique part number to identify

the actual speech content. The speech board's EPROM is marked with this number.

Example: 67107-003-B02001

This part number code designates the customer specific speech messages.

The Model 69107-003 Speech Board Assembly Kit includes the following components:

Qty

Description

Speech Board Assembly

Standoffs, ½ -inch

WARNING

Disconnect ac power during this installation procedure. The Model TS959 Tone/Speech Generator can

present a 110-220 V ac shock hazard. Please use care when handling this device.

GAI-Tronics Corporation P.O. Box 1060, Reading, PA 19607-1060 USA

610-777-1374 n 800-492-1212 n Fax: 610-775-6540

ISIT WWW

G A I - T R O N I C S ® C O R P O R A T I O N

A H U B B E L L C O M P A N Y

Model 69107-003 Series

GAI

TRONICS

COM FOR PRODUCT LITERATURE AND MANUALS

Pub. 42003-196A

Table of Contents

Do you have a question about the Gai-Tronics 69107-003 Series and is the answer not in the manual?

Page 1 Pub. 42003-196A G A I - T R O N I C S ® C O R P O R A T I O N A H U B B E L L C O M P A N Y Speech Board Assembly Kit Model 69107-003 Series Confidentiality Notice...
Page 2 Pub. 42003-196A 2 of 3 69107-003 S Page: ODEL ERIES PEECH OARD SSEMBLY Instructions Note: The 69107-003 Speech PCBA is not compatible with the TS958 Tone/Speech Generator. 1. Remove the ac power from the TS959. 2. Loosen the four captive screws from the front cover of the TS959. 3.
Page 3 Pub. 42003-196A 3 of 3 69107-003 S Page: ODEL ERIES PEECH OARD SSEMBLY Operation The TS959 Tone/Speech Generator is activated by user-supplied switches or relay contacts. The alarm activation inputs are priority encoded. If multiple alarms are activated, the TS959 will broadcast the alarm (tone and speech) having the highest priority.
