Smart Peephole DoorCam

(Model：MX-PC-01)

HKBN Home User Guide

v.20200702

Table of Contents

Need help?

Do you have a question about the MX-PC-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for HKBN MX-PC-01

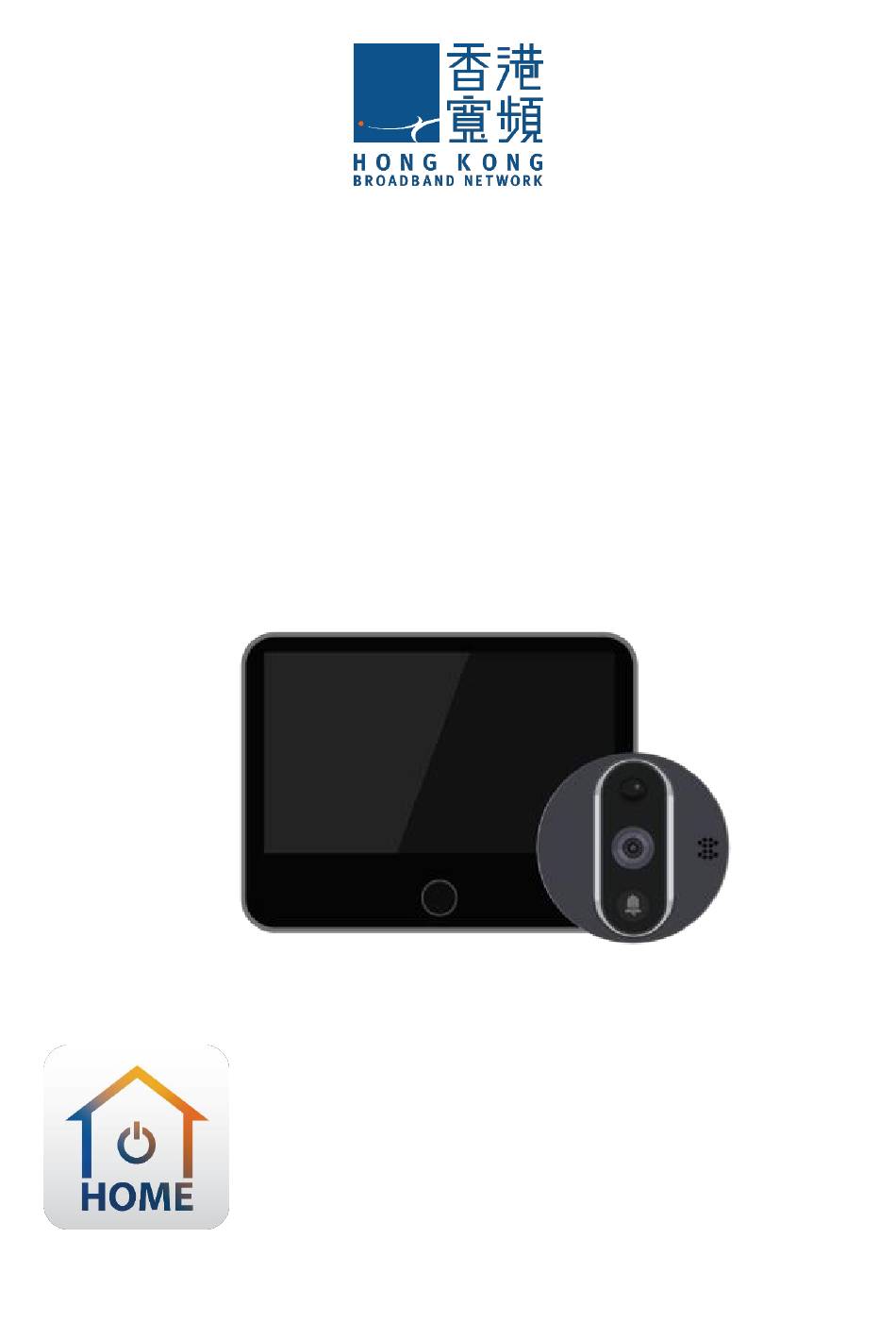

Page 1 Smart Peephole DoorCam (Model：MX-PC-01) HKBN Home User Guide v.20200702...
Page 2: Table Of Contents
Table of Contents Product Description ................3 Product Installation ................4 Download HKBN Home App ..............9 Add Device ..................10 Control Device .................. 15 Settings ..................... 22 FAQ ....................30 Product Specifications ............... 33 Product Maintenance and Warranty ..........34...
Page 3: Product Description
Product Description Name: Smart Peephole DoorCam Outdoor Camera Model: MX-PC-01 Motion Detector Camera Doorbell Button Indoor LCD Screen Speaker SD Card slot Micro USB Reset Button Power On/off Preview Button Package Contents Bracket × 1 Camera × 1 LCD Screen × 1 USB cable ×...
Page 4: Product Installation
Product Installation • Applicable Door Thickness Inside View Side View Outside View Applicable door thickness: 35mm - 110mm Applicable peephole: 14mm - 50mm When choosing bolts to install the outdoor camera, you must know your door’s thickness. • For the door thickness between 35mm - 65mm, choose 35mm short bolts •...
Page 5 Product Installation • Installation Diagram Self-adhesive Indoor LCD Screen Bracket Strips Door Outdoor Camera Bolts Ribbon Cable Preview Button...
Page 6 Product Installation • Step-by-Step Tutorials Select the bolts depending on the Peel off the protective film off the door thickness, then screw them adhesive strips. to the outdoor camera. Pass the ribbon cable through Tighten the outdoor camera. the door hole. Notice: make sure the position is Tip: It will be easier to wrap the correct before sticking it on the...
Page 7 Product Installation • Step-by-Step Tutorials Pass the cable through the Attach the bolts through the bracket indoor. bracket after lightly tugging up the ribbon cable. Notes: Don’t twist the ribbon cable. Align and screw the bolts to the Prepare indoor LCD screen. brackets and fasten.
Page 8 Product Installation • Step-by-Step Tutorials Slightly press the cable head into Suspend the LCD monitor on the the port as picture shown. bracket from top to bottom. Screw the bolt on the bottom to Installation completed. Turn the fix the LCD screen. power button on under the LCD display, then press the preview button to turn it on.
Page 9: Download Hkbn Home App
Download HKBN Home App Search and download “HKBN Home” APP in Apple App Store OR Google Play Store Scan the QR code below...
Page 10: Add Device
Add Device You must first connect your phone to a 2.4GHz Wi-Fi network when adding device; Tap “Devices” on the bottom menu (image 1); Tap “Add Device” button OR “+” icon at top right corner if you already have paired device (image 2); (image 2) (image 1)
Page 11 Add Device Tap “Smart Peephole DoorCam” from left menu “Smart Camera” (image 3); Hold the preview button on the LCD display for 5 seconds to enable QR code scanning mode, and then tap “LCD Display is in Scanning Mode” (image (image 4) (image 3)
Page 12 Add Device Select Wi-Fi network and enter password*, and then tap “Next” (image Follow the instructions shown on screen. To scan the QR code by peephole camera and keep it 15cm to 20cm away from the mobile phone (image 6); *Important tips: Wi-Fi requirement ⚫...
Page 13 Add Device Scan the QR code by facing it to the peephole camera, you should then hear a “Ding” sound from the LCD display. Click “I heard a prompt” if you heard it (image 7); The App will connect with your peephole camera, please allow few minutes for it to pair (image 8);...
Page 14 Add Device After device added successfully, you can change the device name and assign it to the located room. (You can also change the device name and room location later in device setting page and room management page.) And you can find the Smart Peephole DoorCam in the “Device” page.
Page 15: Control Device
Control Device • Main Control Panel Setting Page Time Watermark Wi-Fi Signal Strength (%) Video Quality Full Screen Button Mute Button Battery Level Take Video Button Speak Button Snapshot Button Playback Video...
Page 16 If there is visitor pressed the doorbell, your registered account for the Smart Peephole DoorCam will send you a push notification*. Tap on this message will bring you to the live view of camera in HKBN Home App (*User need to enable and authorize push notification function in Settings.);...
Page 17 Control Device • Speak function Tap “Speak” button enable communication to the people from camera side; To end the conversation, tap “Speak” button again.
Page 18 Control Device • Record function Tap “Record” button to start recording from the live streaming; To end the recording tap the “Record” button again. (Recorded clips will be saved to your mobile photo album; this clip will NOT be saved in memory card.)
Page 19 Control Device • Snapshot function Tap “Snapshot” button to take photo from the live streaming; The photo will be saved to your mobile photo album (Photo will not be saved to memory card). Tap “OK” to complete.
Page 20 Control Device • Playback function In playback control panel, you can find all playback videos recorded today. If you would like to see recorded videos in the past, tap “Date” on the top right corner and tap to select the available date.
Page 21 Control Device • Playback function (Save screenshot/video to mobile phone) Save Screenshot: In playback control panel, you can tap to save the screenshot from the playback video to your mobile phone album. Save Video: In playback control panel, you can tap to start and stop recording the video from the playback video to your mobile phone album.
Page 22: Settings
Settings • Page layout Device Name (Tap to change) Device ID Wi-Fi Signal Strength IP Address Status Indicator IR Night Vision Motion Detection Settings Memory Card Information/ Enable/Disable Format Option Memory Card Recording Power Source Battery Level Firmware Information Remove Device Button...
Page 23 Settings • Status Indicator When turn on the status indicator function, the LED light in the bell button will be automatically turned on when motion detected. In Settings, tap to enable this function (blue), tap again to disable.
Page 24 Settings • IR Night Vision Under a dim environment, you can enable Infrared Night Vision (work best within 2-meter distance) to have better sight quality in the dark. Below are different available settings: Auto : Camera will detect the environment and IR Night Vision will be turned on automatically.
Page 25 Settings • Motion Detection When you enable motion detection function, you can receive push notification alert. (To receive push notification, you need to enable and authorize push notification function in App settings)
Page 26 Settings • Motion Detection Below are the options for motion detection and its function: Below are the motion detected distance under normal circumstances: (result will be affected by temperature and light) • High Sensitivity: around • Low Sensitivity: around • Off (Disable motion detection function) *The above measurement is based on normal temperature...
Page 27 All snapshots shown in “Alarm” at Message Center can be found and read in memory card by PC. ⚫ All videos saved by motion detection are encrypted and it cannot be read directly by PC. User need to play it by HKBN Home App using Playback function in Smart Peephole DoorCam control panel.
Page 28 Settings • Check for Firmware Upgrade Tap “Check for Firmware Upgrade”, you can see current firmware version and available upgrade version if any. Tap “Upgrade” to start firmware upgrade. Notice for Firmware Upgrade: ⚫ Suggest connecting to power OR device at least have 50% of battery level. To avoid running out of power during firmware upgrade.
Page 29 Settings • Remove Device In device settings page, tap “Remove Device” ; Tap “OK” to confirm and remove device from your account.
Page 30: Faq
How to reset and add device? Step 1: Remove device in the “HKBN Home” App; Step 2: Tap “Devices” on the bottom menu; then tap “Add Device” button OR “+” icon at top right corner if you already have paired device;...
Page 31 Screen become white suddenly Please turn off the device and restart again. Screen become black suddenly Please charge the battery for at least an hour, then restart the device. Screen keep sleeping, no display while doorbell is pressed. Step 1: Ensure device is turned on; Step 2: Ensure the ribbon cable is connected to display tightly;...
Page 32 name (SSID), it would cause a mix up in the security camera. Problems when viewing the live streaming video If you can hear it but there is no video footage, please check the network and the router or try reconnecting; Confirm whether the mobile phone network is stable (can watch online videos smoothly).
Page 33: Product Specifications
Product Specifications • Certifications: CE, RoHS • Compatible with door thickness: 35 – 110mm; peephole 14 – 50mm Indoor LCD Screen • Display：4.3”LCD • Wi-Fi Frequency: 2.4GHz (Not Support 5GHz) • Wi-Fi Protocol: IEEE 802.11b/g/n • Battery: 5000mAh • Charger: DC5V, 1A Micro USB •...
Page 34: Product Maintenance And Warranty
Product Maintenance and Warranty For the enquiry of product maintenance and warranty, please contact the product distributor/ manufacturer below: Maxisense IoTech Limited • Service Center：Room 1010, Peninsula Tower, 538 Castle Peak Road, Cheung Sha Wan, Kowloon, Hong Kong • Tel.： (852) 3500 8222 •...
