Summary of Contents for Gilras GRT-700

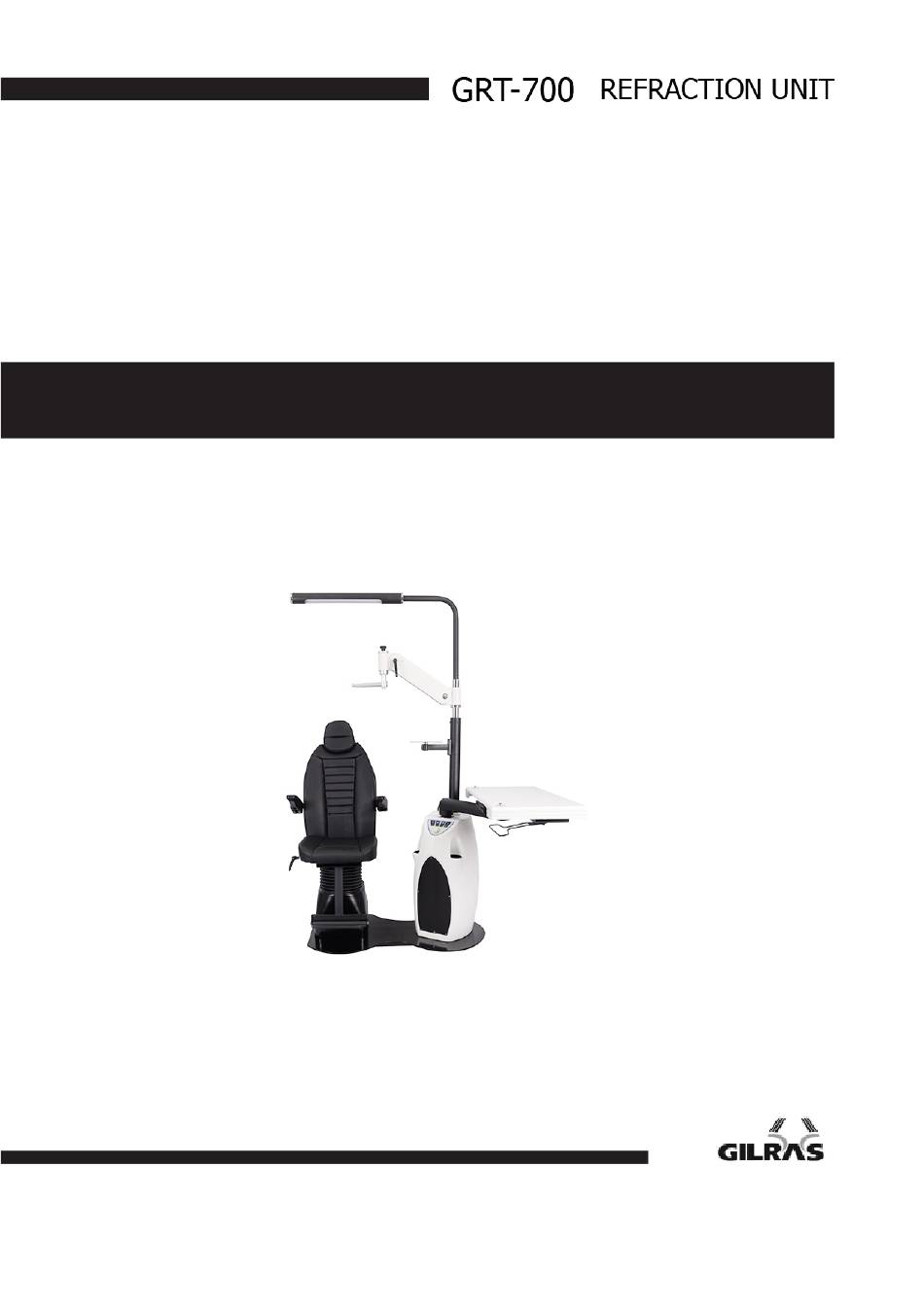

- Page 1 USER'S MANUAL...
- Page 2 Product Profile Thanks to purchase and use the combined table made by our company. The combined table is a new type of product that brings in advanced design and manufacturing technology of abroads, taking the simple, fashional, practical as starting point. It has stable performance, comprehensive function and the appearance is refinement and novelty, the structure is firm, light and handy.
- Page 3 Matters Needing Attention Caution! 1. Before assembling and using the instrument, you must read this manual carefully. 2. Before using the instrument, you should install the ground of the city power outlet reliably. 3. When assemble, move or disassemble the instrument, don’t thump, strike or take the board.
-
Page 4: Table Of Contents
CONTENTS 1) Technical Specification…………………………………1 2) Product Components Diagram………………………….2 3) Package List…………………………………………….3 4) Assembly Process……………………………………….6 5) Operating Manual……………………………………….8 6) Possible Failure And Repair…………………………….9 7) Electric Principle Map…………………………………10 8) Electric System Map…………………………………...11 This document is supplied according to the exist products. We reserve the right to make changes or take back this document anytime without prior notice. -
Page 5: Technical Specification
1) Technical Specifications Mechanical Parameters 1. Angle of rotation for rocker: ±30° 2. Angle of rotation for table: 90° Table size: 840mm×405mm 3. Lifting height for chair: 150mm~200mm Loading for chair: 70kg~150kg Electrical Parameters 1. Input voltage: 110V/220V AC 50Hz~60Hz 2. -
Page 6: Product Components Diagram
2) Product Components Diagram 1.lamp 9. pedal 2. rocker locker 10. horizontal sliding rod 3.rocker 11. projector arm 4. projector tray 12. chair 5. upright post 13. operating board (big) 6. control panel 14. base 7. tools boxes 8. main box... - Page 7 3) Packing List Figure Name mainframe chair rocker rocker locker sliding cover horizontal sliding rod...
- Page 8 bend lamp tube lamp projector bracket upright post power line computer connecting line reset switch...
- Page 9 fuse wrench of size 17 hexagon spanners decorative ring certification,instruction manual...
-
Page 10: Assembly Process
4) Assembly Process 1. First of all, open the box and read the instruction manual carefully, then check the parts and tools. 2. Put the mainframe on a suitable place, adjust the 4 screws on the base to make sure that the mainframe is stable. Notice particularly: When assemble or move the instrument, don’t take the operating board. - Page 11 5. Install the rocker Take out the rocker and hang it onto the upright post, stick the sliding cover into the hole on the top of the rocker, then install the horizontal sliding rod and tighten it with the screw. At last, fix the rocker locker to the rocker, make sure that the rocker can run softly and comfortably.
- Page 12 7. Install the projector bracket Align the projector bend arm and the holes on the upright post, then fix the bend arm to the upright post with screws. 8. Fix the projector onto the tray with prepared screws and plug in. 9.
-
Page 13: Operating Manual
5) Operating Manual 1. Let the subject sit on the chair, power on the instrument and press the [power] key on the panel, the instrument will stand by 2. Loose the locker of the rocker, adjust the eyesight detector to a suitable position, then lock the rocker 3. -
Page 14: Possible Failure And Repair
6) Possible Failure And Repair Failures Possible reasons Repair suggestions The fuse is blown Check and change The indicator light has no The plug is not inserted well Insert the plug well light when power on The outlet has no power Test and confirm The indicator light has light The plug of the control panel...
