Rx Systems V2 Refurbish Manual

Medication carts
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Refurbish Manual
Medication Carts
Version 2 & 3
tsr@rxsystems.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rx Systems V2

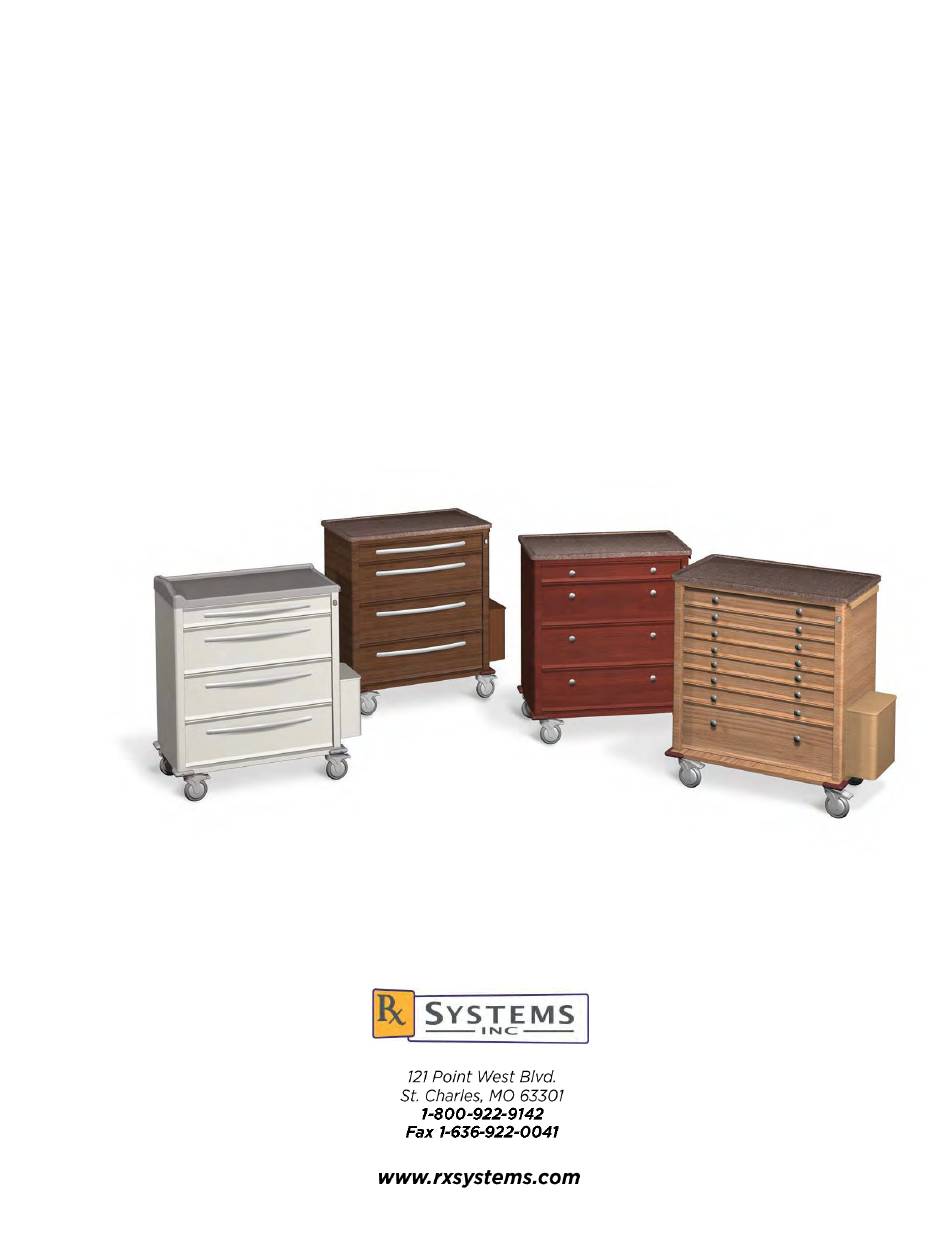

  • Page 1 Refurbish Manual Medication Carts Version 2 & 3 tsr@rxsystems.com...

  • Page 2: Table Of Contents

    & v3 Drawer Removal ..................................2 v2 & v3 Drawer Installation ................................3 v3 Drawer Front Removal & Installation ..........................4 v2 Slide & Side Shelf Removal & Installation ........................5-6 v3 Slide Removal & Installation ..............................7 v2 & v3 Drawer Slides ..................................8 v3 Side Shelf Removal &...

  • Page 3: V2 & V3 Drawer Removal

    Drawer Removal – v2 & v3 Tools Needed: None 1. Lock front casters by pushing caster levers down with the front of your foot. 2. Fully extend the drawer to be removed. 3. Stand in front of the drawer. Locate the release tabs on the slides. Push the right tab up and the left tab down.

  • Page 4: V2 & V3 Drawer Installation

    Drawer Installation – v2 & v3 Tools Needed: None 1. Extend slides out of the cart. IMPORTANT: Move the ball bearings to the very front of the slide. The above photo is incorrect! The ball bearing section is NOT at the front.

  • Page 5: V3 Drawer Front Removal & Installation

    Drawer Front Removal & Installation – v3 Tools Needed: Phillips Head Screw Driver 1. Open the drawer. 2. Remove the handle by removing the screws on the inside front of the drawer. Save/set aside both handle and screws. If you have two (2) knob type handles, they must both be removed.

  • Page 6: V2 Slide & Side Shelf Removal & Installation

    Slide Removal and Installation – v2 Tools Needed: Phillips Screwdriver 1. Remove drawer. 2. Move the slide out until the front screw is exposed. Remove the screw by turning counterclockwise. Let the front of the slide rest in the down position when the screw is removed.
  • Page 7 Divider Slides Q/E-P Series. Used in carts before December 2012. 2273 Medication Cart Refurbish Manual Page 6...

  • Page 8: V3 Slide Removal & Installation

    Slide Removal and Installation – v3 Tools Needed: Phillips Screwdriver 1. Remove the drawer. (see page 2) 2. Move the slide out until the back screw is exposed. 3. Remove the screw by turning counterclockwise. 4. Let the rear of the slide rest in the down position when the screw is removed.

  • Page 9: V2 & V3 Drawer Slides

    Drawer Slides There are two different types of drawer slides which are pictured below: Auto Close v3 Cart Slide, Modular. It can be identified by the cream color self-closing device 2173 at the rear of the slide. Medication Cart Refurbish Manual Page 8...

  • Page 10: V3 Side Shelf Removal & Installation

    Side Shelf Removal – v3 Tools Needed: None 1. Remove the top drawer. (see Page 2) (**Note: you may need to remove the 2 drawer if you need more space to work) 2. Pull out the side shelf until it stops. 3.

  • Page 11: V2 & V3 Caster Removal & Installation

    Caster Removal and Installation v2 & v3 Tools Needed: 3/8” or adjustable wrench 1. Remove all the Drawers. (see pg2) 2. With two or more people, carefully lay the cart on its back. 3. Replace the proper caster in the proper position.

  • Page 12: Lock Core Removal & Installation

    Lock Core Removal & Installation – v2 & v3 Tools Needed: 2412QP Control Key 1. Insert the 2412QP Control Key into the lock. 2. Turn clockwise approximately 1/8 of a turn and pull. 3. To install a new core, reverse the above process.

  • Page 13: V2 Cabinet Lock Removal

    Cabinet Lock Body Removal – v2 Tools Needed: Pliers & Screwdriver 1. Remove top 4” drawer (see Page 2). 2. Lock the cabinet by pushing the lock in until you feel it latch. 3. Using pliers, remove the small black “C” clip from the push bar on the lock.
  • Page 14 7. Gently insert the flat blade of the screwdriver in- between the cart and the plastic ring. Twist the screwdriver so it gently pops the ring loose and then remove it by hand. 8. Place finger in lock chamber and remove spring. Medication Cart Refurbish Manual Page 13...

  • Page 15: V2 Lock Assembly (Rx Systems Pics)

    Version 2 Lock Assembly Medication Cart Refurbish Manual Page 14...

  • Page 16: V2 Lock Bar Removal

    Lock Bar Removal – v2 Tools Needed: Phillips Screwdriver 1. Remove all drawers. (pg 2) 2. Remove Cabinet Lock. (pg 6-7) 3. Remove slides on the right hand side, facing the cart front. (pg 4) 4. Remove lock bar spring.

  • Page 17: V3 Lock Bar Removal

    Lock Bar Removal – v3 Tools Needed: Phillips Screwdriver 1. Remove all drawers. (pg 2) 2. Remove Cabinet Lock. (pg 9) 3. Remove slides on the right hand side, facing the cart front. (pg 5) 4. Remove both the Lock Bar Guides supporting the Lock Bar, by removing two screws in each one.
  • Page 18 Lock Bar Removal – v3 cont. Tools Needed: Phillips Screwdriver 7. Remove the center screw in the Lock Rail and Lock Bar. 8. Remove the Lock Bar and Lock Rail Assembly, by pulling the front side of the Lock Bar out past the edge of the upper Lock Plate.

  • Page 19: V3 Cabinet Lock Removal

    Cabinet Lock Body Removal – v3 Tools Needed: Phillips Screwdriver 1. Remove top 4” drawer (see Page 2). 2. Lock the cabinet by pushing the lock in until you feel it latch. 3. Remove the two (2) small screws in the Lock Link. 4.

  • Page 20: V3 Cabinet Lock Installation

    Cabinet Lock Body Installation – v3 Tools Needed: Phillips Screwdriver 1. Snap the plastic ring onto the front of the lock chamber, or make sure the existing one is secure. 2. Insert the lock assembly into the lock chamber, with the brass button on the top.
  • Page 21 Cabinet Lock Body Installation – v3 cont. Tools Needed: Phillips Screwdriver 4. Line up the holes in the Lock Link with the matching holes in the Lock Bar. 5. Insert two (2) Pan Head Phillips Screws 8-32 x 3/8 Medication Cart Refurbish Manual Page 20...

  • Page 22: Replacing Locking Components On A V3 Med Cart

    Replacing Locking Components – v3 This process should take less than 5 minutes per cart. As you will see below, this procedure is very simple and should solve most issues that may arise with your locking system on your v3 med cart. 1.
  • Page 23 You can now re-install the drawer slide and reinstall the drawer into the med cart and the lock should be fully functional again. Thank you. Medication Cart Refurbish Manual Page 22...

  • Page 24: Narcotics Box Removal & Installation

    3. Using the ¼-20 screws provided, screw the narc box into the back of the drawer to secure it to the cart. Narc Box Hinge Removal & Installation – v2 & v3 Tools Needed: Small Adjustable Wrench 1. Remove the eight nuts on the hinge.

  • Page 25: Narcotics Box Hinge Removal & Installation

    Narc Box / Drawer Lock Removal & Install – v2 & v3 Tools Needed: Phillips Screwdriver 1. Remove four screws. 2. Remove the lock. 3. Reverse the process to install the lock. Medication Cart Refurbish Manual Page 24...

  • Page 26: Panel Removal & Installation

    Panel Removal & Installation – v3 Tools Needed: Phillips Screwdriver 4. Remove all drawers (see pg 2) 2. Remove corner bumpers (four screws each) 3. Completely remove cabinet lock (pg 9) 4. Remove the side shelf (see pg 6) 5. Remove screws from panels. Go through the holes in the frame to remove screws located in the back of the panels.

  • Page 27: V3 Wood Top Replacement

    Wood Top Replacement – v3 Tools Needed: Screwdriver 1. Remove at least top two drawers from the cart. (see pg 2) NOTE: you may need to remove the additional drawer(s) if you need more space to work. 2. Remove the side shelf 3.

  • Page 28: Emar Installation - Cart Top/Rx Version

    EMAR Installation – Cart Top / Rx v3 Wood Top If you have a wood top with a plug in the top, remove the plug and use the v3 Guide. Otherwise use the v2 Guide. Medication Cart Refurbish Manual Page 27...
  • Page 29 Medication Cart Refurbish Manual Page 28...
  • Page 30 Medication Cart Refurbish Manual Page 29...
  • Page 31 Medication Cart Refurbish Manual Page 30...
  • Page 32 Laptop Stand Mounting Location – v2 Medication Cart Refurbish Manual Page 31...
  • Page 33 Medication Cart Refurbish Manual Page 32...
  • Page 34 Note: The mounting position is simply a suggested placement. You can mount the assembly anywhere you like. Medication Cart Refurbish Manual Page 33...
  • Page 35 EMAR Installation – Cart Top / Rx v2 Medication Cart Refurbish Manual Page 34...
  • Page 36 Medication Cart Refurbish Manual Page 35...

  • Page 37: Avk Installation (Threaded Insert For Screws)

    AVK Installation – v2 Tools Needed: AVK Tool AVK Tool Part Names Thumb Screw AVK Tool • • Mandrel (left-handed thread – screws in • counter-clockwise) Nose Piece (left-handed thread – screws in • counter-clockwise) • Wrench • • 1. Screw the Mandrel large-end first, counter-clockwise Assemble AVK Tool: into the AVK Tool.
  • Page 38 3. Screw the Nose Piece over the Mandrel into the AVK Tool counter clockwise and tighten. 4. Load an AVK large end first screwing it on the mandrel clock wise. Installing the AVK On the left is an AVK that has been compressed by the AVK tool. Notice the rim it creates to compress tightly on to the frame of the cart.
  • Page 39 5. If the AVK is loose. Attach the AVK tool and squeeze harder until it is securely attached. (photo is of properly installed AVK) Medication Cart Refurbish Manual Page 38...

  • Page 40: V2 Locking Pin Installation

    Locking Pin Installation – v2 Tools Needed: Screwdriver 1. Parts Needed: a. Locking Pin b. E Clips 2. Push one E Clip into the engraved slot on the short side of the locking pin. 3. Slide the longer portion of the Locking Pin into the back of the Locking Bar.
  • Page 41 6. Use a screwdriver to leverage force on the side of the E Clip to push it into place. 7. To remove the Locking Pin place the corner of a screwdriver blade in the E Clip and pull it out of place.

  • Page 42: V3 Locking Pin Installation

    Locking Pin Installation – v3 Tools Needed: Screwdriver 1. Parts Needed: a. Locking Pin, one (refer to parts list for correct part number) 2. Screw the new lock pin into the appropriate pre-threaded hole in the lock rail. Medication Cart Refurbish Manual Page 41...

  • Page 43: V2 Lock Ramp Installation

    Lock Ramp Installation – v2 Tools Needed: Philips Screwdriver 1. Parts required: M14044 Drawer Lock Ramp, RX Cart (1) 41-PSMS-6-50 Pan HD SMS 6 x 1/2 Type A (2) • • 2. Lock ramp is to be mounted on the outer surface of the drawer on LEFT side of the drawer using the two holes shown.
