Locker Installation & Assembly Instructions
Cora Bike Rack - Vertical Bike Locker (CBLV-LD)
Cora - Vertical Single Bike
Locker

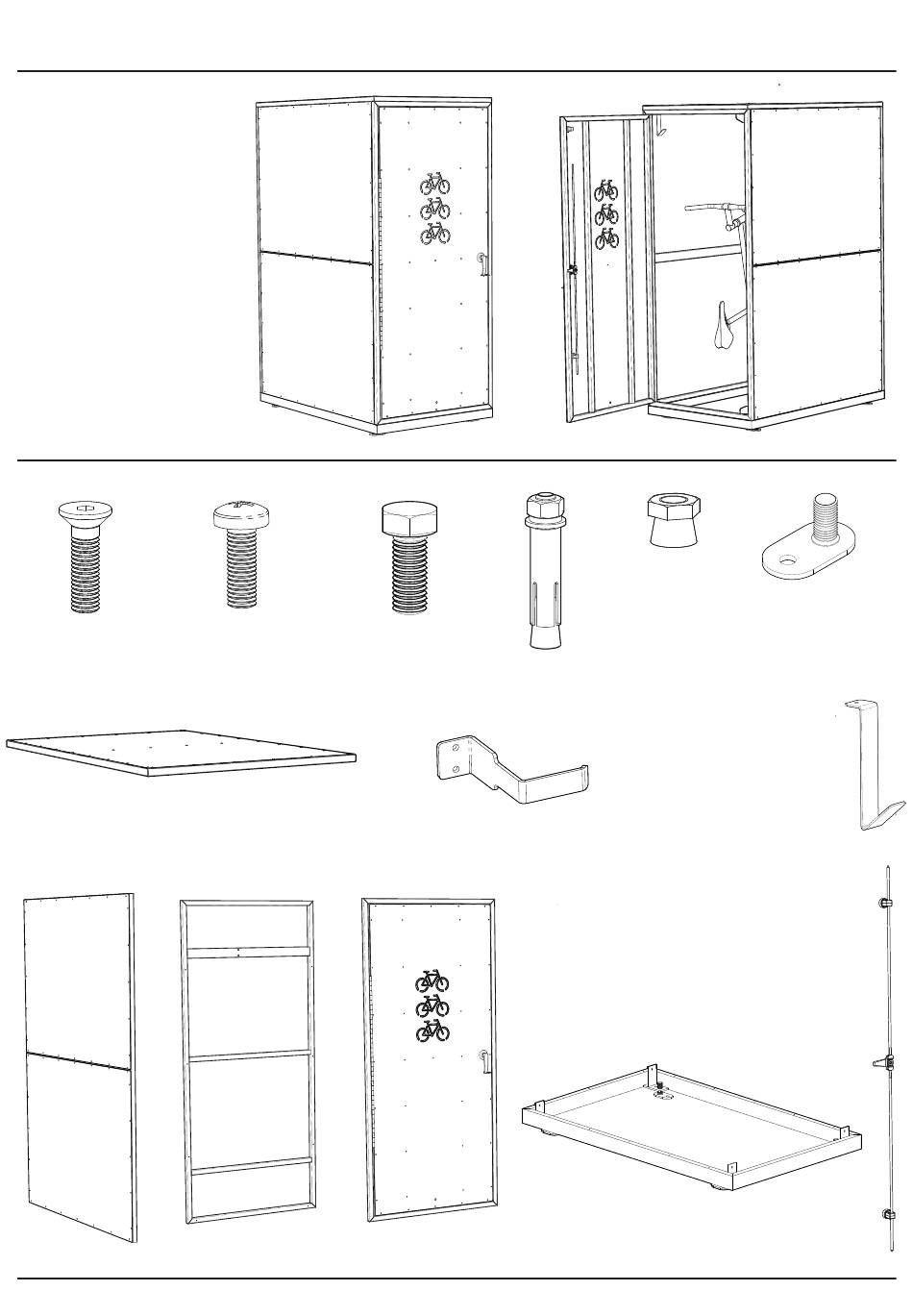

Components in Vertical Bike Locker used in assembly
M5x35 CSK head
M5x35 Pan head
fasteners
(x3)
Locker rear panel
Locker side panels
(x1 for left side,
x1 for right side)
Cora Bike Rack - Australia's Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878
fasteners
(x45)
Locker Roof
(X1 per locker)
frame assembly
(X1 per locker)
M8X20 Hex
Head Bolts
M10 Anchor Bolts
(x2)
(X4)
Locker door frame
assembly
(X1 per locker)
M10 Shear nuts
(X4)
(x4 per base frame, may
Wheel hook
(x1 per locker)
locking mechanism
Locker base frame
(x1 per locker, may or may not
have levelling feet installed)
Adjustable levelling foot
already be installed in
base frame)
Helmet/ bag
hook
(x1 per locker)
Three point
assembly and
plastic mounts
Rev 2.00 Feb 2020 ©
Advertisement
Table of Contents
Summary of Contents for Cora Bike Rack CBLV-LD
- Page 1 Locker base frame (x1 per locker, may or may not have levelling feet installed) Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 2.00 Feb 2020 ©...
- Page 2 NOTE: Ensure all feet contact with ground firmly after levelling, frame cannot rock or lean at any corner, or when fastened with anchor bolts, frame will be warped and not level and will effect assembly of locker. Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 2.00 Feb 2020 ©...
- Page 3 • After anchor bolt nut is tightened fully, install supplied shear nuts (x4 one per anchor bolt) onto top of thread • Tighten shear nuts until head snaps off Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 2.00 Feb 2020 ©...
- Page 4 Screw point location to fix rear panel assembly to base frame Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 2.00 Feb 2020 ©...
- Page 5 • Screw through bottom frame of side panels to base frame and through end frame of side panels to both door and rear panel assembly frames. Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 2.00 Feb 2020 ©...
- Page 6 • Ensure rod guides are positioned to allow lock rods to travel freely without hitting inside or edges of door Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 2.00 Feb 2020 ©...
- Page 7 13. Install bag/ helmet hook to inside top of locker (if supplied) Installation of the Cora Vertical locker is complete PH 1800 249 878 sales@cora.com.au www.cora.com.au Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 2.00 Feb 2020 ©...
