Electronics Logic SP-16 Manual

Microprocessor temperature controller for central heating boilers and hot service water boilers
Hide thumbs

Advertisement

Quick Links

Download this manual

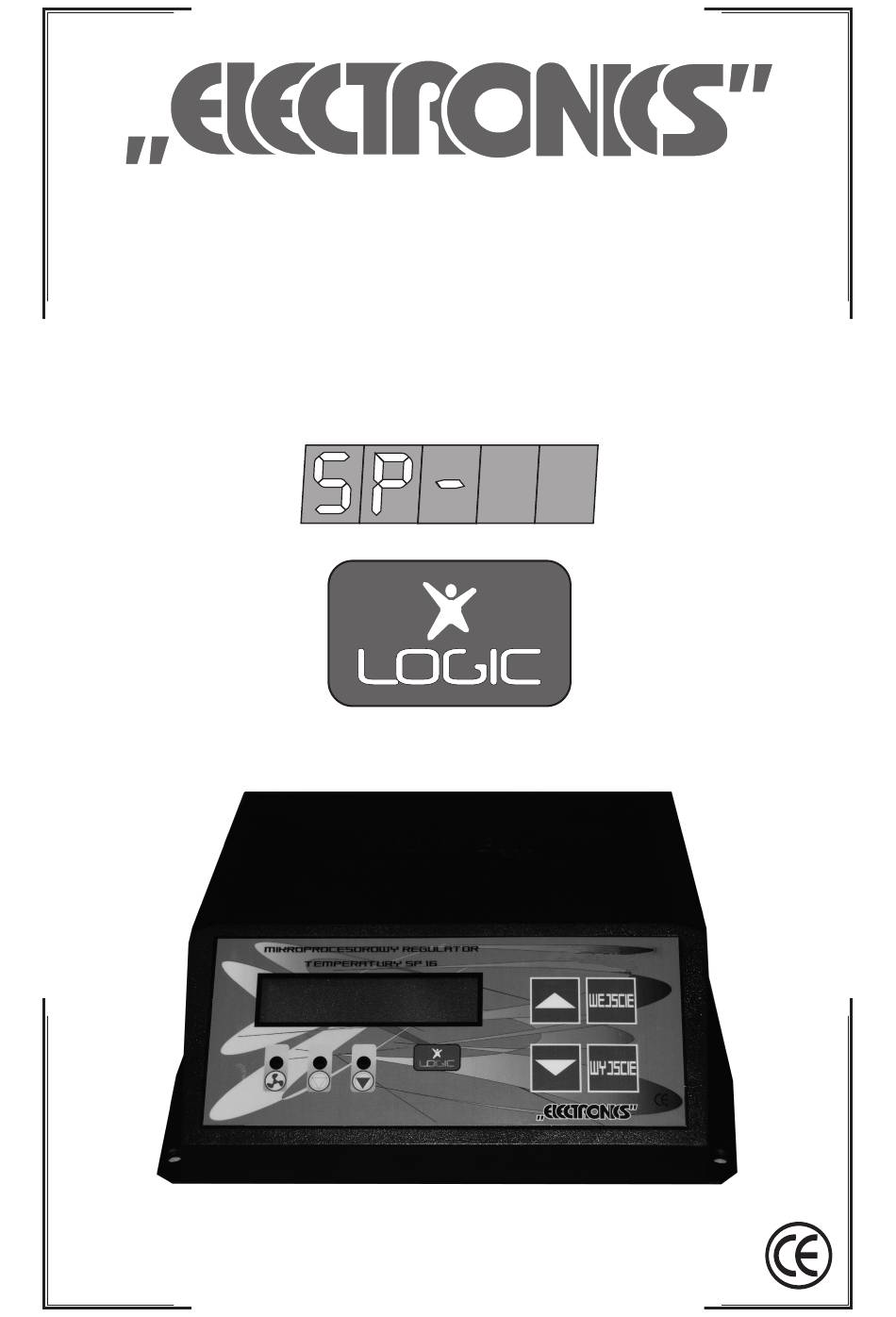

MICROPROCESSOR TEMPERATURE
CONTROLLER
FOR CENTRAL HEATING BOILERS
AND HOT SERVICE WATER BOILERS
16

Advertisement

loading

Summary of Contents for Electronics Logic SP-16

  • Page 1 MICROPROCESSOR TEMPERATURE CONTROLLER FOR CENTRAL HEATING BOILERS AND HOT SERVICE WATER BOILERS...
  • Page 2 SP 16 Manual 1.Front panel description Controller view with marked functions 1. Turning on (hold ENTER button for 2 sec.). 2. LCD display. 3. Indicator lights. 4. Device control buttons. 5. Blower start up indicator. 6. Central heating pump start up indicator. 7.
  • Page 3 SP 16 Manual 2. Application Controller is equipped with innovative, intelligent Logic control system. This system consists in automatic adjustment of boiler power to current operating conditions. All regulation process is based on measurement of central heating temperature. Due to innovative solution enabling optimal fuel combustion in the boiler, it has the effect of reduction of harmful oxides emission into the atmosphere.
  • Page 4 SP 16 Manual FUNCTIONS - MANUAL OPERATION function is to fire up the Manual operation boiler, it enables independent start up of controller and blower outputs. Blower Pressing ENTER button turns on one of the outputs. With ( ) and ( ) you change output to be turned on or off.

  • Page 5: Installation Menu

    SP 16 Manual - MANUFACTURER SETTINGS controller is MANUF. SETTINGS equipped with programmed settings, you may return to them at any time. However, you should MANUF. SETTINGS remember that all personal settings will be lost. - END OF WORK turns the controller off. To turn END OF WORK It on again press and hold ENTER button.
  • Page 6 SP 16 Manual - MAX. BLOWER POWER this function is to limit MAX. BLOWER POW. maximum blower power. Maximum power should be limited when used fuel (pellet, oat) is too light MAX. BLOWER POW. and is blown around in combustion chamber due 99 % to huge fan power.
  • Page 7 SP 16 Manual 6. Error messages Error 0 - Device failure. Error 1 - EEPROM memory failure. Error 2 - CH temperature sensor failure. Error 3 - HSW temperature sensor failure. Error 6 - Too high CH temperature. Error 8 - Too high HSW temperature. Error 9 - No fuel.
  • Page 8 Warranty card 10. Warranty card 1. Manufacturer guarantees good quality of equipment, guarantee and post- guarantee services. 2. Manufacturer grants the guarantee of failure-free controller operation for the period of 24 month from purchase date. 3. Failures and damages revealed during warranty period shall be eliminated immediately, free of charge within not longer than 14 days from the day of delivering the device for repair at manufacturer location.
  • Page 9 Notatki...
  • Page 10 Notatki...
  • Page 11 Warranty card Data Zakres reklamacji Podpis i pieczatka ............... Data sprzeda¿y ..........................Podpis Piecz¹tka punktu sprzeda¿y...
  • Page 12 Producent: Zak³ad Elektroniczny „Electronics” Tadeusz Wilgocki ul. Moczyd³o 10a, 30-698 Kraków tel. 012 650 47 90, fax 012 650 47 91 e-mail: biuro@electronics.net.pl...
