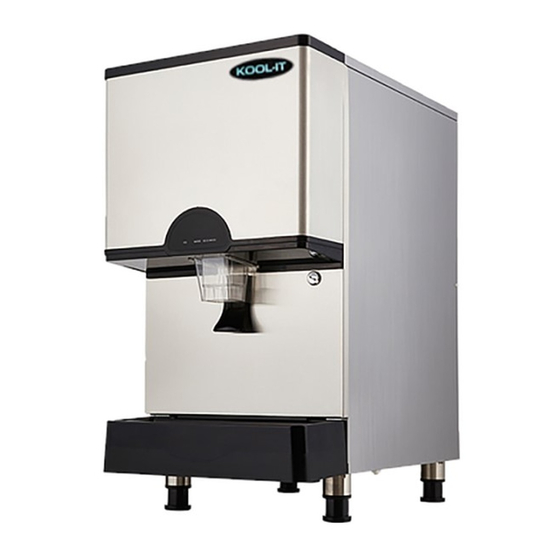

Kool-It KND300A Instruction Manual
  1. Manuals
  2. Brands
  3. Kool-It Manuals
  4. Ice Maker
  5. KND300A
  6. Instruction manual

Kool-It KND300A Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

※ Please check voltage supply before use.
※ This product is for indoor use only and cannot be installed outside.
※ Appearance and design, color, and parts are subject to change without notice.
※ Please read safety instructions before use.
※ Please clean and disinfect this product every day after use.
1.Safety Precautions....................................................................2-4
2.Product Specifications ...........................................................5
3.Appearance and Size...............................................................6
4.How to install............................................................................7
Installation Area.............................................................................8-9
Panel disassembly method....................................................10
Water supply and drainage connection.............................11-12
Grounding..................................................................................13
5.Starting the product.................................................................13
Button operation......................................................................15
Drainage functions (forced, automatic, water)...................17
Stop switch...............................................................................18
6. Precautions to prevent freezing(winterizing).......................19
7.Maintenance, repair and disinfection....................................20
Maintenance schedule.............................................................21
How to clean and disinfect......................................................25-29
8 .Error codes...................................................................................30
9. Before Requesting Service........................................................31
10.Warranty........................................................................................33
- Always keep this instruction manual in an accessible and visible place.
MODEL: KND300A
INSTRUCTION MANUAL
Contents
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KND300A and is the answer not in the manual?

Questions and answers

Related Manuals for Kool-It KND300A

Summary of Contents for Kool-It KND300A

  • Page 1: Table Of Contents

    MODEL: KND300A INSTRUCTION MANUAL ※ Please check voltage supply before use. ※ This product is for indoor use only and cannot be installed outside. ※ Appearance and design, color, and parts are subject to change without notice. ※ Please read safety instructions before use.

  • Page 2: Safety Precautions

    1. Safety Precautions Warning When there is a risk of causing physical damage such as death or serious injury in the event of improper use. Caution When injury or damage to property such as house or furniture may occur in the event of improper use.
  • Page 3 Warning Disassembly or part replacement should only be performed by an authorized service technician. Warning Do not allow electrical cords or plugs to be pinched or twisted ◆ The cord or plug may be damaged and there is a risk of fire or electric shock. ◆...

  • Page 4: Product Specifications

    2. Product Specification ____________________________________________ ____________________________________________ Characteristics Specification Model name KND300A ______________________________________________________________________________________________________ Nugget Ice shape ______________________________________________________________________________________________________ ※ Maximum capacity (lb / day) Ambient temperature 50F, Water temperature 50F _______________________________________________________________________________________________________ About 10lb (reservoir) Storage capacity (lb) ______________________________________________________________________________________________________ ※ Size (W X D X H inches) 16.57"...

  • Page 5: Appearance And Size

    3. Appearance and Size Front 16.57" Upper vent Display panel 31.50" Ice exit Ice discharge lever Drain box Height-adjustable feet Right side Left side 25.0" 31.5" 28" 10.9" 3.54"...

  • Page 6: How To Install

    4. How to install ⊙Install in an area without a heat source and good ventalation ◆ Install in a place where there is no heating device such as a fireplace or a gas range, and do not install in an area outside the range of 50-100F.

  • Page 7: Installation Area

    Installation area Please install in a hygienic enviroment Hygienic and clean ◆ Ice is used for edible purposes, so please always install the product in a sanitary and clean place. place! Installation should be indoors. ◆ Install the drain hose at an angle so that drainage is good Recommended drop 1/4"...

  • Page 8: Panel Disassembly Method

    Panel disassembly method 1. Upper panel: Open the front door and lift the upper panel, then the back magnets will be separated and disassembled. 2. Front panel: Remove the lower set screws of the drain box, then loosen the set screws on the top of the front panel and pull out the front panel on both sides.
  • Page 9 Connection of water supply and drainage [Connection of water and drain hoses] Hose to be used Proper water temperature Water pressure Division ICE MAKING water supply OD ø1/4" 50 ~ 90F 15-70psi PE TUBE ID ø3/4" hose ICE MAKING drainage If the temperature of the ICE DISPENSER water supply is too high, the ICE DISPENSER capability may be reduced If the water pressure is too low, it may not be possible to produce ice.

  • Page 10: Grounding

    G r o u n d i n g t h e i c e d i s p e n s e r Please be sure to ground unit to prevent electric shock. Grounding method - When there is grounding terminal If you are using an AC 115V outlet with ground terminals, you do not need to ground it separately.

  • Page 11: Button Operation

    1. Power connection ◆ This ice maker is only for 115V, please connect it to a dedicated outlet. 2. Water supply ◆ Open the faucet and let the water run. 3. ICE MAKING operation ◆ Open the front door and turn on the power switch to start the Ice making operation.

  • Page 12: Function Button Description (Fnd Display Window)

    WATER button lamp - Press the button to light up. If you put the cup on the ice exit, you can discharge the water for the time as set in F1. ICE & WATER button lamp - Press the button to light up. If you put the cup on the ice exit, you can simultaneously discharge ice and water for the time as set in F1.
  • Page 13 ③ Press the discharge lever for continuous operation of SOLENOID and the motor. Keep 'ON' state. F3 (Automatic ice discharge function) ① When ICE, WATER & ICE button is selected, ice is automatically supplied for the set time. ② Automatic operation is not possible when OFF is set. (Manual operation) ③...

  • Page 14: Stop Switch

    Three Draining Functions (Forced Draining Automatic Draining, Water Draining) 1) Forced drainage function (Must be implemented to prevent freezing during winter storage. Please also use this function for cleaning the inside.) - Turn on the power switch and press the "DOWN + SET" button simultaneously for 3 seconds with any signal on the FND display.

  • Page 15: Water Removal (Water Tank And Evaporator)

    6. Required Actions to prevent freezing Water Removal in Water Tank and Evaporator If the ambient temperature falls below 32F, water will freeze inside the unit and it will cease operation. CAUTION If not used for a long period of time (winter), be sure to completely remove the water inside the body by following the instructions below.

  • Page 16: Maintenance Schedule

    Maintenance schedule ※ The following maintenance schedule is a guideline. ※ Maintenance and repair should be done more frequently according to water quality, equipment usage, environment and local hygiene regulations. Inspection Area Contents Schedule Daily Chute 1. Clean the ice scoops with a neutral detergent. 2.
  • Page 17 Every Water supply 1. Close the shutoff valve to shut off the water supply line and year valve and Drain drain the water. valve 2. Clean the inlet of the water supply valve and check the water supply valve and drain valve for leakage and operation. Water hose 1.

  • Page 18: Cautions When Cleaning Exterior Panel (Stainless Steel)

    Cautions when cleaning exterior panel (stainless steel) How to remove rust (cleaning) How to clean the rust 1. Stain type initial rust - Since the initial rusted stainless steel surface itself is only slightly affected by the stain, it can be returned to almost the original surface by selecting a neutral detergent or a commercially available cleaning solution.

  • Page 19: How To Clean And Disinfect

    How to clean and disinfect ※ The ice maker should be cleaned and disinfected at least twice a year. More frequent cleaning and disinfection may be required. ◆ Please observe the following points. ● Do not use ammonia-type detergents to prevent personal injury or damage to the ice Warning maker.
  • Page 20 3. Disinfection wash Dilute 3g of warm water and 15oz of 5.25% sodium hypochlorite solution (bleach). (※ Dilution ratio may vary depending on the solution manufacturer, please refer to the solution's manual). If this is the minimum amount to be used, use more washing solution. ※...

  • Page 21: Error Codes

    9. Error Codes ①When Error occurs, the front button (ICE-WATER-ICE & WATER) light alternately to the left and right. Restart after action. ②Open the door and press the bottom setting button of the control buttons, Error display will appear. ____________________________________________________________________________________________________________________________________ Release Action Operation...

  • Page 22: Before Requesting Service

    10. Before Requesting Service If the operating condition of the machine is not good, please check the followings. If the operating condition is still not satisfactory, contact your dealer or service center. At this time, please give details of the following items on your warranty card. (Details of model name, serial number, name of dealer, date of purchase) ______________________________________________________________________________________________________________________ Operating status Things to check...

  • Page 23: Warranty

    12. Manufacturer Warranty Ice Dispenser Limited Warranty Subject to the exclusions and limitations below, MVP Group warrants to the original consumer that any new ice machine shall be free of defects in material or workmanship for the warranty period outlined below, under normal use and maintenance, and upon proper installation and start up in accordance with the instruction manual supplied with the product.
  • Page 24 Replacement Part Warranty: Following the expiration of MVP Group ’ s product warranty, any replacement part purchased by the equipment owner is warranted for a period of ninety (90) days from installation date of replacement part, the compressor or evaporator is warrantied for a period of one (1) year from installation date of replacement part.
  • Page 25 Toll Free: (888) 275-4538 international: (514) 737-9701 Fax: (514) 342-3854 Toll Free Fax: (877) 453-8832 Printed 07-2019...
