Summary of Contents for TACKLIFE RES002

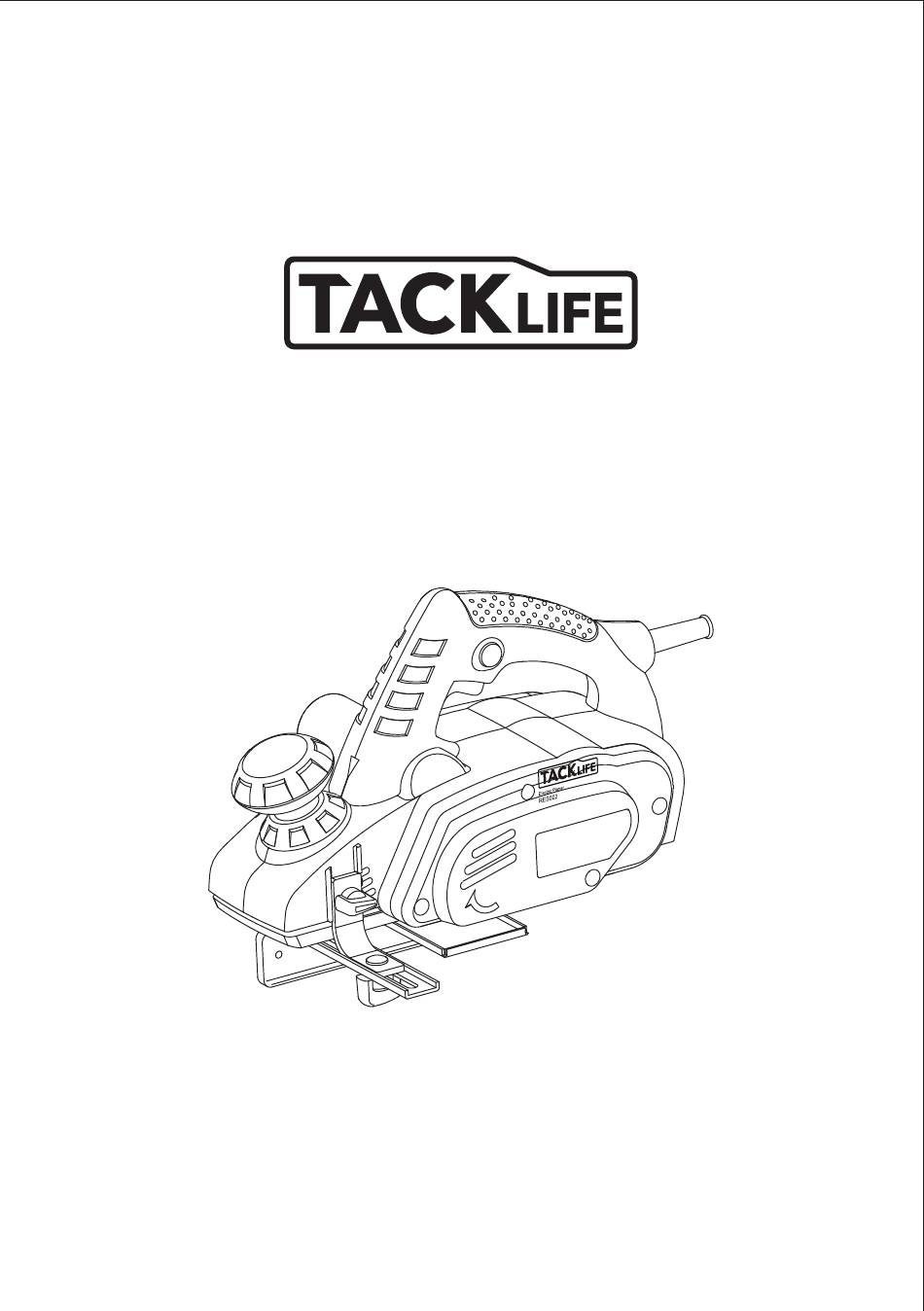

- Page 1 User Manual Electric Planer Model: RES002...
- Page 2 TECHNICAL CHARACTERISTICS Rated Voltage 230V～ Rated Frequency Input power 600W No load speed min-1 17,000 Cut depth Total planer width Approximate weight Description and operation This power planer is Class Ⅱ。Portable power tool equipped with double insulation and single-phase series motor that has been designed primarily for smoothing and cutting wood. Safety regulations Rags,clothes,cords,strings and similar objects should never be left around the work area.
- Page 3 Do not force the tool. -Do not force small tools or attachments to do the job of a heavy duty tool.Do not use tools for purposes not intended. Use the right tool. -Do not force small tools or attachments to do the job of a heavy duty tool.Do not use tools for purposes not intended.
- Page 4 -The use of some accessories or attachments,other than those recommended in this instruction manual,may present a risk of personal injury. Let your tool be repaired by your tool repaired by a qualified person. -This electric tool is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts,other- wise this may result in considerable danger to the user.
- Page 5 Blade edge is even with sole. Wrong setting -Uneven lines Reason: One of the two blade edges is not even with the sole. -Sunken front Reason: Blade edge and sole are not paralled. Blade is too low. -Sunken back Reason: Blade edge is higher than sole. Adjusting the cut depth Depth adjustment knob Figure3...
- Page 6 To turn on the tool,press down the cocking button firstly and then the power switch button.(The power switch button can be pressed down only after the locking button has been pressed.) After the tool is turned on, the locking button can be released. To turn off the tool, just release the power switch button.
- Page 7 Replace both brushes at the same time. Remove the shaving deflector with a screwdriver, then take off the brush cover, remove the brushes, instort the new brushes and replace the brush cover and shaving deflector Replacing the belt When the belt is worm prevens the power tool from running property. It must be replaced. Remove the belt cover by loosening the screws with a screws with a screwdriver.
- Page 8 Shenzhen Take Tools Co., Ltd. Web: www.tacklifetools.com Facebook: www.facebook.com/Tacklife.US/ E-mail: support@tacklife.net ADD: No.B714, Niulanqian Building, Minzhi Road, Longgang District, Shenzhen, Guangdong, China 518000...
