DSC C24-CAM54IR Quick Installation Sheet

C24 CAM54IR
Quick Installation Sheet
Package Contents
The following items should be included: If any of
these items are damaged or missing, please contact
your distributor immediately.
C24-CAM54IR
Stand
Black Y-cable
DC cable
Ethernet cable
Quick Installation Guide
12V 1A Power Adapter

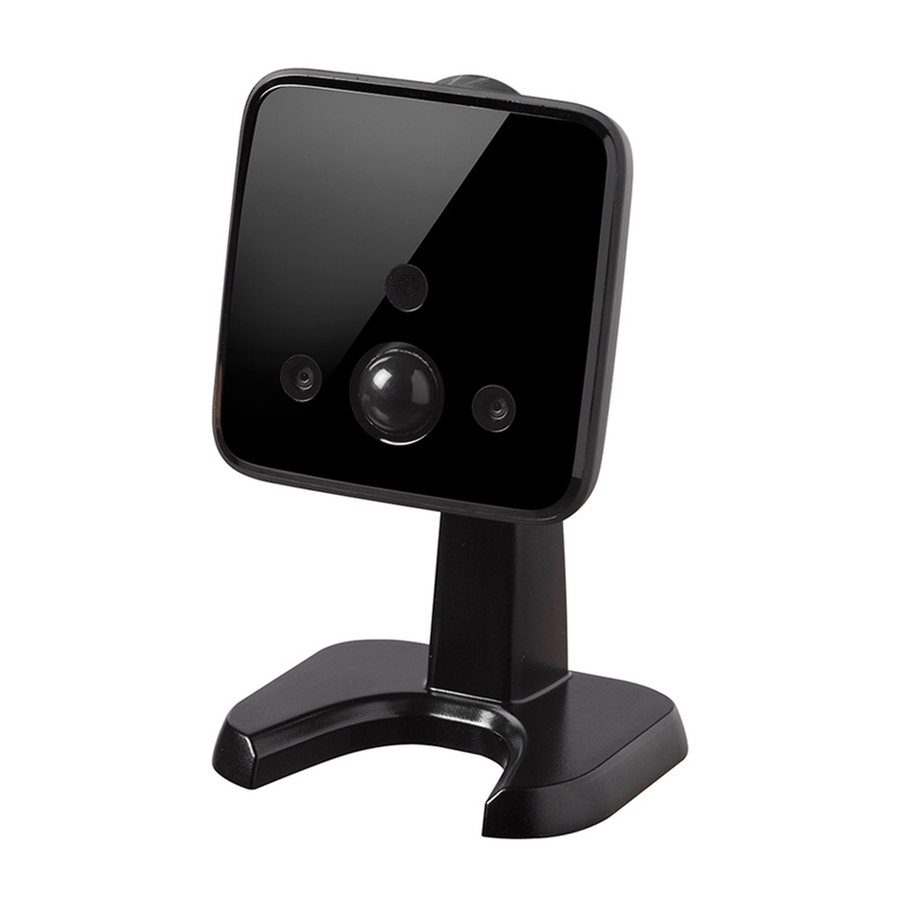

Model C24 CAM54IR
Dimensions 72mm (W) x 72mm (H) x 20mm (D)
(without stand)
Operating
20 C to 45 C
Temperature
Video H.264, MPEG4 and MJPEG
compression
Network 1 Ethernet 10/100BaseT (RJ45)
Interface
Storage 20 C to 60 C
Temperature
LEDs 3
Power Adapter 12V/1A

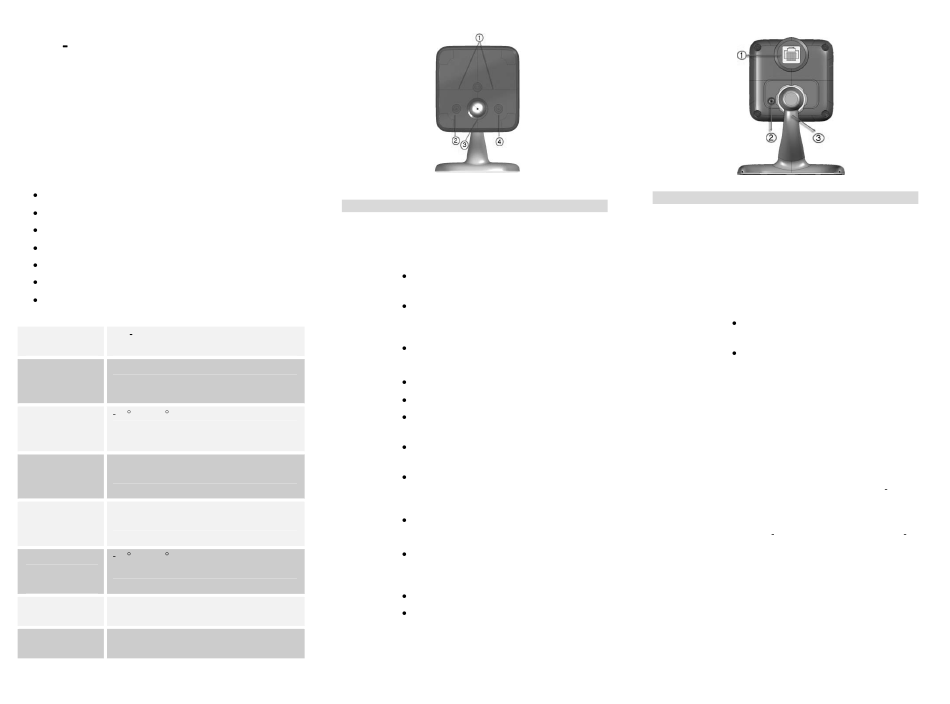

Front - C24-CAM54IR
1. IR LED The LEDs can help you see clearly even at
night or in the dark environment.
2.
On (Green)- LAN/Wireless
Network connection established.
(Green)
Off - No active connection on the
corresponding LAN port, or not
associated to Wireless AP
Flashing - Data is being transmitted
or received.
3.
On (Green)- Power On
POWER/
Off - Power Off
WiFi
Blinking - Data is being transmitted
(Green)
or received.
Blinking Low - Weak strength of
WiFi signal (1/2 Hz, SNR < 15 dB)
Blinking Medium - Strength of WiFi
signal is normal (1/2 Hz, SNR < 15
dB)
Blinking High - Good strength of
WiFi signal (1/2 Hz, SNR < 15 dB)
4. WPS
On - When the WPS function is
(Green)
failed, the WPS LED will be lit on
for 5 seconds.
Off - WPS function is off.
Flashing - WPS function is being
processed. If it is successful, the
WPS LED will be off.
Rear - C24-CAM54IR
1. LAN Port Use standard LAN cable (RJ45 connectors) to
connect the C24-HUB
PoE (Power over Ethernet) function to both
Ethernet and Adapter is supported.
2. Reset This button has two (2) functions:
Reboot. When pressed and released, the
C24-CAM54IR will reboot (restart).
Clear All Data. This button can also be
used to clear ALL data and restore ALL
settings to the factory default values.
To Clear All Data and restore the factory default
values:
1. Power On.
2. Keep holding the Reset Button down for 8
seconds.
Release the Reset Button. The C24 CAM54IR is
now using the factory default values.
3. Microphone The built in microphone is useful for bi direction
voice conversation.
to the port. Customized
