Draper 13818 Instructions

INSTRUCTIONS
Warning: Shielded wires or live wires in metal conduits, casings, metal walls or thick, dense walls
will not be detected, and the presence of foil backed plasterboard or insulation materials.
Use caution when nailing, cutting or drilling in walls, ceilings and floors that may contain wiring or
pipes near the surface.
When working near AC electrical wires, always turn off the wires' power.
Caution should always be used when nailing, sawing or drilling into walls, floors and ceilings that
may contain cable or wire.
1.

TECHNICAL DESCRIPTION

1.1

IDENTIFICATION

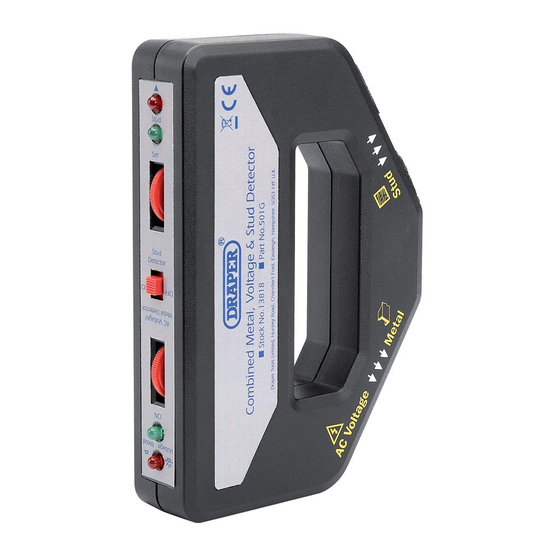

(1) Stud detection face.
(2) Voltage detection face.
(3) Red LED indicator.
(4) Green LED indicator.
(5) Sensitivity dial (stud detector).
(6) Selector switch.
(7) Sensitivity dial (AC voltage/ metal
detector).
(8) Green "ON" LED.
(9) Red LED indicator.
(10) Battery compartment.
(11) Trimmer for stud detector.
(12) Trimmer for voltage/metal detector.
(13) Buzzer.
(14) AC voltage detection adjuster
(Factory adjustment only. Do not
tamper with this setting).
2.

ASSEMBLY

2.1

CONNECTING THE BATTERY

Unclip battery compartment cover on the back of the unit, and
connect a new 9V-PP3 battery. Replace cover and securely
snap in place. The unit is now ready for use.
COMBINED
METAL, VOLTAGE
& STUD DETECTOR
13818
