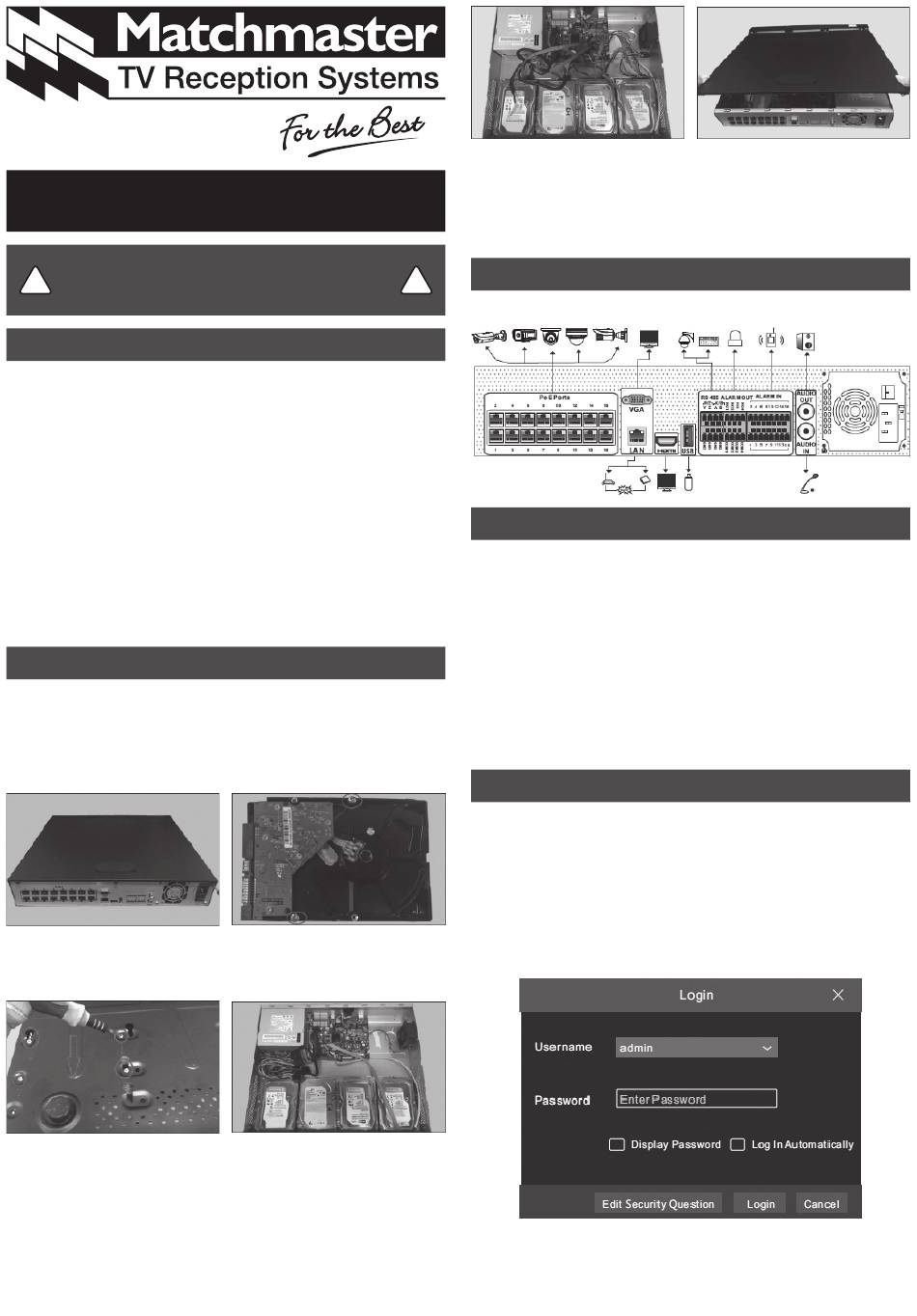

Matchmaster 50MM-KB001 Instruction Manual

50MM-KB001/50MM-KD001
INSTRUCTION MANUAL
IMPORTANT: REMEMBER TO CHANGE
!
YOUR PASSWORD FROM
FACTORY DEFAULT.
1. NOTES
• Please read this instruction carefully for correct
use of the product and preserve it for reference
purposes.
• All the examples and pictures used here are for
reference only.
• There may be several technically incorrect places
or printing errors in this manual. The updates will be
added into the new version of this manual.
• The contents of this manual are subject to change
without notice.
• This device should be operated only from the type
of power source indicated on the marking label. The
voltage of the power must be verified before using
the same.
2. HDD INSTALLATION
This series of the product supports up to 4 SATA hard
drives. Please make sure that the device is powered off
before the installation. The pictures of the installation
are only for reference, please take the real object as the
standard.
1. Loosen the screws to
open the cover.
3. Turn over the machine
and place the HDD with
two screws onto the
bottom of the case. Then
lock the screws according
to the order of the marks.
V1.3 | AU Support www.matchmaster.com.au | NZ Support www.matchmaster.co.nz | Page 1 of 4
2. Screw two screws into
the holes of HDD but not
tighten them.
4. Install the other three
HDDs according to above-
mentioned method.
5. Connect the power and
data cables.
Tips: Please check the inside structure of the device and
make sure the cables connected well before installing
the cover back.
! 3. REAR PANEL INSTALLATION
The interfaces of the rear panel are for reference only.
4. STARTUP & SHUTDOWN
Startup
1. Connect the monitor and the power.
2. The device will boot and the power indicator will
display blue.
3. A wizard window will pop up.
Shutdown
Go to "Main Menu" and then select "Shutdown" icon.
This will bring up a shutdown window. The device will
shut down by clicking "OK" button. Then disconnect the
power.
5. LOGIN
The default username is admin and the default
password is 123456. You must configure the wizard if
you start the NVR for the first time and you may change
the password when you configure the wizard for the
first time. You can skip the settings of wizard next time.
Click "Start" and select "Login". This will take you to see
a login box. Input default username and password you
set and you can see the live image.
6. Install the cover back
and fix it.
