Summary of Contents for AT&T TV

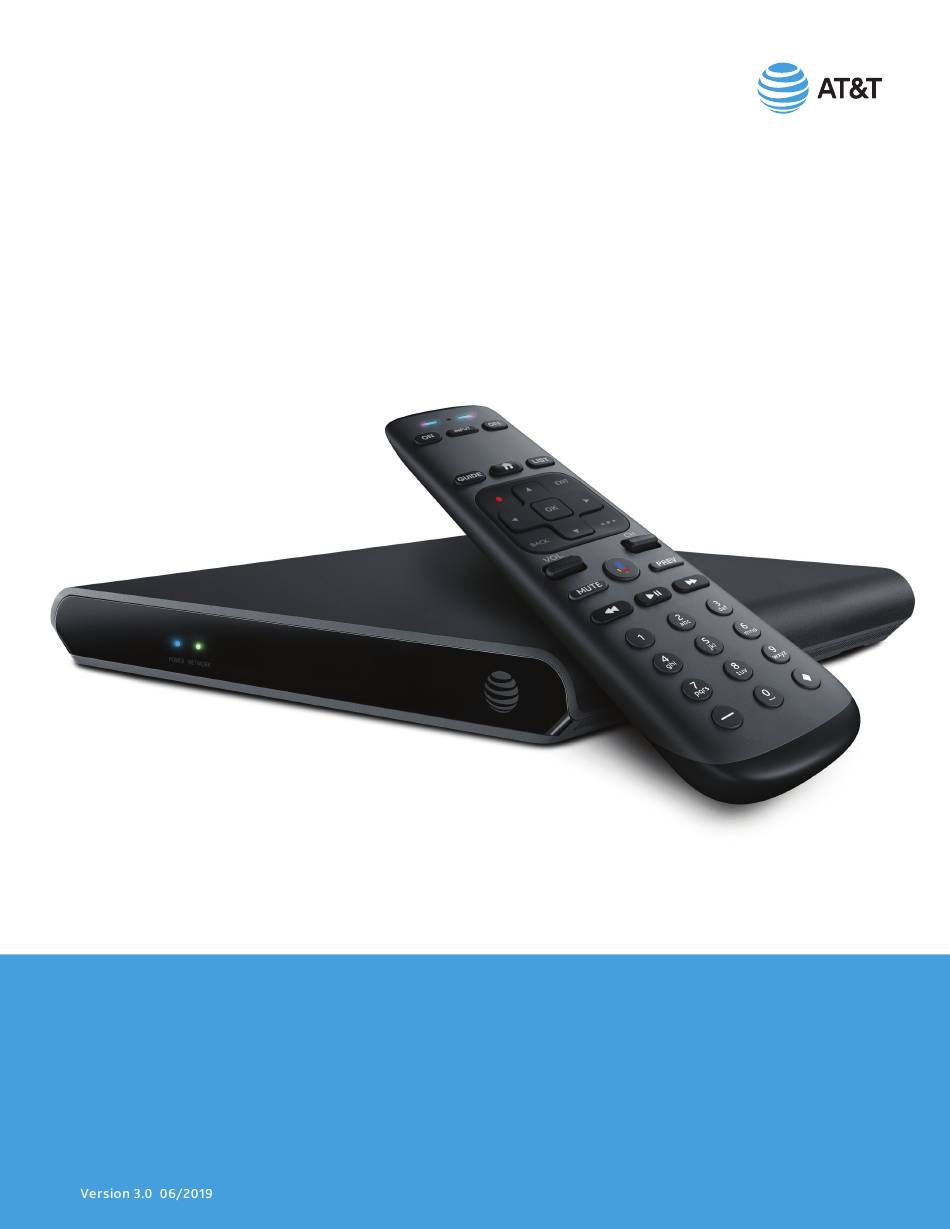

- Page 1 User Manual—AT&T TV Device and Remote Control AT&T TV Device and Remote Control User Manual...
- Page 2 User Manual—AT&T TV Device and Remote Control Introduction Product manuals are intended to help customers understand the workings of the hardware devices. This product manual provides overview information of the AT&T TV device and remote control and addresses att.com/userguides for customer access.
-
Page 3: Table Of Contents
Figure 1: AT&T TV—Front Panel ..................................07 Figure 2: AT&T TV—Side Panel ..................................07 Figure 3: AT&T TV—Rear Panel View with New Logo ........................07 Figure 4: AT&T TV—Wall Mounting ................................08 Figure 5: Remote Control showing button with descriptions ....................09... - Page 4 User Manual—AT&T TV Device and Remote Control Terminology Term Description allowing access to services anywhere, anytime, and on any compatible device Picture-in-Picture RF4CE Radio frequency for consumer electronics through the client...
-
Page 5: Overview
TV. The AT&T TV is used on its own as a standalone device (one per TV) so you don’t need any other AT&T TV set-top boxes or services. (It’s not compatible with any DIRECTV set-top boxes or existing Genie Servers.) -
Page 6: Hardware Information
User Manual—AT&T TV Device and Remote Control II. HARDWARE INFORMATION Power • Height: 19 mm • EPS10 External PSU • Width: 158.6 mm • AC External PSU -120v~60 HZ, 18W • Depth: 158.6 mm • Feet: 1 mm • Active Power Consumption below 15W •... -
Page 7: Client Hardware
User Manual—AT&T TV Device and Remote Control B. Client Hardware AT&T TV—FRONT PANEL • Red Reset Button AT&T TV 3. Rear Panel • USB 2.0 Port (Type A Connector) (for EPS10 External Power Supply) AT&T TV—REAR PANEL... -
Page 8: Other Associated Hardware
Remote Control are: AT&T TV • The remote uses Bluetooth for two-way communication to the AT&T TV. • Like RF mode, Bluetooth eliminates the need for the remote and the paired devices to be in line of sight to each other. -
Page 9: Figure 5: Remote Control Showing Button With Descriptions
User Manual—AT&T TV Device and Remote Control MIC/STATUS LED Turns both AT&T TV Turns both AT&T TV and TV ON at the same time and TV OFF at the same time HOME Display the HOME screen INPUT Cycle through and select the... -
Page 10: Features
User Manual—AT&T TV Device and Remote Control III. FEATURES A. Audio & Video Hardware Features Feature AT&T TV Ethernet MoCA Wireless (802.11ac) Digital Audio Output HEVC AT&T TV WPS Button RC7x RF Remote BLE Remote Power Button Recording LED Reset Button Smart Card USB 2.0... - Page 11 User Manual—AT&T TV Device and Remote Control Category Feature AT&T TV 3DTV 3D Video Playback Audio Digital Audio Audio Dolby Digital Audio Cloud DVR Accessing Cloud Content Captioning Captioning Closed Captioning Energy Star Power Saving Standby One-touch Recording Live TV...
-
Page 12: Appendix
User Manual—AT&T TV Device and Remote Control IV. APPENDIX A. LED STATES Front Panel “Network” LED Color State Flashing Red No network connectivity Front Panel “Power” LED Color State Bright Blue Dim Blue Flashing Blue Flashing Blue & Red... - Page 13 User Manual—AT&T TV Device and Remote Control This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 14 If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this AT&T TV does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your alarm company, telephone company or a quali ed installer.
