JKDC SECURITY JKDJ-120C Manual

Semi-automatic tripod turnstile
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
1
JKDC SECURITY Co Limited
www.jkdcsecurity.com

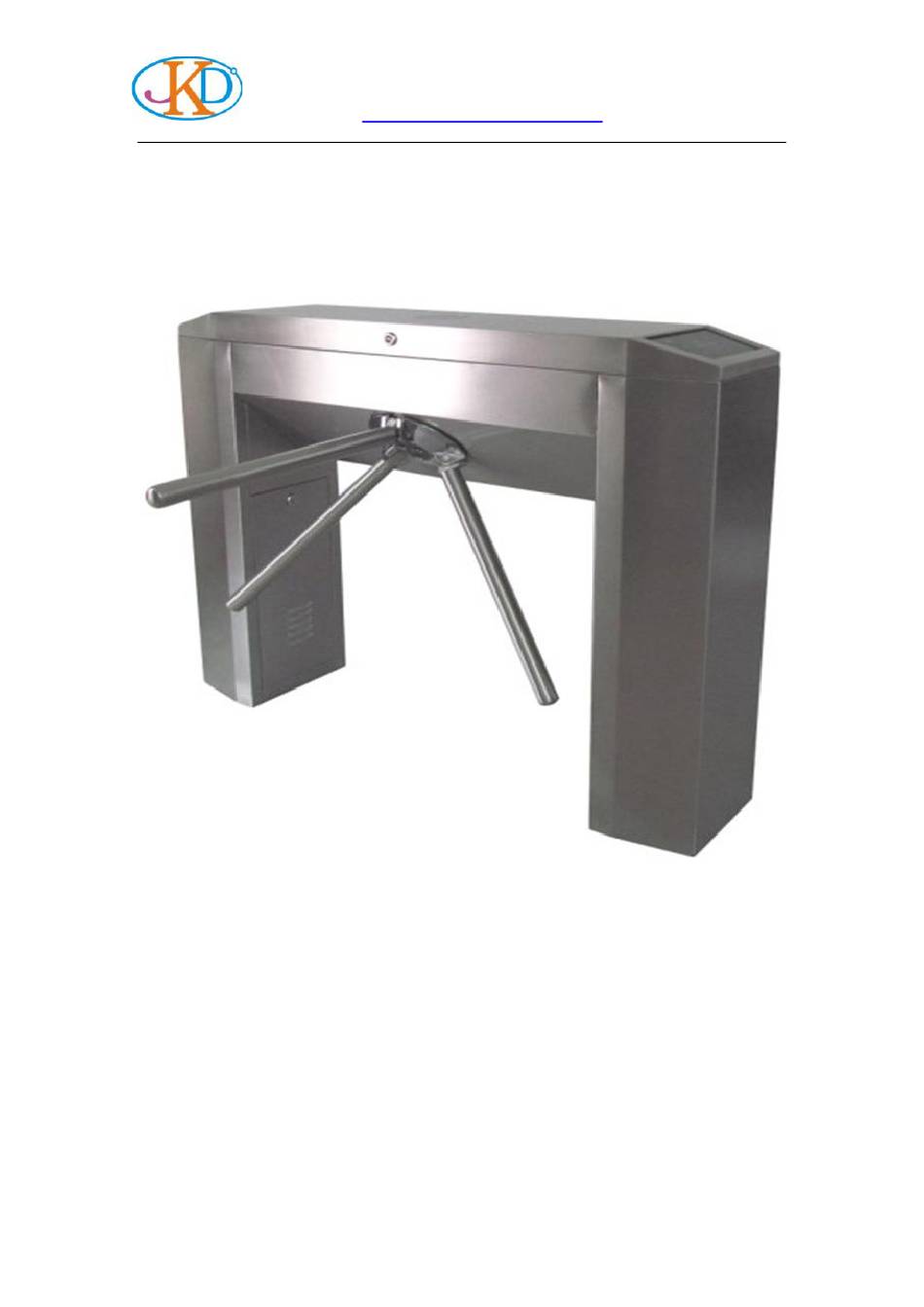

Semi-automatic Tripod Turnstile
Manual
1. Product Introduction
Tripod Turnstile is generally used in simple dissuasion level access control of public passages. It
is widely used in work attendance checking systems of factories, consumption systems of public
institutions, access control of residential estates, ticket exit systems of scenic, sports and other
arenas, hand key management systems of construction sites and so on. The mechanical part of the
turnstile contains an emergency control device, which allows free passage in case of power fail.
The turnstile has different optional configurations for the applications of all building conditions
and for the control of all kinds of passage entrance-exits. Different identification systems (ID
card, IC card, bar-code, hand key, fingerprint, iris, etc.) can be configured into the turnstile system.
The turnstile can be connected to any kinds of controllers and various consumption devices.

Advertisement

loading
Need help?

Need help?

Do you have a question about the JKDJ-120C and is the answer not in the manual?

Questions and answers

Related Manuals for JKDC SECURITY JKDJ-120C

Summary of Contents for JKDC SECURITY JKDJ-120C

  • Page 1 JKDC SECURITY Co Limited www.jkdcsecurity.com Semi-automatic Tripod Turnstile Manual 1. Product Introduction Tripod Turnstile is generally used in simple dissuasion level access control of public passages. It is widely used in work attendance checking systems of factories, consumption systems of public institutions, access control of residential estates, ticket exit systems of scenic, sports and other arenas, hand key management systems of construction sites and so on.
  • Page 2 JKDC SECURITY Co Limited www.jkdcsecurity.com 2. Features and Functions 1. Rainproof housing, anti-corrosion coating iron or #304 stainless steel 2. CNC stamping and laser drilling, presenting a novel and elegant appearance 3. Innovative and unique mounting surface ensures simple and convenient installation for system system integration.
  • Page 3 JKDC SECURITY Co Limited www.jkdcsecurity.com Two-Way (PASS1.PASS2) dry contact (or level) control signal input for controlling electromagnets and legal signal indicating lights at the in and out direction Two-Way (FAL1, FAL2) dry contact (or level) status input for the control of illegal signal...
  • Page 4 JKDC SECURITY Co Limited www.jkdcsecurity.com 7. Operating Instructions (Wiring Diagram Attached): The Tripod Turnstile has three different operating modes: 1) Always Free Passing (Barrier Free Passage) 2) Mechanical Entry Control (Manual Unidirectional Passage) 3) Electric Driving Entry Control (Intelligent Passage through Identification by means of IC, ID, Bar-code, etc.)

  • Page 5: Wiring Diagram

    JKDC SECURITY Co Limited www.jkdcsecurity.com Wiring Diagram: Connecting 2 way Electromagnet Output 2 24V Input Connecting DC24V Connecting DC24V Output 1 Connecting 1 way Legal Signal Input Test Button 1 Electromagnet Terminal (Dry Contact) 1 Legal Signal Input Test Button 2...

  • Page 6: Installation Diagram

    JKDC SECURITY Co Limited www.jkdcsecurity.com 9. Installation Diagram: Unit: mm 10. Service Commitments 1) Prepurchase Service: A) Offer users counselor and consultant service related to the turnstile. B) On the basis of comprehensive consideration of the specific layout, environment and power supply conditions, propose reasonable design schemes to customers, striving for best price value.
  • Page 7 JKDC SECURITY Co Limited www.jkdcsecurity.com offering service. Help users to establish a management system for the turnstile system. 3) After sales Service: A) Supply various consumable materials. B) Periodically carry out inspection by telephone calls and provide advice and maintenance.
  • Page 8 JKDC SECURITY Co Limited www.jkdcsecurity.com A) The one year warranty covers any failure due to manufacturing factors provided the product is used under normal conditions (except as stipulated otherwise by the warranty card). The warranty does not cover housing, accessory and consuming parts. In case a failure of any of the above products takes place, our company shall provide service under warranty to the products with failure and the service shall be free of charge.
