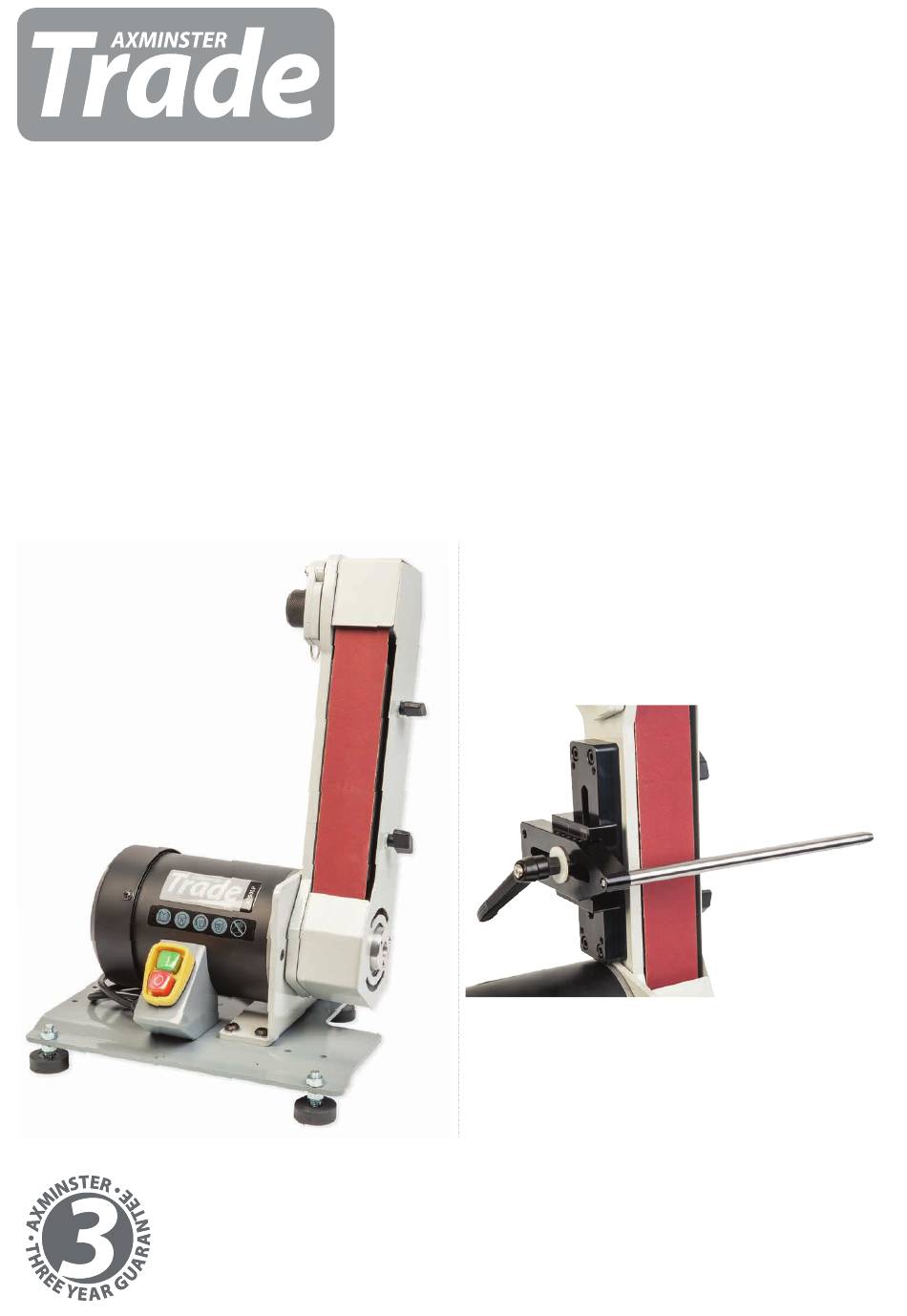

- Page 1 Code 105529 Original Instructions AT50LP Ultimate Edge Reverse Running Linisher with compound Jig AT50LP Ultimate Edge Linisher Fixed Speed Compound Jig for the Ultimate Edge AT&M: 11/09/2019 BOOK REF : 007789...
-
Page 2: Eu Declaration Of Conformity
Index of Contents EU Declaration of Conformity What’s Included General Instructions for 230 Machines Specification Assembly 05-06-07 Illustration & Parts Description 08-09 Setup/Adjustment Changing the Belt 11-12 Maintenance Compound Jig 13-14-15 Ultimate Edge Accessories 16-17-18-19 Exploded Diagrams/List 20-21 Wiring Diagrams Notes EU Declaration of Conformity Cert No: P-50... -
Page 3: What's Included
What’s Included Model Number AT50LP Quantity Item Part Ultimate Edge Linisher Reverse Running Abrasive Belt (Fitted) Adjustable Rubber Feet Graphite Pad (Self Adhisive) Long Hex Key 4mm Butterfly Threaded Knobs with Washers Sanding Belt Access Plate Euro Plug Adaptor 13A Instruction Manual Code 103738 Compound Jig •... -
Page 4: Specification
General Instructions for 230 Machines The following will enable you to observe good working • Carry out a final checks to the machine. practices, keep yourself and fellow workers safe and maintain • Ensure you are comfortable before you start work, your tools and equipment in good working order. - Page 5 Assembly Fig A Loosen the two screws on the Euro plug, open up and insert the pinned plug into the adapter as shown. Close the cover and tighten the screws. Fig B Euro plug adaptor 13A Threaded Rubber Feet Locate the four ‘Rubber Feet’ (C), remove one nut from each of the threaded feet and place aside.
- Page 6 Assembly Fig 06 WORK TABLE 2. Rotate the lever (2) to the side of the linisher, see fig 07-08. NOT INCLUDED Press down the lever to release the belt tension, see fig 09. Fig 07-08 Fig 09 Graphite Pad NOTE: IF YOU PREFER NOT TO USE THE ‘GRAPHITE PAD’...
- Page 7 Assembly 3. Remove the belt and place safely aside, see fig 10. Fig 10 WORK TABLE Note: After a period of time the ‘Graphite Pad’ will become worn NOT INCLUDED and we recommend fitting the optional ‘Slip Plate’ , code 105676, see picture below.
-
Page 8: Illustration & Parts Description
Illustration & Parts Description Belt tension mechanism Linisher guarding Belt tracking control knob Locking pin Belt access plate Belt Clamping knob Dust extraction outlet Motor Elongated slots allowing access to pivot the linisher Power takeoff for attaching the ‘Twist n Fix Arbor’ Base plate NVR Control switch Adjustable rubber foot... - Page 9 Illustration & Parts Description NVR ON/OFF switch (Green ON) & (Red OFF) Locking pin for tension mechanism (A), Tracking control knob The linisher can be pivoted to the required (B), Operating lever (C) too release the tenstion to the belt angle by adjusting the two Hex screws (H) 25mm Dust extraction outlet (F) Belt tension mechanism...
- Page 10 Setup/Adjustment Tracking the Belt KEEP WORK AREA AS UNCLUTTERED AS IS PRACTICAL. UNDER NO CIRCUMSTANCES SHOULD CHILDREN BE ALLOWED IN WORK AREAS. CONNECT THE MACHINE TO THE MAINS SUPPLY! 1. Press the ‘Green’ “ON” button, see fig 15 then track the belt as Turning the tracking knob anti-clockwise described below.
-
Page 11: Changing The Belt
Changing the Belt DISCONNECT THE MACHINE FROM THE MAINS SUPPLY! Remove old belt WORK TABLE NOT INCLUDED Remove the belt ‘Access Plate’ Clean linisher Continues over... -
Page 12: Maintenance
Changing the Belt Press down the lever and hold in place, pull the locking pin out and raise the roller assembly to re-tension the linisher belt. Place a new belt Press down on the drive rollers and centre. NOTE: Make sure the arrows on the reverse side of the belt are pointing... - Page 13 Compound Jig Compound Jig Assembly Slot the bolt (B) through the elongated slot in the mounting plate (G). Position the plate (G) against the linisher, line up the four holes, secure in position using the screws (C) & spring washers (E). Screw the thread end of the round Tighten the...
- Page 14 Compound Jig Setting the jig to the Platen Setting the Jig Terminology of the Jig These are the striations, Undo the two 12mm Compound jig we call them sharpening lines bolts half a turn Platen Locking Platen handle Set the guide jig to zero Back Left Right...
- Page 15 Compound Jig Hex screw Set the guide jig to the 25˚ degrees position Alternately place a 90˚ square on the bar and check its in line with the edge of the platen and make adjustments accordantly. Square to the platen With 25˚...
- Page 16 Ultimate Edge Accessories Axminster Compound Jig (code 103738) Ultimate Edge Micro Bevel Gauge (code 105427) Having ground the primary bevel on any tool the secondary bevel or micro bevel actually does the majority of the work. This is machined from specially anodised alloy and bolts easily It is exactly what it says it is a micro bevel which can be onto 4 pre tapped threaded holes on the belt arm.
- Page 17 Ultimate Edge Accessories The unique “Twist n Fix” multipurpose arbor allows for the Universal Edge Gauge Setting (code 103730) virtually instant change of different mops, felt wheels and profiling wheels. Supplied with mounting screws and one “Twist n Fix” arbor additional arbors can be purchased singularly or in a set of 3.
- Page 18 Ultimate Edge Accessories Medium Polishing & Honing Paste 250g Fine Polishing & Honing Paste 250g Super Fine Polishing & Honing Paste 250g Code 103703 Code 103715 Code 103716 Angle Gauge Set In Wallet 5-90 Deg Flame Retardant Hose 25 mm x 2 m Axminster Profiled Honing Wheel Code 103730 Code 103717...
- Page 19 Ultimate Edge Accessories Description Code Nylon Abrasive Wheel for Ultimate Edge - Soft 105581 Nylon Abrasive Wheel for Ultimate Edge - Medium 105582 Nylon Abrasive Wheel for Ultimate Edge - Hard 105583 Felt Wheel for Ultimate Edge - Hard 105580 Felt Wheel for Ultimate Edge - Medium 105579 Felt Wheel for Ultimate Edge - Soft...
- Page 20 Exploded Diagrams/List...
- Page 21 Exploded Diagrams/List Part No Description Specification Q’ty Bush Cable Gland Shaft Switch Box Washer Bush Live Wheel Buttom Head Screw M10x15 Power Cord Stop Rod Motor Cord Washer Motor Lock Nut M6x15 Base Plate Washer 1/4” Rubber Foot Buttom Head Screw l/4”x1”...
-
Page 22: Wiring Diagram
Wiring Diagram... - Page 23 Notes...
- Page 24 The Axminster guarantee is available on Craft, Trade, Engineer, Air Tools & CNC Technology Series machines Buy with confidence from Axminster! So sure are we of the quality, we cover all parts and labour free of charge for three years! For more information visit axminster.co.uk/3years The packaging is suitable for recycling.
