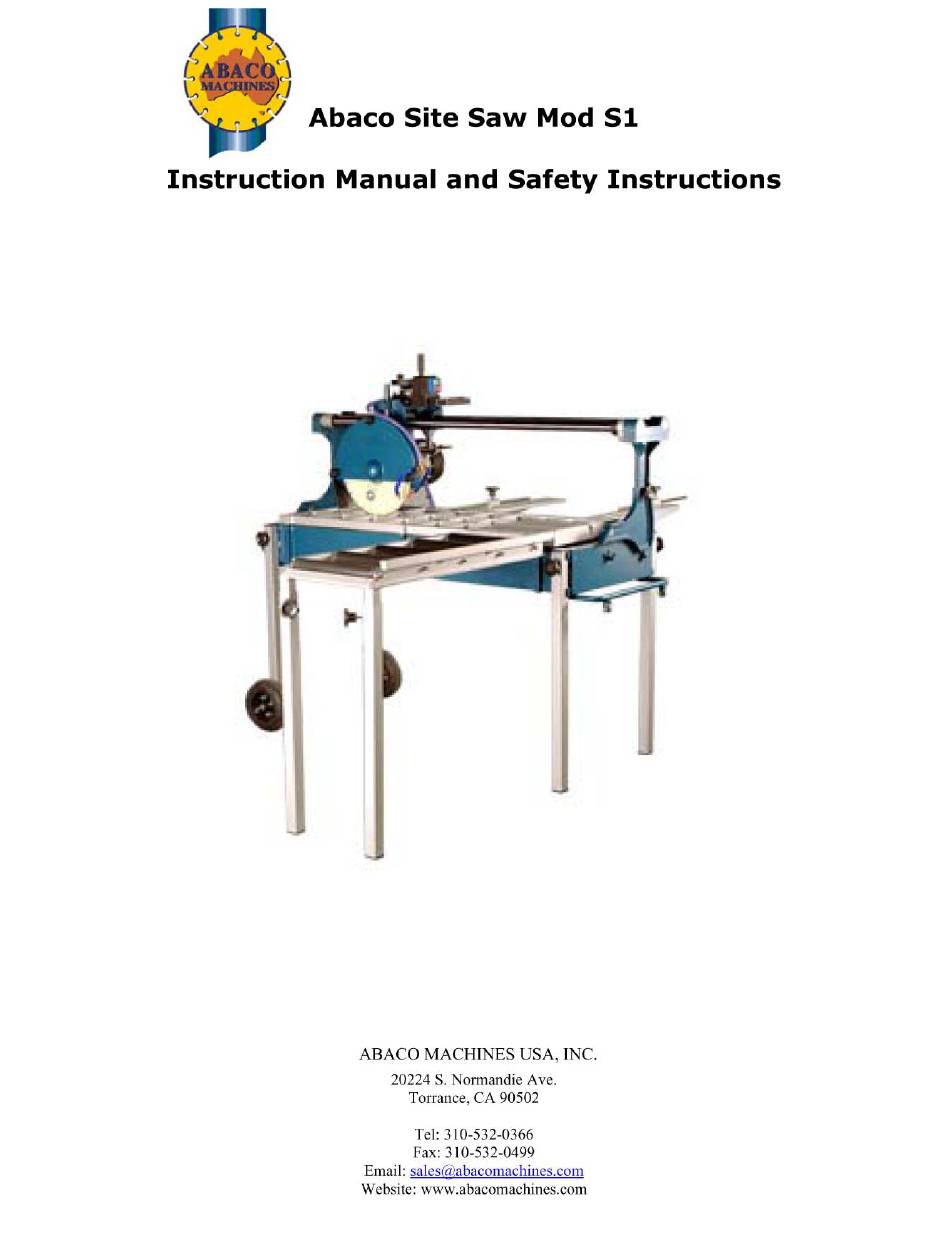

ABACO MACHINES S1 Instruction Manual And Safety Instructions

Site saw
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the S1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ABACO MACHINES S1

  • Page 2: Table Of Contents

    Abaco Site Saw Mod S1 Instruction Manual and Safety Instructions READ THIS MANUAL BEFORE USING THE SAW. Contents: Safety pg. 3 Product Specifications pg. 8 Unpacking and Assembly pg. 14 Operation pg. 18 Clean Up pg. 21 Maintenance pg. 21 Troubleshooting pg.

  • Page 3: Safety

    1. Safety READ AND UNDERSTAND ALL OF THE OPERATING INSTRUCTIONS, SAFETY PRECAUTIONS AND WARNINGS IN THE INSTRUCTION MANUAL BEFORE OPERATING OR MAINTAINING THIS SAW. Most accidents that result from the operation and maintenance of Wet Saws are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs and by observing appropriate safety procedures.
  • Page 4 Important Safety Precautions: Read all Instructions before use. Always wear eye protection. • When operating the Saw, always wear eye protection, and make sure others in the work area wear eye protection, too. Wear a dust mask. • A face dust mask or respirator should be worn if the cutting operation is dusty.
  • Page 5 Secure your work. • Clamps or a vise should be used to hold work whenever practical. It is safer to keep your hands free to operate the Saw. Do not overreach. • Keep proper footing and balance at all times by not overreaching. Stay alert.
  • Page 6 Use the proper extension cord. • If using an extension cord, first make sure it is in good condition. Always be sure to use an extension cord heavy enough to carry the current your product will draw. • An undersized cord will cause a drop in line voltage that will result in a loss of power and overheating.
  • Page 7 • Check with a qualified electrician or service personnel if the grounding instructions are not completely understood or if in doubt as to whether the Saw is properly grounded. • Use only 3-wire extension cords that have 3-prong grounding plugs and 3- pole receptacles that accept the Saw's plug.

  • Page 8: Product Specifications

    2. Product Specifications The Abaco SITE SAW MOD S1 is a Precision Saw designed to cut all types of materials including, but not limited to, granite, pavers, porcelain, terracotta, marble, quarry, sandstone and slate, and almost any other non-ferrous material.
  • Page 9 Description Ruler / Square Guide Hex Bolt M8 x 20 Washer Ø8 x Ø19 x1.5 Leveling Guide Cap Screw M6 x 15 Roller Table Frame Roller Bearing Plastic Roller Bearing 6000z Circlip Ø10 Roller Shaft Al. Washer Ø10 x Ø16 x 0.8 Roller Spring M8 Knob Locking Bracket...
  • Page 11 Description Washer Ø6 x Ø25 x 1 Circlip Ø12 Stop Pin Wheel Handle Handle Spindle Handle Spacer Hex Bolt M10 x 30 Spring Washer Ø10 Washer Ø10 x Ø20 x 1.5 Washer Ø6x Ø12 x 1 Screw M5 x 50 Switch Screw M6 x 15 Switch Base...
  • Page 12 Number Description Qty. Number Description Qty. Saw Table Rubber Grommet Stop Guide Water Pump Cap Screw M8 x 40 Water Pump Wall Plate Stop Rod Block Water Tray Stop Rod Al. Table Lock M8 Cap Screw M8 x 30 Water Pump Coupling Support Arm Circlip ø20 Stop Rod Guide...
  • Page 13 Description Cap Screw M10 x 40 Cap Screw M8 x 20...

  • Page 14: Unpacking And Assembly

    1 x Side Table with 2 legs Assembly THE SITE SAW MOD S1 COMES STANDARD WITH THE EUROPEAN POWER PLUG. 1. Alternately this power plug has been removed. Ensure that the correct plug is fitted to the power cable. Check with your local authorized service center for more information.
  • Page 15 Your Abaco SITE SAW MOD S1 comes standard with a “Travel Lock” located on the induction hardened chrome bar. 1. Before transporting the Saw, ensure that the “Travel Lock” is in position and tightened using the 6mm Allen key supplied.

  • Page 16: Operation

    Diamond Blade Installation Important - Do not “cross thread” and do not over tighten the retaining-nut. The Abaco SITE SAW MOD S-1 can be fitted with a 10”, 12” or 14” diamond blade. 1. Use the spanner and the 6mm Allen key provided. 2.
  • Page 17 4. The overflow drain valve is supplied for use with the Saw when used indoors or a place that the water in the water tray cannot simply be let out. 5. Screw the overflow drain valve to the under side of the drain hole. 6.
  • Page 18 4. Operating the Abaco Site Saw Mod S1 Cutting Straight Edges 1. Ensure the Saw is turned OFF. 2. Tighten the cutting guide to the desired location using the ruler on the working table. 3. Place the tile against the ruler and the cutting guide.
  • Page 19 Cutting 45° Miter 1. Ensure the Saw is turned OFF. 2. Loosen both knobs on the support arms of the Saw. 3. Swing the Tile Saw’s head over to 45°. 4. Tighten both knobs on the support arms of the Saw. 5.
  • Page 20 Cutting Step Treads 1. Ensure the Saw is turned OFF. 2. Turn the hand wheel on the top of the Saw to the desired height. 3. Once the desired height has been reached, lock the wheel with the locking lever located next to the hand wheel lever. 4.

  • Page 21: Clean Up

    Warning: Please ensure that while adjusting the blade height, that the blade is off and well above your working material. 5. Clean Up To ensure long life of the water pump, it is should be cleaned after every job. 1. Ensure the Saw is turned OFF. 2.

  • Page 22: Troubleshooting

    7. Troubleshooting Blade Dressing Diamond blades perform best when they are dressed. Over time and use, diamonds on the outer edge of the blade will become smooth or glazed over. This will reduce cutting efficiency and may cause the blade to wander or bend giving the illusion of an alignment problem.
