Summary of Contents for OZ-MATE NV0540

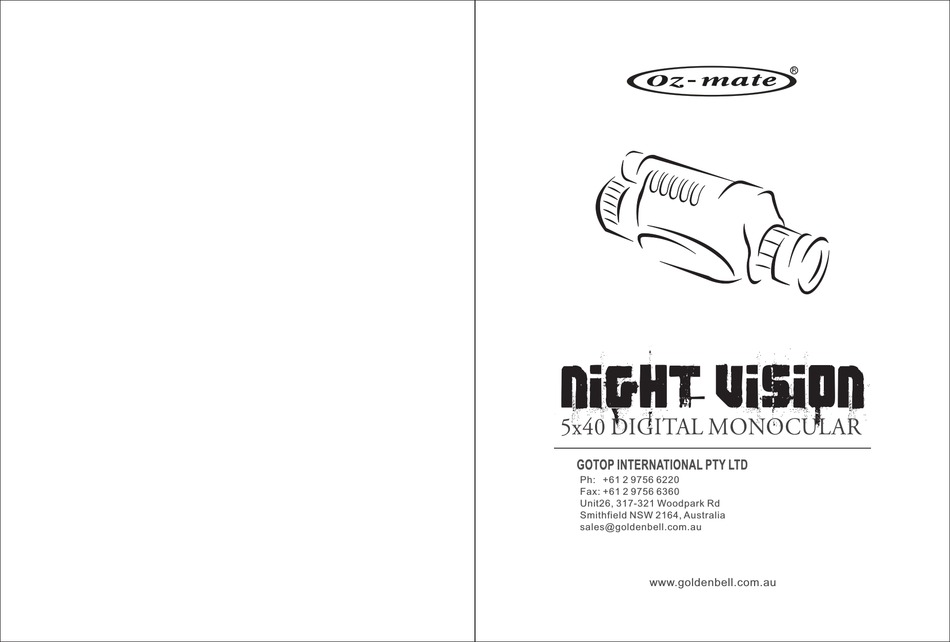

- Page 1 NIGHT VISION 5x40 DIGITAL MONOCULAR 61 2 9756 6220 Fax: +61 2 9756 6360 Unit26, 317-321 Woodpark Rd Smithfield NSW 2164, Australia sales@goldenbell.com.au www.goldenbell.com.au...
- Page 2 OVERVIEW • The OZ-MATE Digital Night Vision Monocular can be used for observation under complete darkness or low light conditions. CONTENTS • The viewing distance under low light conditions is infinity. Complete darkness restricts the viewing distance to a maximum of 200 metres.
- Page 3 COMPONENTS COMPONENTS Objective lens cover Dioptre focus wheel Eyecup 5V DC IN Mini USB 2.0 socket Dioptre marker Video OUT Power/Select button IR button Mode button Up button Down button Hand strap Infrared illuminator Battery compartment Objective focus wheel Threaded tripod mount...
- Page 4 BATTERY INSTALLATION POWER OFF •In any mode, hold the "Power" button for 3 seconds to turn the Digital NV • Unscrew the battery cover (using a coin in the groove if needed). Insert the battery negative end first and then screw the battery cover back in place. Monocular off.
- Page 5 INFRARED ILLUMINATOR •The infrared adjustment menu allows you to alter the strength of the assisting infrared light. DISPLAY ICONS • While in photo or video mode, press the"IR"button twice to enter the 1. Battery charge indicator infrared adjustment menu. 2. Image capacity remaining •As shown on the right image, the number after the word "Lamp"...
- Page 6 5 6 7 DISPLAY ICONS 1.Battery charge indicator PHOTO PLAYBACK 2.Date and time • In photo mode, press the "Mode" button to enter playback mode. This allows 3.Video recording time you to view any photos or videos you have taken with the monocular. 4.Video serial number •...
- Page 7 • The computer will identify the monocular automatically and read the Item Digital Night Vision Monocular 5x40 content on the SD card. • The battery will be charged while the monocular is connected to the Code NV0540 computer. Magnification x Objective 5X40mm lens diameter AUTO POWER OFF...
- Page 8 ACCESSORIES SPECIFICATION • Wall charger. • Car charger. >8000 pcs Photo Taking Quantities • Neoprene pouch. Video Output PAL/NTSC • Cleaning cloth. • Instructions. Mini USB/ Batteries Digital Signal Output Charging with red LED Input 90-240V AC Output 5V External Power 2A DC charging with red LED Storage Medium TF card (4GB) internal...
