Summary of Contents for Brookfield Industries NB-4120-1 Series

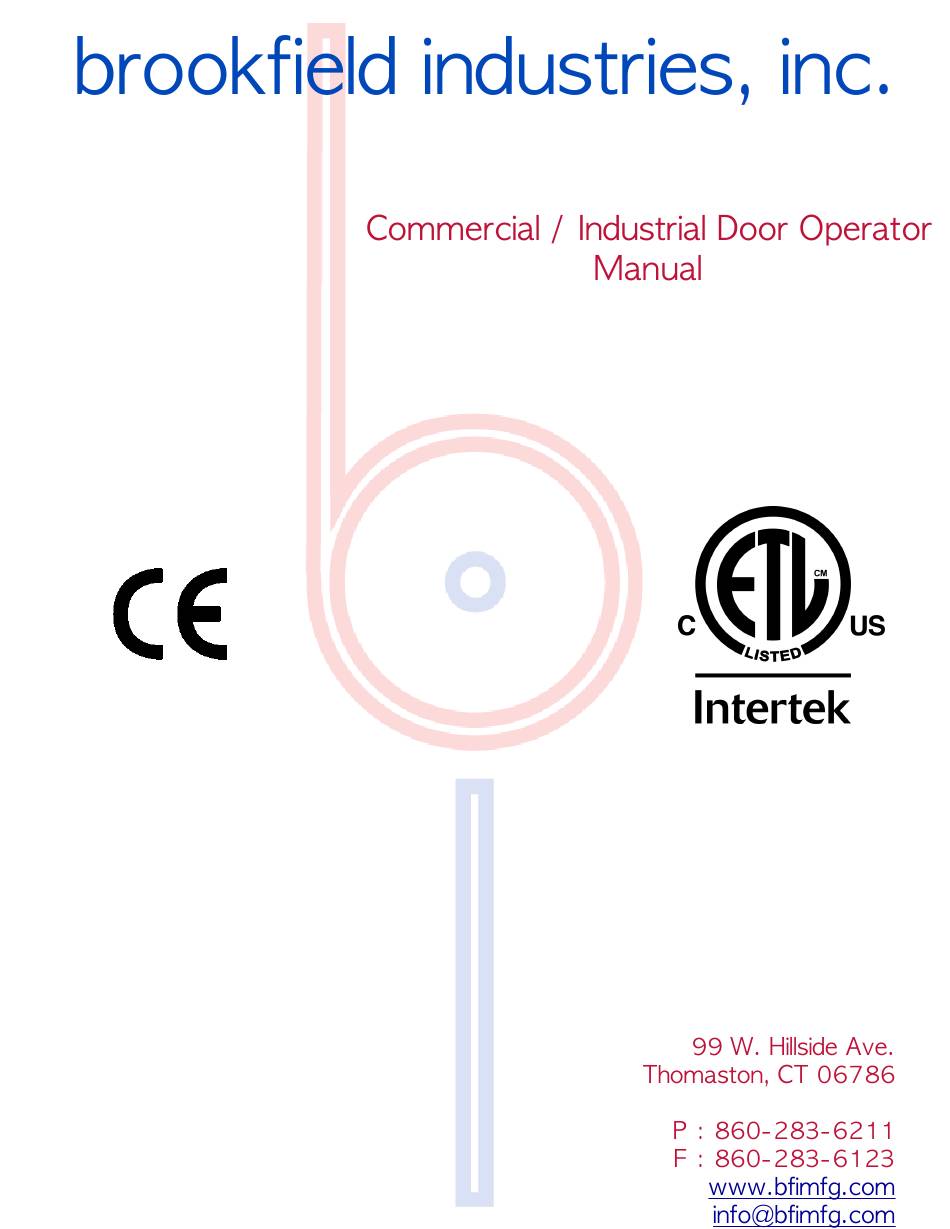

- Page 1 SWINGING AND SLIDING DOOR OPERATORS FOR LEAD SHIELDED DOORS For All Door Operator Model Numbers for Swinging and Sliding Doors...
- Page 2 NB-4120-1 and NB-4120-2 Bi-Parting COMMERICAL/INDUSTRIAL SLIDING DOOR OPERATOR MANUAL (3rd Edition 06/09/14) US Patent No. 6,177,771 B1...
-
Page 3: Table Of Contents
Table of Contents Important Instructions for Installation • Important Safety Instructions • Overview • Installation Instructions • GT-01 DAU Instructions • Diagnostics (I/O) • NB-4120-1 Double Belt Drawings: NB-4120-1B, NB-4120-1D, NB-4120-1M, • NB-4120-1P NB-4120-2 Single Belt Drawings: NB-4120-2C3, NB-4120-2E2, NB-4120- •... -
Page 4: Important Instructions For Installation
WARNING! IMPORTANT INSTALLATION INSTRUCTIONS IMPROPER INSTALLATION CAN LEAD TO SEVERE INJURY OR DEATH READ AND FOLLOW ALL INSTRUCTIONS Commercial/Industrial Sliding Door Operator shall be installed more than 8’ above the floor • Install only on a properly operating and balanced door within the rated values for door weight, door width and •... -
Page 5: Important Safety Instructions
WARNING! IMPORTANT SAFETY INSTRUCTIONS IMPROPER USAGE CAN LEAD TO SEVERE INJURY OR DEATH READ AND FOLLOW ALL INSTRUCTIONS Commercial/Industrial Sliding Door Operator for trained traffic* use only. The manufacturer of this product does not • include external safety devices as a standard feature. External safety devices are required on this door operator. -
Page 6: Overview
Overview The NB-4120-1 Double Belt, Bi-Parting Sliding Door Operator is designed and tested for lead shielding doors weighing up to 70,000 lbs (total both doors) operating at linear speeds of 6.0 in/sec maximum (each leaf in opposite directions) or a maximum horizontal operating force of up 1400 lbs (total both doors). - Page 7 AC power to the operator (Terminal L1, L2, L3 and Terminal N). The NB-4120 features the same Absolute Position Feedback Control system and software as other brookfield industries, inc. door operators. There are no limit or proximity switches to adjust or install for any of the door positions under normal operation.
- Page 8 A Rotary Position Transducer attached to the gear motor output shaft provides the position of the door. As the door changes position, the output signal from the transducer varies in value. This signal, once converted to a digital value, is stored in the CPU for further processing.
- Page 9 Supply Voltage: 230 VAC, +/- 10%, 60 Hertz, 3 phase 4 wires & GND (L1, L2, L3,.N & GND) are required to run the 3 phase motor and to provide 110VAC to the 24VDC power supply and PLC. The 3 phase AC Motor control and 110VAC power supply circuits are individually equipped with in-line circuit breakers for motor overload protection.
-
Page 10: Installation Instructions
Installation Instructions Although each Door Operator has been fully inspected and tested prior to shipment, assure that no physical damage has occurred during shipping and handling. Premature failure may occur if any part of the installation is not done properly. 1. - Page 11 18. Connect all Class (2) (24) VDC inputs per the Wiring Legend of Terminal Strip Hookup and the Wiring diagram. 19. All PLC and motor control settings have been preset by brookfield industries, inc.; however, we recommend these values be double-checked with the Parameter for NB-4120 sheet supplied.
- Page 12 1. To install the NB-4120-2 Single Belt refer to NB-4120-2M3. 2. Install the (2) Right Door Attachments (lower belt) as indicated on drawing NB-4120-2P2. Do not install the Left Door Attachment (upper belt) at this time. Assure the belt centerlines of the brackets are parallel with the track centerlines (shim as required) within (+/-) 1/16”...
- Page 13 19. Connect all Class (2) (24) VDC inputs per the Wiring Legend of Terminal Strip Hookup and the Wiring diagram. 20. All PLC and motor control settings have been preset by brookfield industries, inc.; however, we recommend these values be double-checked with the Parameter for NB-4120 sheet supplied.
-
Page 14: Dau Instructions
DAU Instructions DAU GT-01 Touch Screen 1. Plug the eight prong Phoenix Connector into DAU. For operator series before ‘G,’ use the black cable, plug the opposite round end into the PLC unit on the operator. For ‘G’ series and above, use the gray cable and plug the opposite round end into the receptacle on the end cover of the operator (right side). - Page 15 Door Position Setup and DAU Instructions GT-01 Touch Screen 1. Plug the eight prong Phoenix Connector into GT-01. For operator series before ʻG,ʼ use the black cable, plug the opposite ROUND end into the PLC unit on the operator. For ʻGʼ series and above, use the gray cable and plug the opposite ROUND end into the receptacle on the end cover of the operator (right side).
- Page 16 5. Youʼll be given a display of the first three user presets (Fig. 7). To edit a preset, simply touch the preset number. 6. A keypad will then display for entering the new preset (Fig. 8). Enter the desired value and touch the ENTER (bent arrow) key to set the value. Press ESC to cancel and go back to the preset list.
-
Page 25: Terminal Strip Hookup Legend (Power Supply And Class 2 Voltages)
NB-4120 UL 325 Industrial (Sect 30) TERMINAL STRIP HOOKUP LEGEND: (Supply Voltage: 230 VAC & Class 2 Power Supply: 24 volts DC) Use Copper Conductors only (maximum cross-section of terminals 4mm²) CLASS 2 POWER SUPPLY: 24 VOLTS DC FOR EXTERNAL HOOKUP: Use only type CL2, CL2P, CL2R ,CL2X or other cables with equivalent or better electrical, mechanical and flammability ratings. - Page 26 Wiring Diagram:NB-4120 Leeson 2HP AC Motor Field Wiring 208/230 VAC 3 Phase - 4 wire U to T7 & 1 V to T8 & 2 W to T3 & 9 KBVF-27 MotorDrive Multi-Speed Board L1 L2 L3 Position Transducer DO165-1:10 turn, 4.7K AC Inverter L1 L2 L3 DO818...
- Page 27 Presence Sensor/Reversing Edge Wiring to X3 input on PLC Entrapment Indicating Light 1.4 K-ohm Presence Sensor 24 VDC (Optional) (Required Device) Non-contact Presence Sensor (N.O.) (N.O.) Reversing Edge Switch (contact type) This devices is 'additional' or 'redundant' Fail Safe External Entrapment Devise Meeting requirements of UL 325 30.2 in order to Close Door this Devise MUST be Notes:...
- Page 28 Parameters for NB-4120 Door Operator Based on the following PLC and Motor Control Settings, the approximate time to travel 16’ is 30 seconds. PLC Settings: Full Close 320 (digital value) Full Open Travel (inches) x 21.3+320(digital value) Back Check = Full Open-255 (digital value) Latch Check = 575 (digital value)
- Page 29 Multi-Speed Board KB 9503 to KBVF-27 connections Red, Black & White wires to F-S-R connector Green, Black & White wires to 60 Hz connector Orange wire to P2 connector KBVF-27 220 VAC 3 -phase Motor Control Jumper Settings X1 X2 Trimpot Settings: COMP 50% or 1.5 volts/Hz...
-
Page 30: Maintenance Intervals
Maintenance Intervals Check all nuts, bolts and screws for tightness every 100,000 cycles. Also, inspect the operator for wear or damage to any of its components. The frequency of these inspections will vary upon the installation and will be directly proportional to the usage of the operator. -
Page 31: Limited Warranty
This amount may vary depending on the geographical location of the labor market. Travel expenses are not applicable. brookfield industries, inc. shall not cover, nor will the consumer have any benefits under this limited warranty if any of the following conditions apply to any returned parts as determined through an evaluation by brookfield industries, inc. - Page 32 Troubleshooting Guide Door Manually move door Movement RTDP has travel to closed position below 0 or above and adjust Moves in one 4000 transducer per direction, then manual reverses and stops Push Plate Only moves Malfunctioning in one direction Continues to Check/Replace autoreverse Push-plate...
- Page 33 Troubleshooting Guide Doesn't Move at Turn up speed pot adjustments Speed pots are preset 1-4. Set not turned up speed per ANSI chart in manual RTDP Reads 0 PLC not in RUN Check A/D Converter or mode, Move Transducer / A/D transducer is switch to RUN PLC Output relay...
- Page 34 Component Specific Problems DO165: Single Turn DO129: FPO-C14RS DO128: FPO-A21 DO127: FPO-PAS1 Potentiometer / Analog Unit Power Supply Transducer Door shuts off at Door moves 1/2 frame & oscillates open with full No power light & AND/OR continues DT User preset Red Error Light is open signal is no 24 VDC...
- Page 35 Component Specific Problems º Morse 90 Worm Gear Inline Gear Reducer Door exhibits Altered presets don't When plugged in, ALL presets and sluggish or no Back drive is over appear to set and/or PLC power light RTDP values movement and 40 lb.
- Page 36 Component Specific Problems DO 566: KB Motor Battery Backup Control Motor Hum or Door is sluggish Doesn't open run-on after PLC and speed pots door output has shut don't adjust speed Full open limit switch is Reverse / Forward Current Limits are DB Pot is set too low: turn up DB damaged or not installed: set too low for door installation...
