Summary of Contents for dallmeier VSC-1

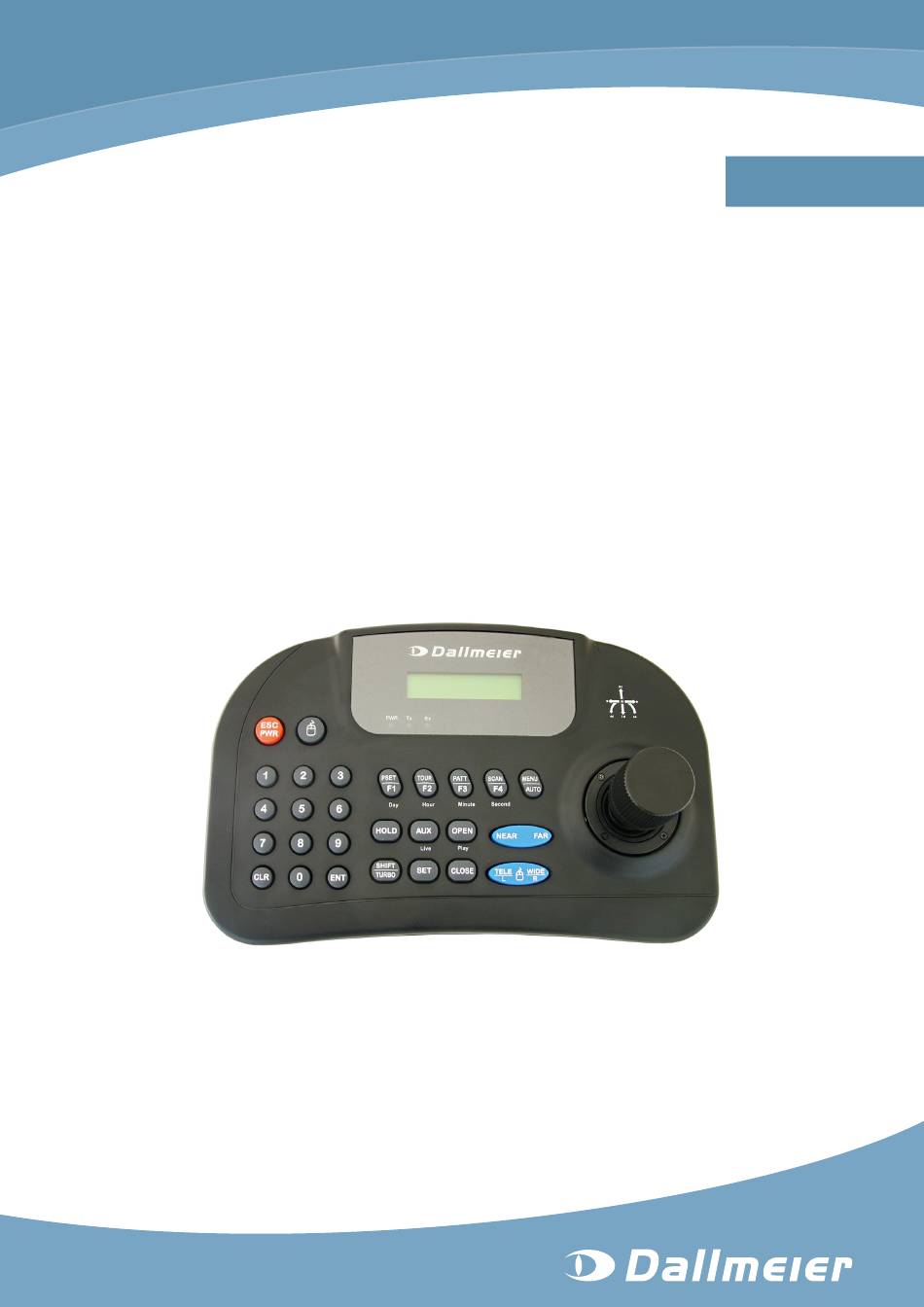

- Page 1 Installation and Configuration English Video System Controller VSC-1 Rev. 4.0.0 / 091223...
- Page 2 All rights reserved. This document may not be copied, photocopied, reproduced, translated, transferred to an electronic medium or converted to a machine-readable form either whole or in part without first receiving written permission from Dallmeier electronic GmbH & Co.KG. We reserve the right to make technical modifications.
-
Page 3: Table Of Contents
Play Control ....................13 Connections ....................14 Connection and Commissioning ...............15 Connection ....................17 5.1.1 VSC-1 and Recorder via USB...............17 5.1.2 VSC-1 and Recorder via DNI ................17 5.1.3 DNI and Dome Camera ................18 5.1.4 Connection DNI and Recorder ..............18 5.1.5 Connection DNI network ................19 Commissioning .....................19... - Page 4 VSC-1 Replay Control ....................27 7.2.1 Selecting a Track ..................27 7.2.2 Control of Replay ..................27 7.2.3 Search......................28 Maintenance ....................29 Technical Data .....................30 www.dallmeier.com...
-
Page 5: Introduction
VSC-1 Introduction Validity This document applies to the Video System Controller VSC-1. It has been produced on the basis of version D1.7 (software). Pictures in this document may differ from the actual product. Documents Commissioning The document entitled “Commissioning” contains the most important steps for the connec- tion and commissioning of the device. - Page 6 VSC-1 Expressions in bold/italics generally indicate a control element on the device (switches or labels) or on its user interface (buttons, menu entries). Paragraphs in italics provide information on basic principles, special features and efficient procedure as well as general recommendations.
-
Page 7: Safety Instructions
System components Only use internal components that have been tested and approved by Dallmeier. Inappro- priate internal components can cause malfunctions, damages and data loss and can result in loss of warranty. - Page 8 VSC-1 Burnt smell If you notice burnt smell or formation of smoke from the unit, immediately disconnect it from the power supply (pull out the power plug). Contact the sales partner responsible for your area. Opening The housing of the unit may only be opened by qualified personnel for commissioning, inspection, maintenance and repair.
-
Page 9: General Notes
Appropriate Use The Dallmeier VSC-1 (Video System Controller) is a keyboard for the remote control and display of up to 24 cameras. Its ergonomic design and compact configuration allow a user friendly and efficient operation even when little room is available. -
Page 10: Warranty
VSC-1 Warranty The terms and conditions valid at the signing of the contract shall apply. Approvals/Certifications Following approvals/certifications were valid at the time of document compilation. Refer to www.dallmeier.com for possible updates. • CE • FCC • RoHs www.dallmeier.com... -
Page 11: Key Assignment And Connections
VSC-1 Key Assignment and Connections Key Assignment Fig. 4-1 Fig. 4-2 ESC/PWR On / Off (push for more than 2 seconds), exit dialogue Maustaste Switching DNI / USB function Fig. 4-3 Number pad PTZ control: Selection – Camera, Preset, Scan, Pattern... -
Page 12: Ptz Control
VSC-1 4.1.1 PTZ Control Function Buttons Fig. 4-4 PSET/F1 Save and run presets (camera positions) TOUR/F2 Run a saved tour PATT/F3 Run a saved pattern (detailed tour) SCAN/F4 Run a saved pan range MENU/AUTO Dome camera configuration dialogue Keyboard function buttons Fig. -
Page 13: Play Control
VSC-1 Fig. 4-7 TELE/L – WIDE/R Zoom in / out 4.1.2 Play Control Function Buttons Fig. 4-8 PSET/F1 TOUR/F2 Hour PATT/F3 Minute SCAN/F4 Second Keyboard Function Buttons Fig. 4-9 Switching to live mode OPEN Switching to play mode Fig. 4-10... -
Page 14: Connections
VSC-1 Fig. 4-11 WIDE/R Play forward TELE/L Play reverse Connections Joystick Power USB interface Serial interface Data interface (inactive) Fig. 4-12 www.dallmeier.com... -
Page 15: Connection And Commissioning
DNI Connections only (PTZ Control only) Recorder DNI master DNI slave DNI slave Keyboard Dome cameras Fig. 5-1 VSC-1 and Dome are connected via a DNI. In this case searing is possible even if the re- corder is switched off. www.dallmeier.com... - Page 16 Dome cameras Fig. 5-2 The domes are connected via a DNI, the VSC-1 via the USB interface. The configuration of the DNI for the VSC-1 is not required. For further configuration examples refer to the DNI-1 documentation “Installation and Con- figuration”.
-
Page 17: Connection
5.1.1 VSC-1 and Recorder via USB The VSC-1 can be connected directly via a USB port to the recorder. Connect the VSC-1 to a recorder’s USB interface using a USB cable. Fig. 5-4 No further settings have to be made. -
Page 18: Dni And Dome Camera
VSC-1 Plug connector Fig. 5-6 DNI front view For detailed information refer to the DNI-1 documentation “Installation and Configuration”. 5.1.3 DNI and Dome Camera Use a two-wire line to connect the second DNI interface and the dome camera. Rx+ (Dome) to data input A TxD+ (DNI) Rx- (Dome) to data input B TxD- (DNI) ... -
Page 19: Connection Dni Network
When commissioning observe the following order: Connect the DNI master to power supply if required. Connect the dome camera to power supply. Connect the VSC-1 to power supply. Connect the recorder to power supply. Start the recorder. -
Page 20: Configuration
VSC-1 Configuration The relevant monitor (VGA or CVBS) and the permission to use the VSC-1 can be set on the recorder independent from the type of connection (DNI or USB). Configuration of the serial interface and the DNI protocol is only required if a DNI is used. -
Page 21: Connection Dni
VSC-1 Set the Permission for the Sequencer / Live mode. Finally confirm with OK. Connection DNI 6.2.1 Serial Interface After connecting the DNI master the serial interface must be configured accordingly. Open the Serial Interfaces dialogue via Setup > Interfaces > Serial. - Page 22 The DNI master is always on top of the list and grayed. It can not be selected, because the protocol (DMS-DNI X, version 4 or higher) may not be changed. The DNI slaves (connected to VSC-1 or dome) are will be displayed sorted by their serial number.
-
Page 23: Control Protocol Vsc
VSC-1 Control Protocol VSC Camera and VSC-1 must be assigned the appropriate protocols. NOTICE These values must be set on the VSC-1 for every connected camera: MODEL: DNI PROTOCOL: PEL-P BAUDRATE: 4.8K PARITY: NONE Open the camera configuration dialogue via the shortcut 1 + SET (push 2-3 seconds). - Page 24 VSC-1 7. SLEEP: Set whether the keyboard is to change automatically into a sleep mode during disuse (intervals: 1 min. / 5 min. / 10 min. / 30 min. / 1 hour). 8. BUZZER: Keytones 9. BACKLIGHT: Display backlight (ON/OFF/AUTO) 10. MOUSE SET: Sensitivity of the mouse control (inactive).
-
Page 25: Operation
VSC-1 Operation Switch between DNI and USB if required. Note the information in the display. PTZ Control 7.1.1 Selecting Cameras You can select a connected dome camera via the numeric pad. Enter the number of the camera (e.g. 1 for camera 1). -
Page 26: Functions
Enter the number of the preset via the numeric pad. Press the PSET button. In contrast to the following features a preset can be defiend with the VSC-1. Move the camera to the relevant postiton. Press the PSET button for about 5 seconds. -
Page 27: Scan
VSC-1 7.1.3.4 Scan A scan stores twice the position and the camera’s focus and a defined speed of movement. After activation of this preadjustment, the camera moves continuously moves with the de- fined speed between the two positions. Select the relevant camera. -
Page 28: Search
VSC-1 Rotate the joystick for fast forward to the right. Rotate the joystick for a quick return to the left. Button Control Press the WIDE/R button (forward replay) or the TELE/L button (reverse replay), in or- der to obtain a permanent replay. -
Page 29: Maintenance
VSC-1 Maintenance The housing of the unit may only be opened by qualified personnel for commissioning, inspection, maintenance and repair. Cleaning If it’s necessary to clean the device, observe the following notes: NOTICE Damage to the surface of the device ... -
Page 30: Technical Data
VSC-1 Technical Data Supported protocols Pelco D, Pelco P Supported functions Speed, pan/tilt, focus, zoom and iris functions Baud rate 2.4 – 57.6 kbps Interfaces 1× USB 1.1 (up recorder version V6.3.0) Serial 1× RS422, 1× RS485 Display LCD display (2 lines)
