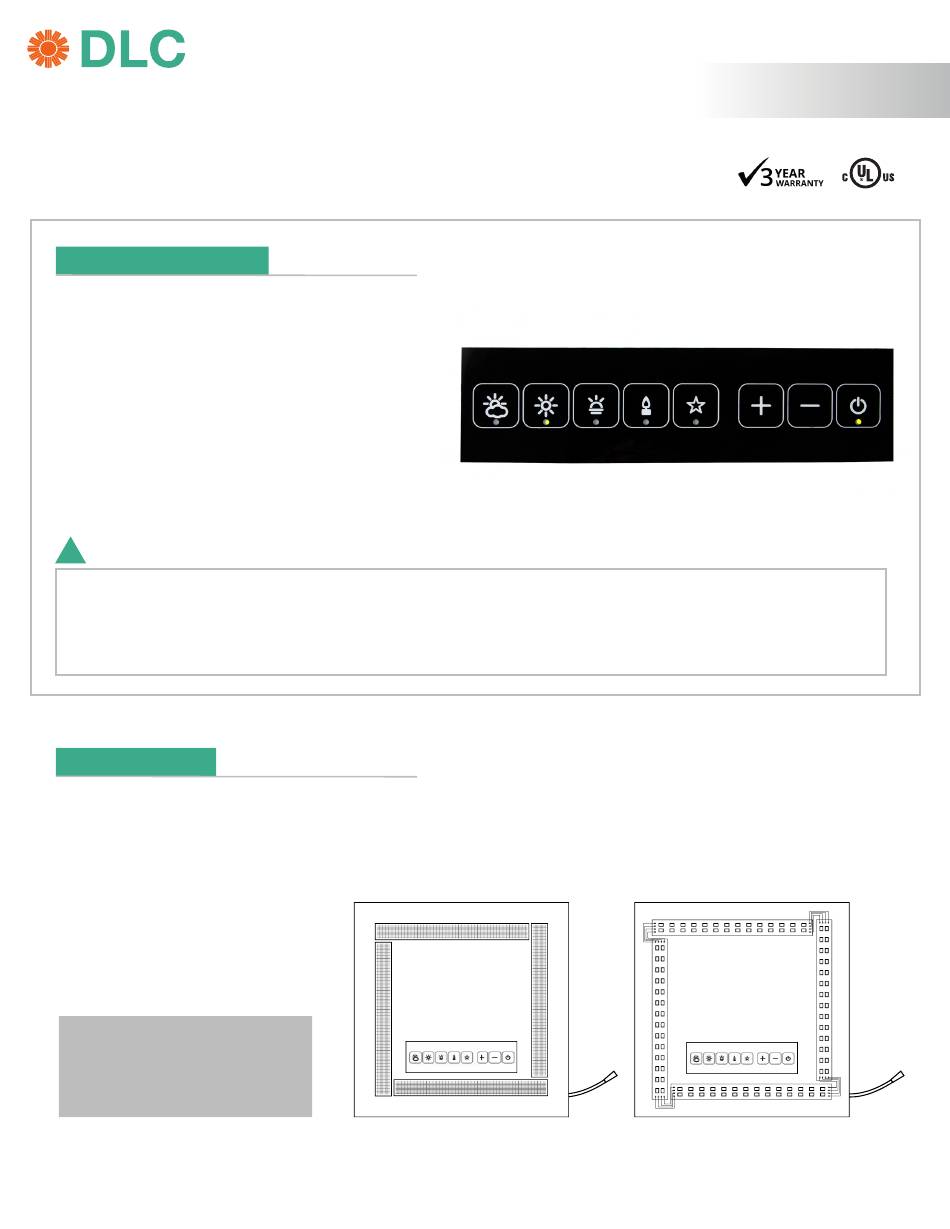

OMNI CONTROL
TOUCH LED CONTROLLER FOR MIRRORS
PR ODU CT OVERVI EW
Input Voltage: 12 VDC / 24 VDC
Operating Temperature: -30 °C (-22 °F) ~ +40 °C (+104 °F)
Location: Dry location only (standard)
COMPONENTS:
•
Omni Control
•
Low iron mirror glass that is less than 0.2" (6 mm) in depth
•
LED lighting (LumiSheet / Hard PCB lighting)
•
Power adapter
•
Double-sided tape (supplied)
!
SAFETY
•
Only install in dry environments
•
Handle with care to ensure electronic components are not damaged during installation
•
Use only with a Class 2 power adapter
•
Omni Controller works only with low iron glass less than 0.2" (6 mm) in depth
INS TALL A TION
MOUNTING:
Lighting
•
Mount lighting products as specified in
product installation guide
•
For lighting behind mirror (with silvering
removed), speak with your DLC
representative
(See examples)
Contact your DLC representative
before attempting any other
mounting option.
LumiSheet Example
Surface brightness: ~ 3500 Lux
INSTALLATION GUIDE
Hard PCB LED Example
Surface brightness: ≤ 10,000 Lux
12 VDC /
24 VDC
WWW.DLC-LUMISHEET.COM
DOC #1317
12 VDC /
24 VDC
1
Advertisement
Summary of Contents for DLC OMNI CONTROL
- Page 1 Mount lighting products as specified in Surface brightness: ~ 3500 Lux Surface brightness: ≤ 10,000 Lux product installation guide • For lighting behind mirror (with silvering removed), speak with your DLC representative (See examples) Contact your DLC representative 12 VDC / 12 VDC /...
- Page 2 MOUNTING: Omni Control Touchpad Omni Control touchpad is designed to be placed behind mirror glass. For the unit to be seen through the mirror glass, silvering needs to be removed where the touchpad will be placed. Determine, then measure, the area of the touchpad you Mark in pencil the corners where Omni Control touchpad would like seen through the mirror glass ( “touchpad...
- Page 3 WIRING: Determine your system components, including a power adapter, as well as LED lighting. Omni Control works for both 12 VDC (max 40 W) or 24 VDC (max 80 W) systems. Use only UL certified power adapters with the power output that coordinates with your input voltage.
