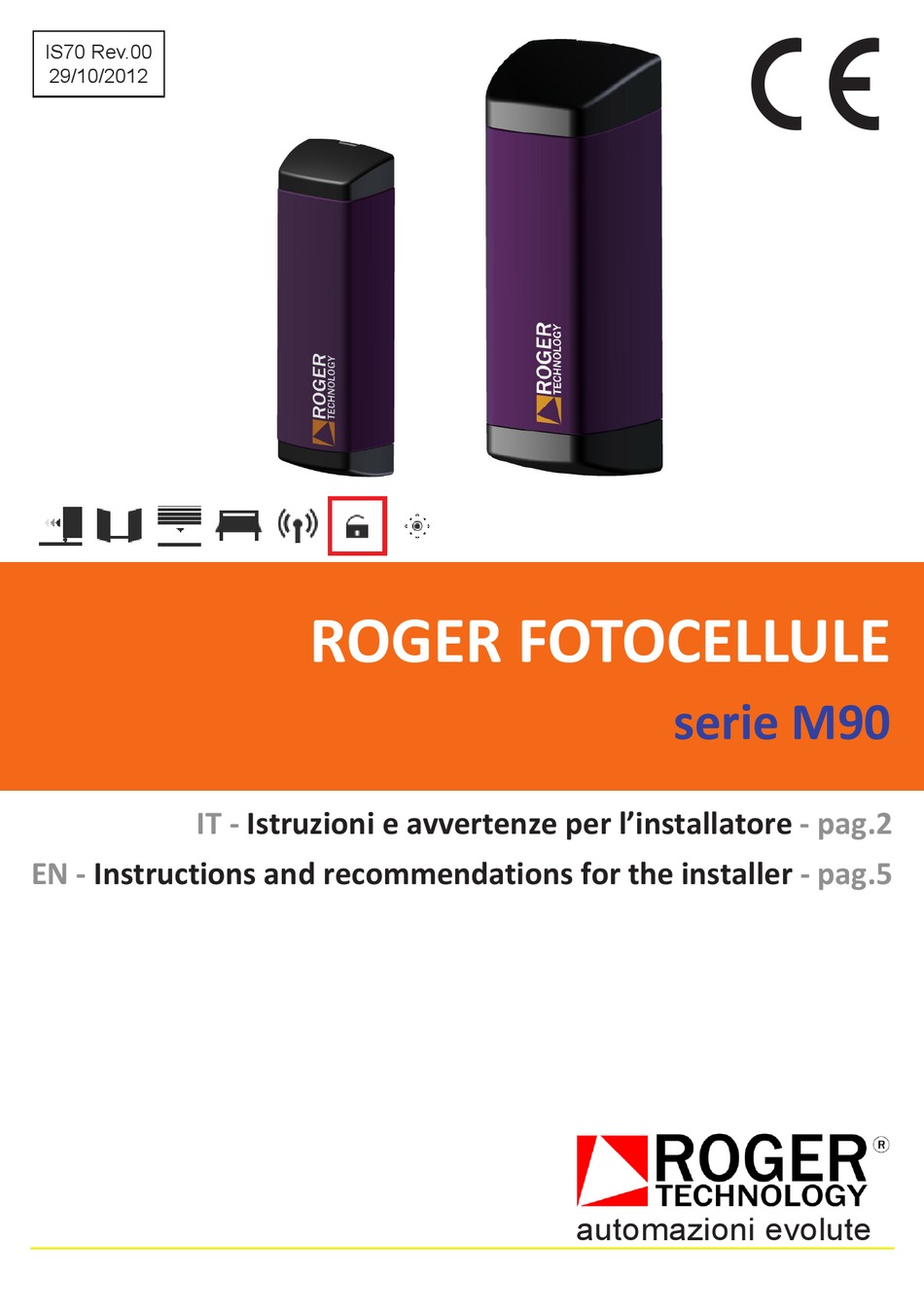

- Page 1 IS70 Rev.00 29/10/2012 ROGER FOTOCELLULE serie M90 IT - Istruzioni e avvertenze per l’installatore - pag.2 EN - Instructions and recommendations for the installer - pag.5 automazioni evolute...

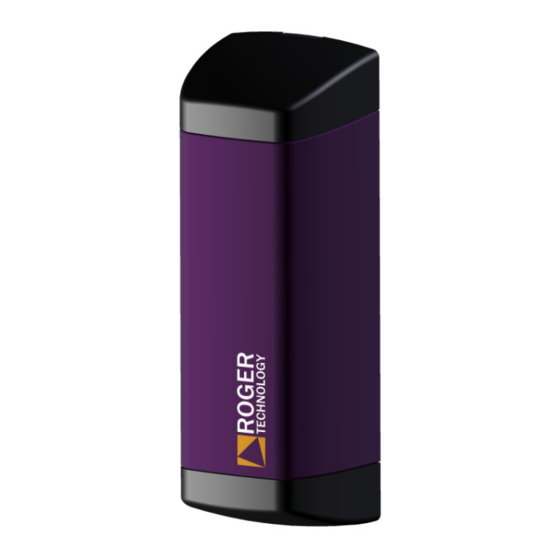

- Page 2 Introduction to the instructions and warnings Product description This manual is intended only for professionally The synchronized photocells M90/F2ES and qualified installers. M90/F2ESO are obstacle detectors with infrared No information included in this document can be technology, that permits to detect obstacles considered interest for the end-user.
-
Page 3: Installation
Technical features of the product M90/F2ES — M90/F2ES0 ADOPTED TECHNOLOGY Direct optical interpolation between the photocell TX and the photocell RX with modulated infrared ray VOLTAGE 12/24Vac 50Hz, 12/24Vdc CURRENT ABSORPTION TX=19mA, RX=20mA WAVELENGTH INFRARED 880 nm EMISSION ANGLE OF EMISSION DIODE <17°... -
Page 4: Maintenance
vertical axis. It allows to correct centering between of the photocells and the possible interference with the photocells in installations with fixing surfaces other transmission devices with infrared light that that are parallel to each other. are installed nearby. For setting up the horizontal axis, loosen up the Activate the control device to which are connected two screws indicated with number 1 in the picture the photocells. - Page 5 Illustrazioni e schemi - Pictures and schemes FOTO 1 3 4 5 2 3 4 5 12/24Vcc 12/24Vac FOTO 2 3 4 5 12/24Vac...
- Page 6 23.5 M90/F2ES M90/F2ESO...
-
Page 7: Dichiarazione Di Conformita
DICHIARAZIONE DI CONFORMITA’ DECLARATION OF CONFORMITY Il sottoscritto, rappresentante il seguente costruttore The undersigned, representing the following manufacturer Roger Technology Roger Technology Via Botticelli 8 Via Botticelli 8 31020 Bonisiolo di Mogliano V.to (TV) 31020 Bonisiolo di Mogliano V.to (TV) DICHIARA che l’apparecchiatura descritta in appresso:...
