Installation Of Nanoasr With Replacement Of Wires - Gate NanoASR User Manual

BATTERY
up to 14.8V

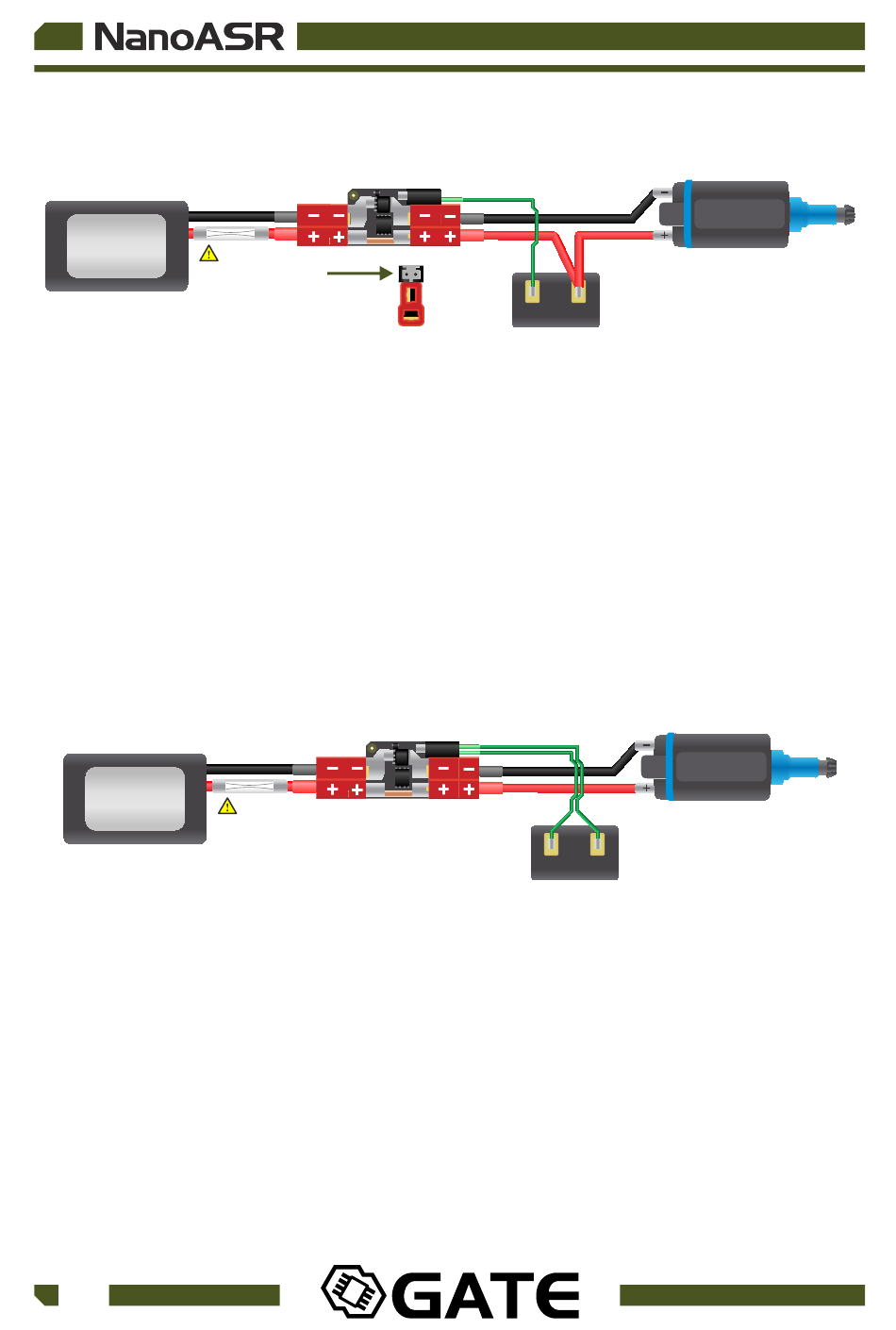

Fig 2. Connection-modification scheme - the top view
b) Installation of
Replacing the existing AEG wiring with a high-quality, low-resistance wiring in
conjunction with the installation of a MOSFET allows for the ultimate in efficiency.
16 awg or thicker wire is recommended. Solder the double signal wire (04 -
provided with the kit) to the contacts, according to the Figure 3.
BATTERY
up to 14.8V
08
FUSE
TOP PIN
NanoASR
with replacement of wires
FUSE
Fig 3. Complete re-wiring scheme
03
CONTACTS
04
CONTACTS
