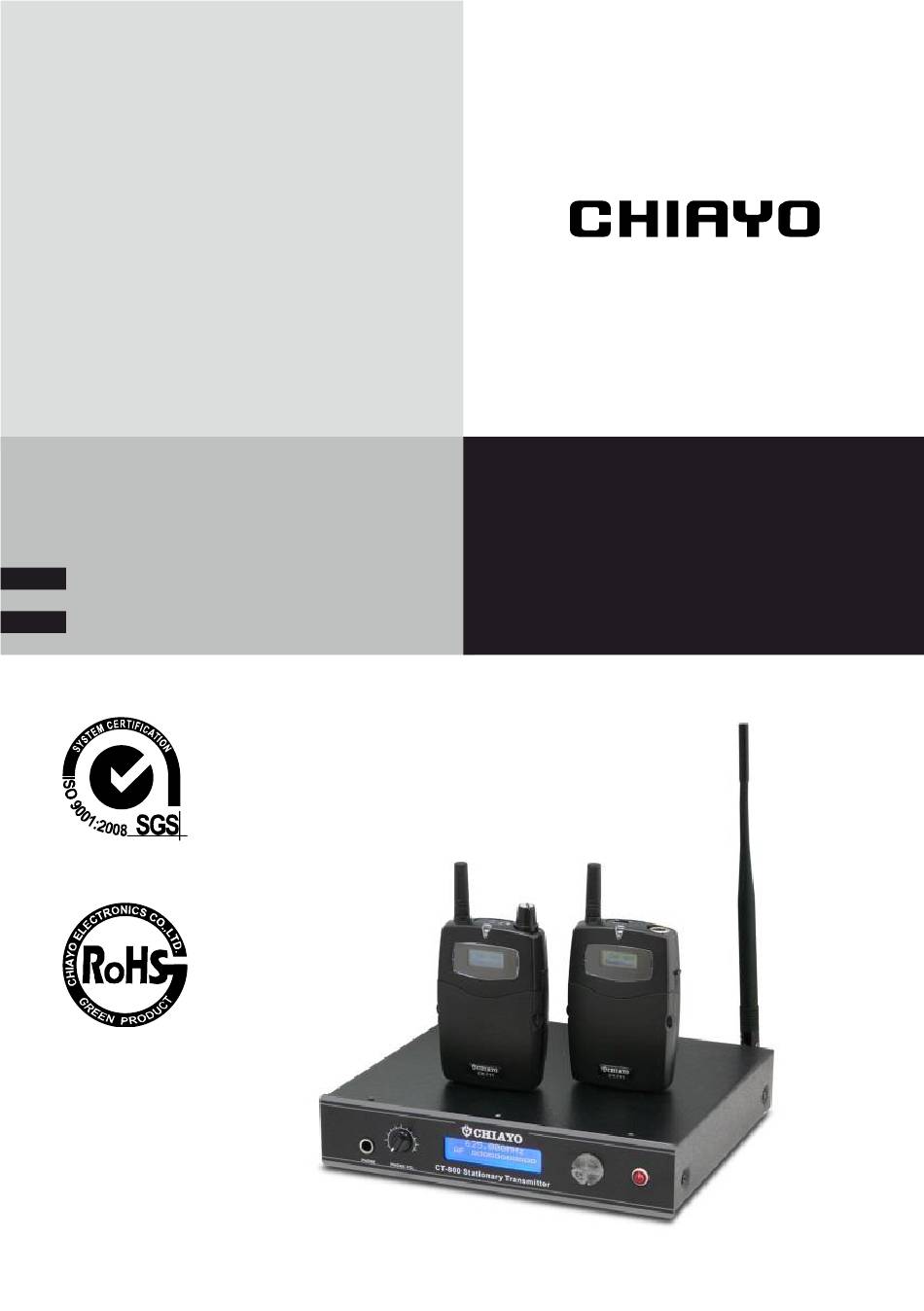

- Page 1 CT-800/CT-711/CR-711 Operation manual Language Assistant / Tour Guide System CHIAYO ELECTRONICS CO., LTD.
- Page 2 CT-800/CT-711/CR-711 Language Assistant / Tour Guide System Introduction Congratulations and thank you for purchasing CT-711/CR-711/CT-800 tour guide/assistive listening system. This system is PLL-synthesized with 100 channels. Please read this manual thoroughly to familiarize yourself with its controls and functions. Applications CT-800: Stationary transmitter ...
- Page 3 CR-711: Many CT-711 CR-711 Parts and functions of CT-800 stationary transmitter MENU ① Monitor earphone input (6.3mm) ② Earphone volume control ③ LCD ④ UP button ⑤ DOWN button ⑥ MENU button ⑦ SET button ⑧ Power control PUSH ⑨...
- Page 4 CT-800/CT-711/CR-711 Language Assistant / Tour Guide System Changing channel/frequency Press the MENU button to choose Press and hold SET button 3 seconds and CHANNEL-AF page. the channel number will flash to denote readiness for setting. ► ► After a channel is chosen, press SET button...
- Page 5 Instructions Audio input and gain setting There are two audio inputs with individual control on the rear panel. Each audio input has its own GAIN control to adjust the sensitivity level. Higher sensitivity will lower the dynamic range of input signals, which may result in more noise and feedback problem. Please set the sensitivity at a proper level.
- Page 6 CT-800/CT-711/CR-711 Language Assistant / Tour Guide System Parts and functions of CT-711 Mini transmitter 14 15 ① Power control ② Antenna ③ Battery/charging indicator ④ LCD ⑤ Cover release buttons ⑥ UP button ⑦ DOWN button ⑧Sensitivity control ⑨ SET button ⑩ Battery compartment ⑪ Charging port ⑫...
- Page 7 Instructions Changing battery type Press the ▲▼ buttons to select either NiMH Press the SET button to choose BATTERY TYPE page. (rechargeable battery) or AKLN (alkaline battery). ► ► After a battery type is chosen, press SET button or wait 5 seconds to store the setting. Battery charging NiMH battery must be selected when rechargeable battery is in use.
- Page 8 CT-800/CT-711/CR-711 Language Assistant / Tour Guide System Parts and functions of CR-711 Mini receiver ① Power control ② Antenna ③ Battery/charging indicator ④ Volume control ⑤ LCD ⑥ Cover release buttons ⑦ UP button ⑧ DOWN button ⑨ SET button ⑩ Battery compartment ⑪ Charging port ⑫...
- Page 9 Instructions Changing battery type Press the ▲▼ buttons to select either NiMH Press the SET button to choose BATTERY TYPE page. (rechargeable battery) or AKLN (alkaline battery). ► ► After a battery type is chosen, press SET button or wait 5 seconds to store the setting. Channel programming Channel programming allows user to determine whether a channel to be functional or not.
- Page 10 CT-800/CT-711/CR-711 Language Assistant / Tour Guide System Channel scanning For an interference- free operation, a cleaner channel might be necessary if the current one receives too much interference. Press the ▲▼ buttons to find and locate a Press the SET button to choose SCAN UP/DW page.
- Page 11 Instructions Battery charging NiMH battery must be selected when rechargeable battery is in use. DO NOT select AKLN (alkaline) when transmitter is intended for charging as alkaline battery isn’t rechargeable. Wrong battery setting will affect battery sensing electronics and may display wrong status information. Charging indicator During charging Fully charged...
- Page 12 (2) This device must accept any interference received, including interference that may cause undesired operation. CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan...
