Skycut C Series Manual

Hide thumbs Also See for C Series:
Table of Contents

Advertisement

Quick Links

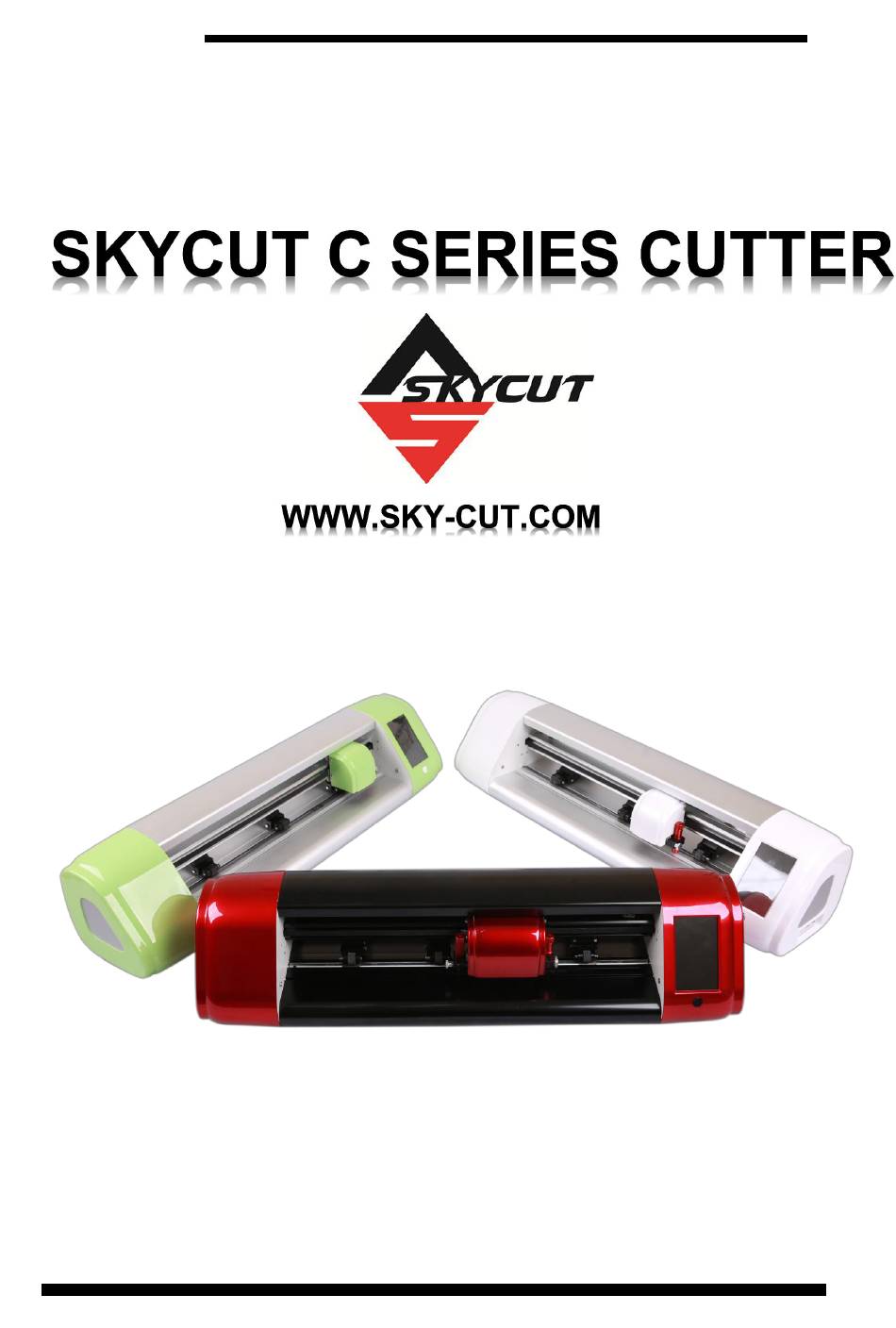

SKYCUT
CUT_C MANUAL
Version：CUT_C V2.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skycut C Series

Summary of Contents for Skycut C Series

  • Page 1 SKYCUT CUT_C MANUAL Version：CUT_C V2.0...
  • Page 2 SKYCUT CUT_C MANUAL Chapter One Safety Precaution Chapter Two Standard Parts Chapter Three Installation 3.1 Installation and Connection 3.1.1 Cutting Environment 3.1.2 Connect cutter to PC 3.1.3 USB Driver Installation 3.2 Cutting Media Installation 3.3 Tools Installation Chapter Four WIFI Setting...
  • Page 3 SKYCUT CUT_C MANUAL 7.15 Unit setting 7.16 Screen back ground setting 7.17 LED light setting 7.18 WIFI setting. 7.19 Quick return to main interface 7.20 Offset Chapter Eight Specification operation Chapter Nine Warranty Chapter Ten Trouble shoot...

  • Page 4: Safety Precaution

    SKYCUT CUT_C MANUAL Chapter One Safety Precaution The following icons are used in the manual; aims to make sure the user operate the cutter properly to avoid damaged the cutter. Please comply with the explanation of the icon. 1.1 Definition of Warning Symbols：...
  • Page 5 SKYCUT CUT_C MANUAL If you are not going to use the machine for a long time, please unplug the power cable from the receptacle, otherwise fire possibly happens. When operating the machine, do not place either of your hands on capstan to avoid injury.

  • Page 6: Standard Parts

    SKYCUT CUT_C MANUAL Chapter Two Standard Parts Number Item Icon Power cable DC24V3A Power supply USB cable Blade holder blade Pen holder Lead User's manual/Driver software/Video disk Flexi software(option) disk...

  • Page 7: Chapter Three Installation

    SKYCUT CUT_C MANUAL Chapter Three Installation Installation and Connection 3.1.1 Cutting Environment Place the cutter in adequate space in case to replace. The place for installing the cutter shown as below。 VinylCutter Don’t install your cutter in the following place...
  • Page 8 SKYCUT CUT_C MANUAL 3.1.3 USB Driver Installation ①Download USB driver from web,find out folder with file When first time use cutter,need to install USB driver. (ftdi_ft232_drive),double click ftdi_ft232_drive.exe,computer will shows following window The window will be closed automatically after finish installation.
  • Page 9 SKYCUT CUT_C MANUAL MANUAL Then,click “Device Manager” “USB Serial Port(COM4)”, COM4 is the COM port the machine is using now. Cutting Media Installation Cautions of Media Preservation - Keep the media away from direct sunlight and water when before and after unpacked.
  • Page 10 SKYCUT CUT_C MANUAL MANUAL 3.2.2 Insert the media into the space between paperweight wheel and main shaft, and pull out the media to appropriate length from the front of the host. 3.2.3 Move the paperweight wheel to the white identified area, then adjust position of the media.
  • Page 11 SKYCUT CUT_C MANUAL Compare with 45ºand 60ºblade of SKY Degre Using scope Advantage Disadvantage More attrite than 45 the quality of cutting small world big word over degree and Can cut and high precision picture is not 30º 20mm thick and hard...
  • Page 12 SKYCUT CUT_C MANUAL 3.3.3 (1) Loosen the screw of tool carrier. (2)Assembly the tool with blade into tool carrier (3)When the tool is in appropriate position screw it and tight the screw.

  • Page 13: Wifi Setting

    SKYCUT CUT_C MANUAL Chapter Four WIFI Setting 4.1 Power on cutter,go to【WIFI Setting】 interface,press 【Default ALL】 more than 3seconds until the color change to red,it means default setting as wifi connect now(it will start wifi,you will see on the top of the screen).Wait few seconds,then,you can use AP connect mode to connect WIFI.
  • Page 14 SKYCUT CUT_C MANUAL After connect succeed,check IP address 192.168.16.254 is default IP address of WIFI.If computer shows this IP address,means WIFI connect succeed.If can not show this IP,means WIFI connect failed.Please wait about 30 seconds,if still can not connect,please check if input password correct,it is 12345678.
  • Page 15 SKYCUT CUT_C MANUAL Then，click “OK”. Make sure change SERIAL XON/XOFF: to Enable(same as bellow). Then,click Apply. After that,we complete WIFI setting.Under this mode,the setting in flexi is like below.
  • Page 16 SKYCUT CUT_C MANUAL 4.3 WIFI connect to work or family local network. Connect WIFI to family router.Like below pic,select WIFI(CLIENT)-SERIAL mode.then,click Scan,find out the SSID of the router. Input correct password. Recommend set IP Type as STATIC mode.If so,once power on machine,we will know machine IP address.And other setting will be set according to...
  • Page 17 SKYCUT CUT_C MANUAL Port Number setting Change port number,like below,you can set default value 8080 to 9100. 4.5 Notice: WIFI setting will be saved auto.No need to reset when power on machine next time. No need to change serial port setting,especially Serial Configure.Please keep it as...

  • Page 18: Parts Name

    SKYCUT CUT_C MANUAL Chapter Five Parts Name Front View 1. Left cover 2. Top cover 3. Carriage cover 4. Right cover 5. Touch screen 6. Bottom base 7. Pinch wheels 8. Carriage 9. Steel axis 10. Jaw clamp 11. Power button...
  • Page 19 SKYCUT CUT_C MANUAL Back View 1. Decorative part 2. Pinch wheel wrench 3. paper pinch wheel beam 4. Beam 5. Foot 6. USB driver interface 7. USB cable interface 8. power interface...

  • Page 20: Chapter Six General Setting

    SKYCUT CUT_C MANUAL Chapter Six General Setting Main Menu Once power on,cutter will reset and set to main menu.Here are 3 main functions on main menu 【MotorSet】，【Camera】，【SysSet】 Press each function key to enter corresponding function interface. MotorSet Press 【MotorSet】in main menu to carriage movement setting.
  • Page 21 SKYCUT CUT_C MANUAL setting. 6.2.9【Pause】touch 【Pause】,cutter will pause working(if pause takes effect,the background color will change to red,otherwise,the color will not change),when the background color is red,touch 【 Pause】 will continue current working. 6.2.10 Press【Cancel Work】,cutter will cancel current work...
  • Page 22 SKYCUT CUT_C MANUAL One head Double heads a．Touch 【+】under X Scale to increase X scale value,long press will raise increase speed. b．Touch【-】under X Scale to reduce X scale value,long press will slower reducing speed. c．Touch 【X Default】under X Scale to recover X value as factory default value 1.000000;...
  • Page 23 SKYCUT CUT_C MANUAL 6.2.12 Touch 【U Disk Cut】to go to U Disk setting.The bar in the middle is for showing the percent of cutting progress.And the top of the bar is the name of the file that is being cut.

  • Page 24: Camera Interface

    SKYCUT CUT_C MANUAL Camera interface Touch 【Camera】in main menu to go to camera interface 6.3.1【Align】use for alignment mark point 【Align】use for calibrate 6.3.2 Photo will be showed on the top of screen. 6.3.3 Touch 【Get PIC】to take a photo and shows on the top of screen.
  • Page 25 SKYCUT CUT_C MANUAL 【 X+】, 【X-】，【Y+】, 【Y-】to move the red cross in the image to the center of MARK,then touch 【OK】,the carriage will move to the place close to MARK point and will get a photo again.Once the X,Y imaginary lines are in the middle of MARK X,Y lines,means the mark is at the center of image now.
  • Page 26 SKYCUT CUT_C MANUAL 6.3.8 When 【Align】take effect.Touch 【Set】to set following setting: Touch the box after 【Auto Mark】 ,if shows “√”，means cutter will auto search and alignment MARK when operate print and cut feature(user need to select “√” if need to use auto print and cut feature.).Under this mode,the image on screen will be white and...
  • Page 27 SKYCUT CUT_C MANUAL 6.3.9 When 【Adjust】 take effect,touch 【set】 to do the following Setting: Touch 【16B○】or【8B○】to se the color of image. 【16B⊙】is colorful, 【8B⊙】is gray image. Sysset menu Touch 【SysSet】in main menu to go to basic setting interface. 6.4.1 Touch 【WIFI Setting】, 【LED Setting】，【Language Setting 】，【Unit Setting】,【Color Setting】，【Sys Information...
  • Page 28 SKYCUT CUT_C MANUAL 6.4.3 WIFI setting Touch 【WIFI Setting】 to set WIFI ① Long press 【Default ALL】 3 seconds until the color change to red,now WIFI is reset to default setting AP mode.WIFI terminal can search WIFI hotspot(WIFI default SSID is HL-LINK_xxx or serial)to connect.Passport is 12345678;...
  • Page 29 SKYCUT CUT_C MANUAL 6.4.4 LED light bar setting Touch 【LED Setting】to set LED light ①．Touch or slide 【R】to set the RED brightness,0-255 grades adjustable. ②．Touch or slide 【G】to set the Green brightness,0-255 grades adjustable. ③．Touch or slide 【B】to set the Blue brightness,0-255 grades adjustable.
  • Page 30 SKYCUT CUT_C MANUAL 6.4.6 Back ground color setting Touch 【Color Setting】to set background color ①．Touch 【Color x】to select color as background color ②．Touch 【Cancal】or【OK】to exit setting. System information interface. Touch 【Sys Information Setting】to check hardware and software...

  • Page 31: Power Off

    SKYCUT CUT_C MANUAL Chapter Seven Function and Power on Plug power supply,short press power button to power on cutter,once Power off Long press power button more than 2seconds.power on,screen will Pressure,speed setting Go to 【MotorSet set】, “US”is the speed of carriage moving(no cutting).
  • Page 32 SKYCUT CUT_C MANUAL Original point setting Go to 【MotorSet】,touch 【X+】，【X-】，【Y+】, 【X-】to move carriage to the place you want to start cut. Test cut Test tool installation ,pressure and speed. Before cut a job,put material and install tool,then set appropriate force and speed.
  • Page 33 SKYCUT CUT_C MANUAL calibrate value will be saved auto. Before Calibrate Calibrated Calibrate (two heads，D Serial machine) Calibrate offset of two heads,and the offset of each head and camera. ①.【MotorSet】【Use double Head】,make sure “Use double Head”is selected. ②.【Camera】【check】【Start】to start calibrate,each tool will drew “田”,and take a photo auto(photo is the area that drew by right head).
  • Page 34 SKYCUT CUT_C MANUAL point can be showed clear in the image. normal less threshold value over over threshold value Auto contour cut feature. 7.10 a. Calibrate blades(see 6.7 calibrate) b. Open or import a graph from FLEXI, pitch on it, then click Effects—...
  • Page 35 SKYCUT CUT_C MANUAL e. Put printed out material on cutter and press down pinchwheels f. Set camera threshold value(see 6.9 threshold setting) g. Go to 【MotorSet】,move the tool to the right bottom MARK. h. Set in flexi,“File”then“Cut Contour...”will see below dialog box After click “Send”,will popup following dialog box,cutter will align 3 mark...
  • Page 36 SKYCUT CUT_C MANUAL Manually contour cut 7.11 Make sure DON”T select The steps of manually contour cut is the same as auto contour cut,but no need to set prefect threshold value. After click”Send”,cutter will take the photo of right bottom mark.Move red”+” to the center of MARK,click [OK],repeat this step until the blue + and red+ are completely coincide with MARK.Then,click [OK]to align next MARK.

  • Page 37: U Disk Operation

    SKYCUT CUT_C MANUAL U disk operation 7.13 ①．Use cutter software to save cut file to xxx.plt format. ②．Copy the xxx.plt file to U dick and plug U disk to machine. ③．Touch 【U Disk Cut】,go to 【Open File】,then,touch the U disk name to go to U disk ,and select xxx.plt.Then touch xxx.plt to wait until go back...

  • Page 38: Language Setting

    SKYCUT CUT_C MANUAL Language setting 7.14 Go to 【Language Setting】to select language. Now,only Chinese and English,more languages are available according to OEM request. Screen back ground color setting 7.15 Go to 【Color Setting】to select background color LED light setting 7.16 Go to 【LED Setting】to set red,green,blue proportion to get different color...
  • Page 39 SKYCUT CUT_C MANUAL Offset 7.19 7.19.1 If the cut result is not closed,please check offset(You can set offset in software),like below: No close,without offset good offset 7.19.2 If the line is not straight,please check offset,like below: Good offset less offset...

  • Page 40: Specification

    SKYCUT CUT_C MANUAL Chapter Eight Specification Model USB cable,USB driver USB cable, Udisk USB cable,U U S B cable,U Connector disk,WIFI disk,WIFI fast ,automatically and high precision contour cut Contour cutting function LED light buy usingcamera. (patent number: 201620006950.X) Contour cutting...

  • Page 41: Warranty

    SKYCUT CUT_C MANUAL Chapter Nine Warranty The warranty period(1year) refers to the date purchased the machine. If any defects happened within the warranty period, distributor can send back damaged parts to manufacturer for free of charge repairing service.Users shall be responsible for the delivery charges from/to service center Within the warranty period,following situations shall repair in charges: 1.Any defects or damages caused by inaccuracy operation without guided with...

  • Page 42: Troubleshoot

    SKYCUT CUT_C MANUAL Chapter Ten Trouble shoot trouble reason solution 1.can not power on a. Power is not being fed to the cutting a. Check to confirm that the plotter power cord b.Service voltage is wrong is securely connected to the cutting-...
  • Page 43 SKYCUT CUT_C MANUAL 5.Can not connect USB a.Cutter com port and software com port a. Make sure the cutter com port are different and software com port setting are the b. BR rate are different same c. USB cable is not be pluged properly b.Check if the software BR rate is...
  • Page 44 SKYCUT CUT_C MANUAL 13.The cutting start and end The data is not connected Check by plotting using a pen, and points for figures do not drew the file match. speed is too fast. The film is too flimsy Reduce speed Use a...
