Summary of Contents for SlingBoard SlingStick

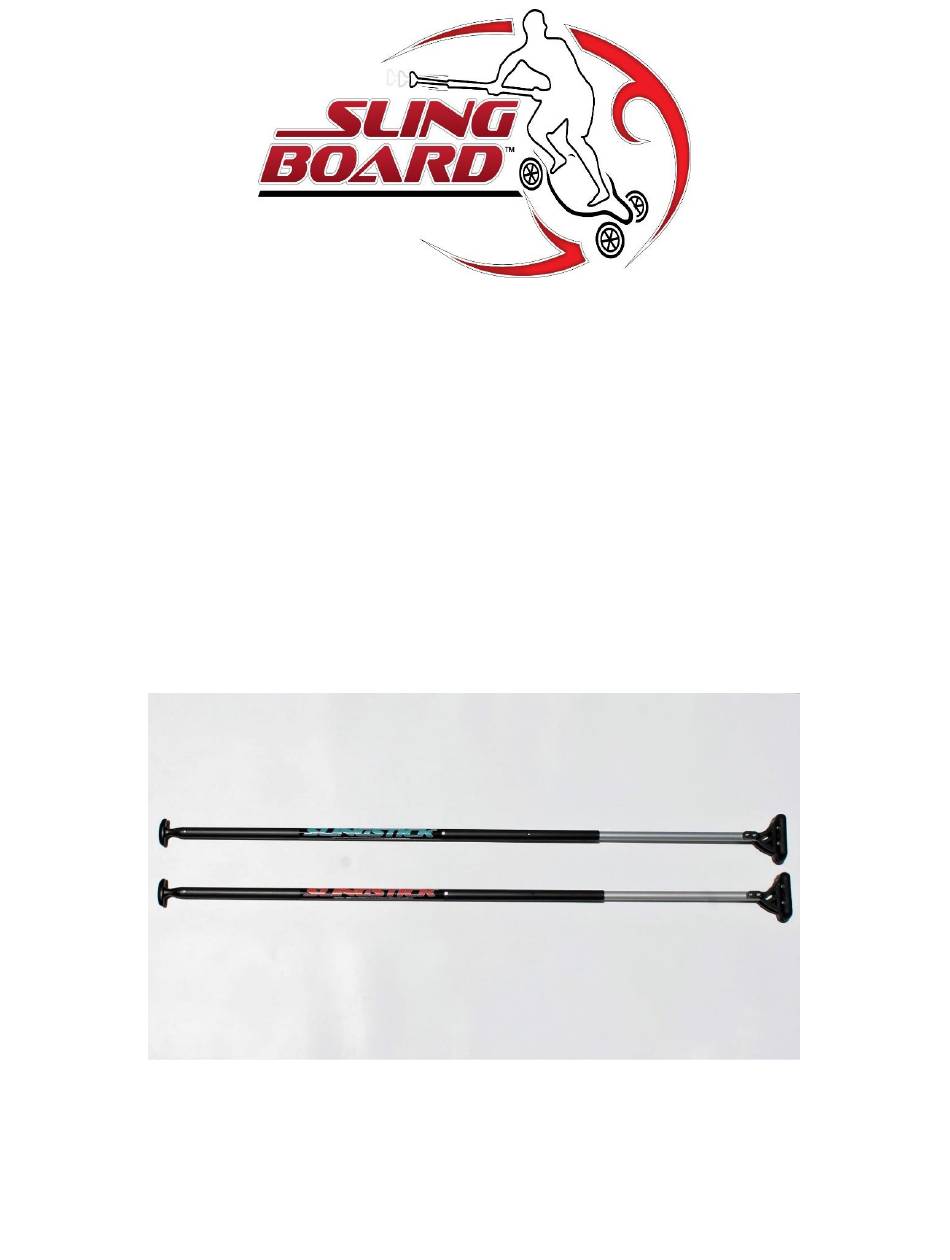

  • Page 1 SlingStick Instructions Page 1 of 21...

  • Page 2: Table Of Contents

    Thank you for selecting the SlingStick! Table of Contents WARNINGS!! ..................................3 SAFETY PRECAUTIONS!! ..............................3 SET UP ....................................4 CHANGING TO “LOCKED” MODE ........................... 6 CHANGING OR REPLACING THE POWER BAND ...................... 8 REPLACING THE FOOT PAD ............................17 CONTACT US ..................................

  • Page 3: Warnings

    For your safety, do not SlingBoard if you are pregnant. • The SlingStick should always remain out to your side, at least one foot out from the edge of the SlingBoard. Keep the SlingStick out that distance from the SlingBoard to minimize any chance of it hitting the board or wheels, which could cause an abrupt stop and serious injury.

  • Page 4: Set Up

    2. Next turn the SlingStick and thread the short end of the Post Bolt into the long end through the hole in the other side. Use a flat head screw driver to tighten it down snug. Your SlingStick is now ready to operate in the “POWER RESPONSE”...
  • Page 5 3. Hold your SlingStick in the position you would paddle in to determine if the Handle is set in the position that is most comfortable of you. If so, you may move on to step 5 in these instructions. If not, it is easy to turn the Handle.

  • Page 6: Changing To "Locked" Mode

    1. To change your SlingStick from the “POWER RESPONSE” mode to the “LOCKED MODE” locate the included Detent Pin. Locate the locking hole in the black outside tube of the SlingStick which is 9” from the bottom of that tube. Stand over the SlingStick and wedge it in underneath your arm, pinching it in between your arm and body and gripping it with that hand.
  • Page 7 SlingStick do the work from there and stop pulling, then just let your forward momentum take you through the back half of the stroke. As you do this lean into the SlingStick slightly and put your weight into it. It is very important to keep the SlingStick in contact with the ground throughout the entire stroke as this will generate the power.

  • Page 8: Changing Or Replacing The Power Band

    5/32” Allen Key (Included) The SlingStick comes loaded with a 10” Low Power band in it and it is recommended that first time users start with that band. If you are an experienced user and would like to change to the included 6”...
  • Page 9 Remove the Post Bolt in the center hole of the SlingStick with a flat head screwdriver. Carefully turn the SlingStick over (covering the top with one hand) and let the Inside Tube slide out of the Outside Tube. Page 9 of 21...
  • Page 10 Locate the two (2) Phillips Flat Head Screws at the top of the Inside Tube and remove them with the Phillips head screwdriver. Remove the Piston pin from the Lower Piston by pushing it through with a Phillips head screwdriver. If you feel strong resistance when pushing it out turn the tube around to push out from the other side.
  • Page 11 Next slide the black Piston assembly out of the top of the Inside Tube. Hand unthread the Pistons at both ends of the Power Band. Replace or change out the Power Band if needed by threading on a new or different band. Hand tighten both Pistons onto the new Powerband until they are snug, but do not overtighten.
  • Page 12 Hold the piston assembly up from the side so that the hole in the Lower Piston is visible. The hole in the Lower Piston should be well aligned with the small hole in the side of the Upper Piston. If it is not, unthread the Lower Piston just enough to align.
  • Page 13 Align the Upper piston by turning it from the exposed section at the top so that the holes in the Upper Piston are well aligned with those at the top of the Inside Tube. Next push the Piston Pin back into the Lower Piston with a Phillips head screwdriver.
  • Page 14 Use the Phillips head screw driver to insert both Phillips Flat Head Screws back into the two holes at the top of the Inside Tube, one goes in on each side locking the Upper Piston back into place inside. Next slide the Inside Tube back down into the Outside Tube by inserting the bottom end of the Inside Tube into the top end of the Outside Tube.
  • Page 15 If the Inside Tube gets hung-up on the Lower Bushing in the Outside Tube and will not pass through it then while holding both upward with the Lower Bushing down at the bottom, reach a finger into the Outside Tube and push the leading edge of the Inside Tube inward and free of that bushing, that will allow it to pass through.
  • Page 16 Next locate the Handle and slide it back into the Outside Tube. Turn it so that it is positioned like it was before removing it in relation to the SlingStick decal on the side. Then turn it slightly if needed to align the holes in it with those at the top of the Outside Tube.

  • Page 17: Replacing The Foot Pad

    REPLACING THE FOOT PAD Tools Required: 5/32” Allen Key (Included) Locate the six (6) Foot Bolts around the sides of the Foot and back them out with the 5/32” Allen Key. Each Foot Bolt will have a Foot Bolt Washer on it, set all of these parts aside for reassembly. Page 17 of 21...
  • Page 18 Then pull the rubber Foot Pad down to remove it from the Foot. Replace that Foot Pad by pushing a new one up into the bottom of the Foot, be sure to orient the pad so that the rounded front edge of the Foot is aligned with the arrow pointing to the front of the Pad. Set both down on a flat hard surface then push the Foot firmly down into the pad then give it a firm press down on all four sides to ensure that it is well seated.
  • Page 19 PARTS DIAGRAMS Page 19 of 21...
  • Page 20 PARTS LIST Name – (# of parts in finished product) x Description – Part # Parts Upper Piston – (1) x 4” Injection molded plastic cylinder – SSUP1 Power Bands – (2)x 1 Low power band gets installed / 1 High power band in bag is included in box) Low power band –...

  • Page 21: Contact Us

    5” Injection molded plastic Handle - (1) x SSH1 51 ½” Aluminum tube with black finish Outer Tube - (1) x SSOT1 Lower Bushing –(1) x 2” Injection molded plastic hollow cylinder SSLB1 4 x 2” Cast Aluminum Foot in Black Finish Foot - (1) x SSF1...
