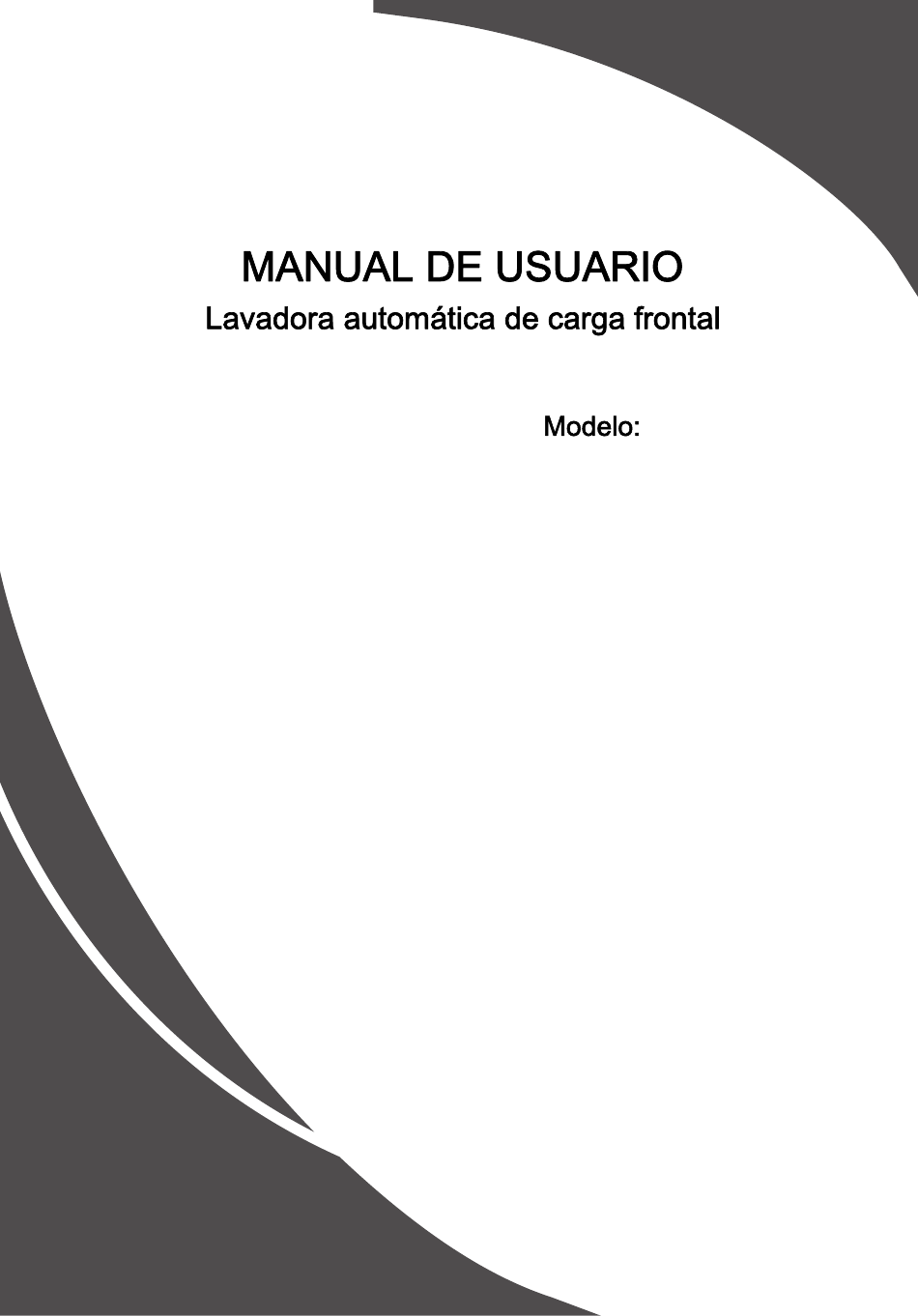

Page 1 LSM702PD LSM702PDIX LSM802PD LSM8120PD LSM8120PDIX LSMI9120PD LSMI1020PD...
Page 7 Drain pipe Wash tub...
Page 11 * Presione 3 seg. para función de bloqueo. Inicio/Fin Algodón Sintético Delicado Ropa bebé Deporte Rápido 15′ Edredón Rápido 42′ Lana Limpieza tambor Aclarado & Centrifugado Centrifugado...
Page 19 LSM702PD / LSM702PDIX / LSM8120PD / LSM8120PDIX...
Page 20 LSM802PD...
Page 21 LSM19120PD / LSMI1020PD...
Page 28 LSM802PD LSM702PD LSM8120PD LSMI9120PD LSMI1020PD LSM702PDIX LSM8120PDIX 300W 300W 200W 200W 500W 500W 600W 650W 1500W 1500W 2000W 2000W 1750W 1750W 2200W 2200W 1400RPM 1400RPM...
Page 31 NBL9712 NBL9712X NBL98121 NBL98122 NBL98122X NBL9912 NBL91012...
Page 32: Table Of Contents
Content Safety Notifications Part Name Installation Instruction Methods of Door Lock and Remove The Usage Method of the Detergent Box Function Introduction of Operating Panel The Introduction of Function and Program Introduction of Washing Programs Maintenance Varieties of Functions Notice before Washing Non-fault Conditions Troubleshooting Guide Specification...
Page 33: Safety Notifications
Safety Notifications (Please Must Follow) In order to prevent the harm or damage to the user or the person and property of others, please make sure to follow the safety issues. Warnings The risk of electric shock. The danger of fire and current leakage 1.Please use 220-240V, above 10A with 1.Do not allow the washing machine ground wire dedicated socket.
Page 34: Part Name
Part name Attachment specification transportation bolt caps Part name Inlet values Control Panel Detergent box Power line Door assembly Cabinet Wash and spin tub Notice： 1.The first use may drain Adjustable feet some water out. It's residual water after performance test, belong to the normal phenomenon.
Page 35: Installation Instruction
Installation instruction Make sure the temperature of the places where the washer is installed or placed above 0℃ or put it outside. Place the washer correctly according to management standards and regulations. Keep the base of washer ventilated when it is placed on the ground with carpet.
Page 36 Requires for positions Horizontal adjustment: The slant angle should be less than 1 degree. Drain pipe Power outlet The distance between any side of washer and Wash tub power outlet should be within 1.5 meters. Don't use too many electrical appliances in one outlet.
Page 37 Washers should be connected with water inlet. Please use attached new plumbing rather than the old. In order to ensure the quality, water injection tests are carried out before the washer leaves factory, so there may be water inside the internal tub, door seals and door panel, which are normal.
Page 38 Such washing machine is designed for home appliances, please do not install it on ship, traveling truck or plane. Please turn off the stopcock if long time out of use. ( e.g vacation) Please remove plug and cancel door lock function to avoid child locking himself/herself inside.
Page 39 Adjust adjustable feet Adjust the adjustable feet to make sure the washing machine in balance, which can be placed on the ground steadily.After settling, screw the locknut to guarantee.Do not place the washing machine in the platform ,which is higher than the ground, in order to prevent the machine from falling down because of other accidents.
Page 40: Methods Of Door Lock And Remove
Methods of Door Lock and Remove DOOR LOCK After operating ,the door will be locked automatically and “DOOR LOCK” light/picture on the panel is lighting. Remove Door Lock “DOOR LOCK”light/picture is lighting,press“Start/Pause”, When WASHING/DEWATERING drum stop operating.Please wait for about 10s, door lock will be removed automatically.
Page 41: Function Introduction Of Operating Panel
Function Introduction of Operating Panel Synthetic Image shown here is indicative only. Actual product you receive may differ. 1 POWER Press it to turn off/on power. Procedure over, power off automatically. 2 Start/Pause Press START button to start operation. Press PAUSE button to stop, and press it again to continue. 3 Knob Rotate it to select additional function.
Page 42 7 “Speed” button When push the power button to start the machine and select the program, you can choose different spin speed . 8 “Additional Function” According to your request, you can add the additional function to the basic programs. The additional function will be different according to different basic programs.
Page 43: The Introduction Of Function And Program
The introduction of function and program Usage of routine clothes 1.Preparations Open the door put clothes in and closes the door. Pull out the detergent box, add detergent and close the box. Connect the inlet pipes and make sure the tap turned on. 2.Press the power button 3.The programs can be selected according to requirements.
Page 44 Cotton Program Introduction This program is suitable for the clothes which are moderate or mild dirty, like cotton, beddings, underwear, towels and shirt, etc… 1.Preparation for washing Open the door, put the clothes then close the door Taking the detergent box and add detergent then close it. Connect the water inlet pipe well and make sure the faucet is running.
Page 45 Delicate Program Introduction Washing gauze, silk underclothes. 1.Prepare for washing Open the door, put the clothes then close the door. Taking the detergent box and add detergent then close it. Connect the water inlet pipe well and make sure the faucet is running. 2.Push “Power”...
Page 46 When taking out of clothes, please pay attention to the internal heating steam. To avoid scald, Open the door to exhaust first,and then remove clothes. Quick 15’ Program Introduction To wash clothes that are changed frequently, not too dirty and thin clothes 1.Prepare for washing.
Page 47 4.Push “Start/Pause ”button to start washing. 5.When the program ends, it will have a hum sound. If you want to change the current setting during the process of washing, please push “Start/Pause” button first and stop washing, then push button to reset. In order to prevent clothing damage, speed cannot set the highest speed, the temperature can be set to “cold”,"20℃","40℃"...
Page 48 Rinse and Spin Program Introduction The machine will not wash, only rinse and spin. 1.Prepare washing Open the door and put the cloths then close the door 2. Push “Power” button and connect to the power 3. Turn the program button to choose“Rinse+ Spin” program The washing program will be selected automatically.
Page 49 Program Introduction Wool Wash wool fiber texture, such as machine washable wool fabrics, etc. 1.Prepare for washing Open the door, put the clothes then close the door. Taking the detergent box and add detergent then close it. Connect the water inlet pipe well and make sure the faucet is running. 2.Push “Power”...
Page 50 4.Push “Start/Pause ”button to start washing 5.When the program ends, it will have a hum sound. If you want to change the current setting during the process of washing, please push “Start/Pause” button first and stop washing, then push button to reset.
Page 51 ECO Program Introduction To wash the clothes that is not too dirty, it will save time and water. 1.Preparation for washing Open the door, put clothes in and closes the door. Pull out the detergent box, add detergent and close the box. Connect the inlet pipes and make sure the tap turned on.
Page 52: Introduction Of Washing Programs
Introduction of Washing Programs LSM702PD / LSM702PDIX / LSM8120PD / LSM8120PDIX Spin Speed Max.Load Temperature Wash options Program Time(m) (℃) (Run/Min.) (Kg) Normal(Time cold (20 ℃, ℃, ℃, ℃ Cotton 1000(0,400,800,1200) Rated Save,Intensive) Normal(Time ℃ (cold 20 ℃, ℃ Synthetic 1000(0,400,800,1200) Rated Save,Intensive)
Page 53 Introduction of Washing Programs LSM802PD Spin Speed Max.Load Temperature Wash options Program Time(m) (℃) (Run/Min.) (Kg) Normal(Time cold (20 ℃, ℃, ℃, ℃ Cotton 1000(0,400,800,1200) Rated Save,Intensive) Normal(Time ℃ (cold 20 ℃, ℃ Synthetic 1000(0,400,800,1200) Rated Save,Intensive) Normal(Time ≤2.0 800(0,400) ℃...
Page 54 Introduction of Washing Programs LSM19120PD / LSMI1020PD Spin Speed Max.Load Temperature Wash options Program Time(m) (℃) (Run/Min.) (Kg) Normal(Time cold (20 ℃, ℃, ℃, ℃ Cotton 1000(0,400,800,1400) Rated Save,Intensive) Normal(Time ℃ (cold 20 ℃, ℃ Synthetic 1000(0,400,800,1400) Rated Save,Intensive) Normal(Time ≤2.0 800(0,400) ℃...
Page 55: Maintenance
Maintenance Please maintenance washing machine to extend service life. Before maintenance, please unplug. Body of washing machine The Clearance of After washing, please clean it with soft Detergent Box cloth. If much contamination ,please Please clean the detergent use appropriate detergent or soap. box regularly.
Page 56 Maintenance When washing machine is frozen 1.Cover stopcock and connecting part with hot towel. 2.ake off the inlet pipe, and put it into 50 degree water. 3.Pour into the drum about 2-3L of 50 degree water. 4.Connect inlet pipe, turn on the stopcock and start the washing machine, please check whether inlet and outlet is normal.
Page 57: Varieties Of Functions
Varieties of Functions The Function and the Select Button Prewash: If the cloths are too dirty, you can choose this program before washing. Soak: After selecting this function, there is a period of time for cloth soaking, which can enhance the performance of washing. Crease Care: After selecting this function, in order to resist wrinkling or separate from the tub wall, the machine will have some shaking loose actions for several minutes after spinning.at the water.
Page 58 3. Tub clean: The program of drum clean is use the high water level, high water temperature, high speed to clean the drum and kill the bacteria. The detailed operations ways. 4. Child Lock function: You can lock and unlock the child lock function by pushing “Pre Delay”...
Page 59: Notice Before Washing
Push"Start/Pause"button to start the washing machine, it is normal to hear "Clicking" sound, which is door locking sound not an error. If it occurs"dE" warnings, please use hand to push and shut the door. Push two times of "Start/Pause"button to continue running of the machine. 6.
Page 60 3.Notes When put big and small clothes together, put the big first and they have to be less than half of total clothes. Please don't wash single cloth because it may cause the trouble of imbalance. Please add one or two similar clothes. Small clothes like silk stockings and handkerchiefs should be put into mesh bags to wash.
Page 61: Non-Fault Conditions
Non-fault conditions The program is running. The door can't There are clothes between the door and open. door seals. There may be a smell of rubber because There is an odor. some components are made up of rubber. There is too little Roller washing machine just needs a little water when wash water when operating.
Page 62: Troubleshooting Guide
Troubleshooting guide check points Phenomenon solutions Press the power button or start/ Check if press the power button or start/pause button? pause button. Connect the plug. Is the plug pulling out? Washer can't start Is there a power failure? Please wait. Check if cut the leakage protector? Open the leakage protector.
Page 63: Specification
Specification NBL98121 NBL9712 NBL98122 NBL9912 NBL91012 Model NBL9712X NBL98122X 300W 300W 200W 200W 500W 500W 600W 650W 1500W 1500W 2000W 2000W 1750W 1750W 2200W 2200W 1200 1200 1400 1400 Speciﬁcation,picture and feature are subject to change without prior notice for purpose of product improvement.
