Summary of Contents for Mobistat TITAN

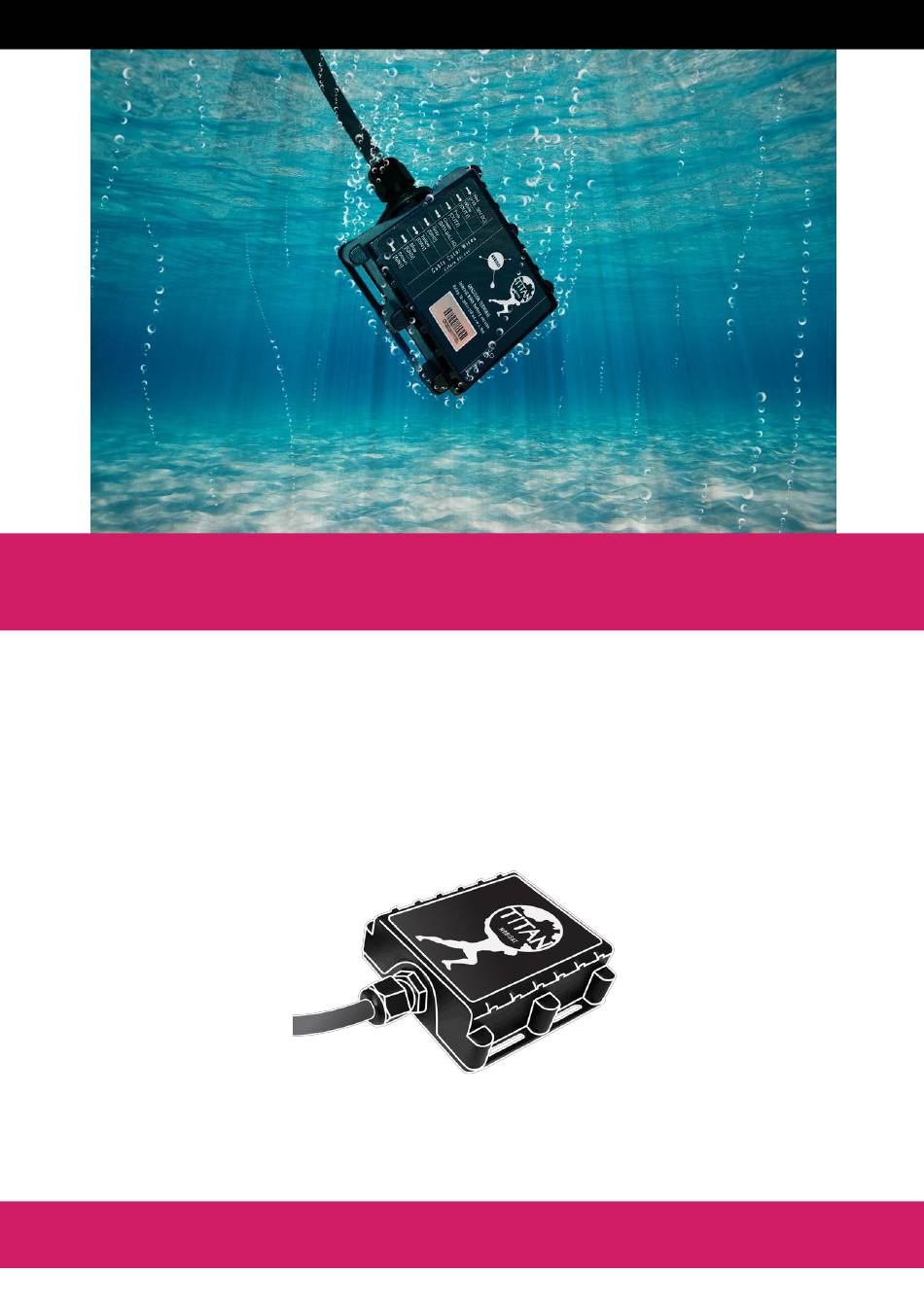

- Page 1 MOBISAT - SATELLITE PROTECTION AND TRACKING SYSTEMS ® TITAN User manual – V2.0.3 THANK YOU! FOR CHOOSING TITAN MOBISAT ® THIS MANUAL OUTLINES IN DETAIL ALL THE SERVICES OFFERED BY THE PRODUCT. FOR THE PRODUCT'S PROPER USE, WE RECOMMEND READING THE ENTIRE MANUAL THOROUGHLY.
-
Page 2: Legal Notes
▪ The nominal voltage is 12V DC ▪ To avoid mechanical damage, we recommend carrying TITAN in a shockproof container/pack. ▪ Before using TITAN, set the device so as to be able to comfortably view the LED indicators, which show the device's operating status ▪... -
Page 3: Product Description
(GNSS and GSM), a 3D accelerometer (for "Black-Box" functionality ) and a Lithium Nickel backup battery. TITAN is suitable for all applications that require the remote tracking of objects. Note that TITAN is equipped with an IP67airtight casing; this makes it especially suitable for nautical use or on vehicles constantly exposed to moisture, muddy or dusty environments. - Page 4 Deep Sleep: On average, less than 2mA Operating temperature: -25°C to +55°C Storage temperature: -40°C to +70°C Relative humidity for storage : 5 ... 95% (No condensation) MOBISAT TITAN - User Manual v.2.0.3 - www.mobisat.eu - Page 4 of 16 ®...
-
Page 5: Electrical Specifications
Supply Voltage (Absolute Max. Value) Drain-Source clamp threshold voltage (Absolute Maximum Ratings), (Idrain = 2mA) Digital Input voltage (Absolute Maximum Value) Analog Input Voltage (Maximum Absolute Value) MOBISAT TITAN - User Manual v.2.0.3 - www.mobisat.eu - Page 5 of 16 ®... - Page 6 The product's consumption of data traffic depends on its configuration and the average number of hours a vehicle is in motion (TITAN can be configured to send more data when it is moving and less data when it is stationary).
-
Page 7: Inserting The Sim Card
3 - Insert the SIM card by sliding it into the slot as indicated. 4 - Close TITAN's outer casing by correctly pressing together the two parts as shown. 5 - TITAN is now ready for use. MOBISAT TITAN - User Manual v.2.0.3 - www.mobisat.eu - Page 7 of 16 ®... -
Page 8: Navigation Led
Ground socket (10 ...30) V DC (-) Brown AIN 1 Analog Input: Channel 1. Input Range 0-30V / 0-10V DC Green DATA_DALLAS Data Channel for Dallas 1-Wire devices ® MOBISAT TITAN - User Manual v.2.0.3 - www.mobisat.eu - Page 8 of 16 ®... -
Page 9: Types Of Installation
Caution: The mains connection must be at a very low impedance point in the vehicle's electrical system. On a car, these points are the battery terminals. Therefore, it is advisable to connect the power supply for TITAN (GND and POWER cable) directly to the battery terminals. -
Page 10: Optional Accesories
¾ covered with metal surfaces. Thanks to its IP67 protection, TITAN can also be mounted outside the vehicle. TITAN has 4 holes on the IP67 casing for fastening with screws (optional). TITAN can be fixed with cable ties or adhesive tape. - Page 11 External alarms (e.g. sirens), panic buttons, sensors that detect the opening of doors, the vehicle ignition, etc., always detect 2 states: High or Low Voltage. The digital input 2 (DIN2) on TITAN is used to read this information. The figure below shows the wiring diagram of a Panic Button, open door sensor, etc.
- Page 12 All commands can be transmitted as an SMS from any mobile phone. 2. ALL LOWER CASE TITAN's operating system recognizes and discriminates the use of characters in Upper and Lower case. All SMS commands MUST be transmitted in lowercase. 3. SPACES ARE IMPORTANT Each command is made up of characters and <spaces>.
- Page 13 "Immobilizer" scenario (an ® SMS command). IMMOBILIZER SCENARIO COMMANDS ENABLE THE IMMOBILIZER SCENARIO: <space><space>setparam<space>1601<space>2 DISABLE THE IMMOBILIZER SCENARIO: <space><space>setparam<space>1601<space>0 MOBISAT TITAN - User Manual v.2.0.3 - www.mobisat.eu - Page 13 of 16 ®...
- Page 14 We recommend not changing the amplitude of the Autogeofence radius in order to prevent the triggering of "false alarms." False alarms can be generated in cases where the vehicle on which TITAN is installed is parked indoors or in a shaded area (where the satellite network is inaccessible).
-
Page 15: Troubleshooting
(from one to a virtually infinite number of vehicles). TO ACCESS THE SERVICE To connect TITAN to the Greenbox service, you must register the device using the two codes found on the product's packaging: the IMEI no. -
Page 16: Warranty And Support
WARRANTY AND SUPPORT TITAN has a 2-year warranty. For technical support on the product visit: http://www.mobisat.eu/support, register (if you do not already have access credentials) to open a support ticket, indicating: the cause of the problem ▪ ▪ the product's IMEI no.
