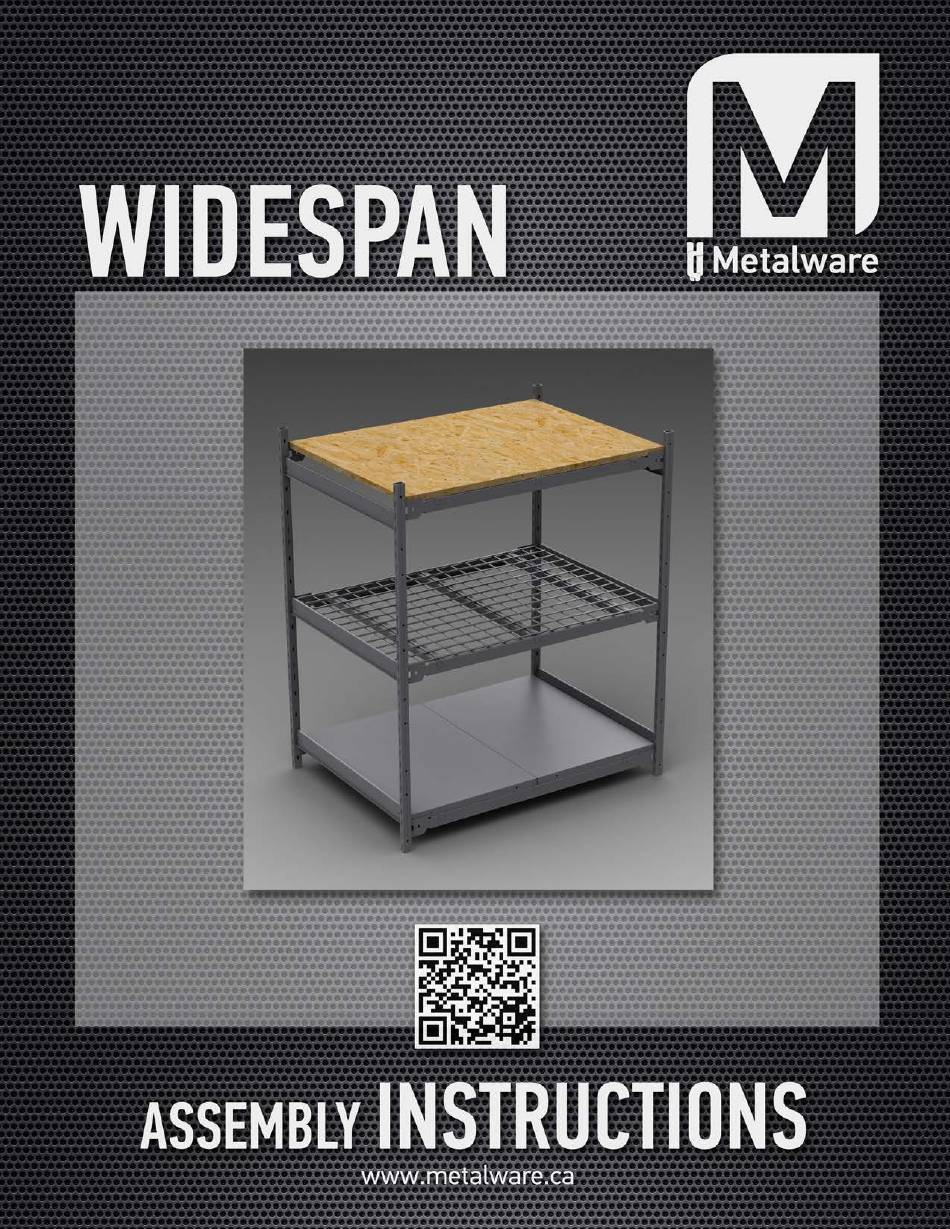

Summary of Contents for Metalware WIDESPAN
- Page 2 POST FRAME CONNECTOR TIE BAR SHELF BEAM Industrial Steel Shelving...
- Page 3 # of Frame Connectors/side Post Height Under 6000 lbs/unit Over 6000 lbs/unit or 12” to 24” depth or 30” to ” depth 0 - 36 48 - 84 96 - 120 132 - 168 180 - 192 Required # of Tie Bars/shelf 36”...
- Page 4 Begin with the post held Insert the frame connectors Connect the 2 posts. upright on the ground. on the side of the post with the Repeat step 2. Do this for seam and, one at a time, use a all sides. mallet to secure in place.
- Page 5 To install the footplates, bolt to the bottom of Install the beams. the posts as shown To install the beams, insert one end of the beam past the notices in order to leave enough space for the other end to clear the post and slide into place. Alight the notches once both sides are in the slots of the post. Use a rubber mallet to secure the beam in place.
- Page 6 Install the tie bars across the beams. For all 96” beams please ensure to use the triangular tie bars. Install the shelves. The unit is complete. Industrial Steel Shelving...
- Page 7 Wood shelves (in one piece) are placed on the beams. Make sure the unit is level. Drill a hole into the floor. Secure Steel shelves (usually multiple pieces) are placed on the footplate to the floor using the anchors (not included) the beams and screwed together.
