215 kg
Pole Footing
2 x M30 Bolts per Strut
8 x M30 Bolts
300
1000
©MODUPLAY 2011
ACTIVITY NAME:
PH: 02 4272 1644

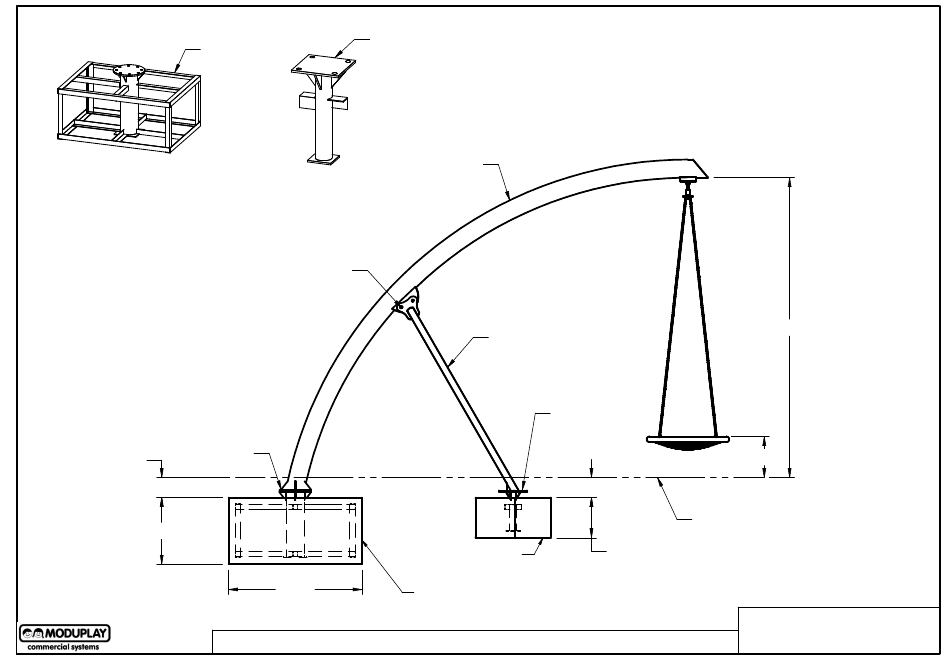

Summary Install Guide
1. Dig and pour main footing; Dig holes for strut footings but do not pour
22 kg
2. let concrete set for minimum 72 hours
3. Erect large pole and bolt to footing
4. Bolt Struts onto main pole and bolt strut footing on. pour the strut footings
5. Allow concrete to set for minimum 72 hours
6. Bolt swing hanger to main pole and assemble chains and seat. ensure seat
has a minimum 500mm clearance from finished soft-fall level. You may have to
shorten chains to achieve this.
570 kg
Strut Footing
800L x 800W x 600H
Concrete Footing
2000
2000L x 1500W x 1000H
Concrete Footing
Mammoth Swing 4500
70 kg
4 x M24 Bolts
per Strut
300
600
4500
610
Finished Soft-Fall Level
DWG NO.
XSWA 1009
Advertisement
Table of Contents
Summary of Contents for MODUPLAY Mammoth Swing 4500
- Page 1 Strut 8 x M30 Bolts Finished Soft-Fall Level 1000 800L x 800W x 600H Concrete Footing 2000 2000L x 1500W x 1000H Concrete Footing DWG NO. XSWA 1009 ©MODUPLAY 2011 ACTIVITY NAME: Mammoth Swing 4500 PH: 02 4272 1644...
- Page 2 1000 3381 2513 43° 1725 1500 1725 2000 DWG NO. XSWA 1009 ©MODUPLAY 2011 ACTIVITY NAME: Mammoth Swing 4500 - Footing Setout PH: 02 4272 1644...
