Reznor CK11 Quick Manual

WARNING: Improper installation, adjustment,
alteration, service, or maintenance can cause
property damage, injury or death. Read the
installation, operation, and maintenance instructions
thoroughly before installing or servicing this
equipment.
Description
Option CK11, P/N 205402,
includes:
Qty Description
1 50' long chain (200- 120703
lb working load)
22 S Hooks (for tube 116034
suspension points*)
* The four "S" hooks for the
burner/control box are included in
the burner/control box hardware
package.
Suspension
Requirements

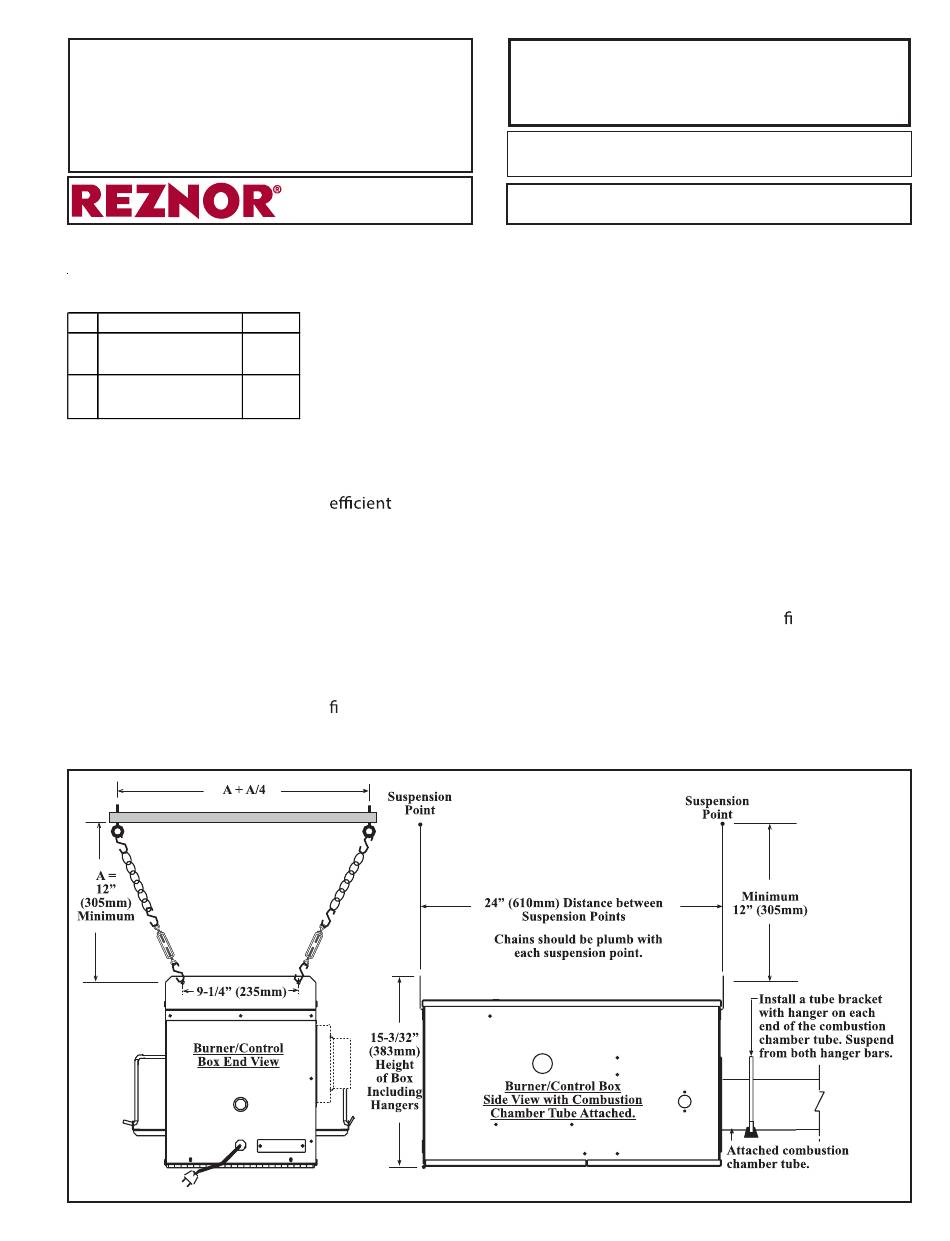

FIGURE 1 - Suspension
Dimensions and Hanging
Arrangement of the Burner/
Control Box and attached
Combustion Chamber Tube
When installed, these tubular radiant heaters must be able to expand, must be
level, and must be restricted from too much lateral sway. The optional hanger
kit includes 50' of chain (rated for 200 lbs) and "S" hooks. The chain must be
cut to length. A minimum of 12" (305mm) total of chain, "S" hooks, and/or
P/N
turnbuckle length is required between the tubes and the structure suspension
points.
The burner box has four suspension points. Each straight tube must have at
least one suspension point. Model VR heaters are designed so that the tube
suspension point location can be adjusted slightly to adapt to the building
structure. A straight tube adjacent downstream of an "L" or "U" tube requires
two suspension points.
Heaters should be suspended at a height that has been determined to be most
for that application. Clearances to combustibles must be observed.
Refer to the installation manual for clearances and recommended mounting
heights.
NOTE: Although turnbuckles are not included in this hanger kit, using turnbuck-
les in heater suspension is recommended for convenience in leveling the
system. Use either an Option CK12-CK18 Turnbuckle Kit, or eld-supplied
turnbuckles of steel or malleable iron.
The installer is responsible for attaching the suspension points to the building and
for adequately supporting the weight of the heater. Suspension point hardware is
eld supplied.
The burner/control box has two hanger brackets. To restrict lateral sway of the
heater, locate suspension points as illustrated in FIGURE 1.
Installation Form RZ-NA I-VR-HK (Version A.1)
Obsoletes Installation Form RZ-NA I-VR-HK (Version A)
A P P L E I S T : O
Form RZ-NA I-VR-HK (Ver A.1), P/N 205403 (Rev 2), page 1
Hanger Kit
Option CK11
M o d e V l R
