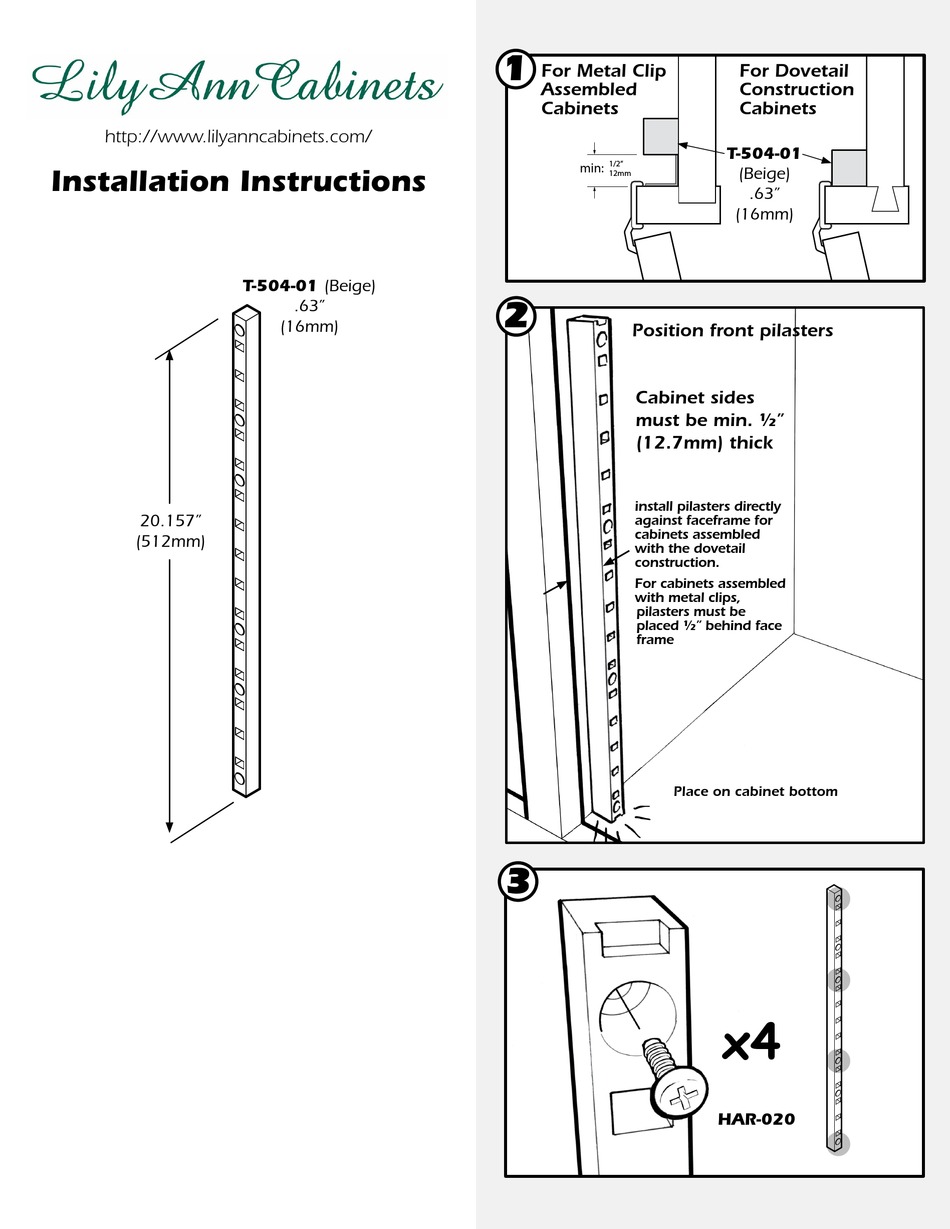

Installation Instructions
20.157"
(512mm)
T-504-01 (Beige)
.63"
(16mm)
1
For Metal Clip
Assembled
Cabinets
1/2"
min:
12mm
2
Position front pilasters
Cabinet sides
must be min. ½"
(12.7mm) thick
install pilasters directly
against faceframe for
cabinets assembled
with the dovetail
construction.
For cabinets assembled
with metal clips,
pilasters must be
placed ½" behind face
frame
Place on cabinet bottom
3
For Dovetail
Construction
Cabinets
T-504-01
(Beige)
.63"
(16mm)
x4
HAR-020
Advertisement
Summary of Contents for Lily Ann Cabinets T-504-01
- Page 1 Construction Cabinets Cabinets http://www.lilyanncabinets.com/ T-504-01 1/2” min: Installation Instructions (Beige) 12mm .63” (16mm) T-504-01 (Beige) .63” (16mm) Position front pilasters Cabinet sides must be min. ½” (12.7mm) thick install pilasters directly 20.157” against faceframe for cabinets assembled (512mm) with the dovetail construction.
- Page 2 Remove the drawer member Insert Hook Dowels into front and Rear Pilaster. from the slide. Using both slides, the Rear Pilaster can be attached. This will align the slides to the cabinet. Locate the first and last holes for mounting the Hook Dowels and Spacers.
