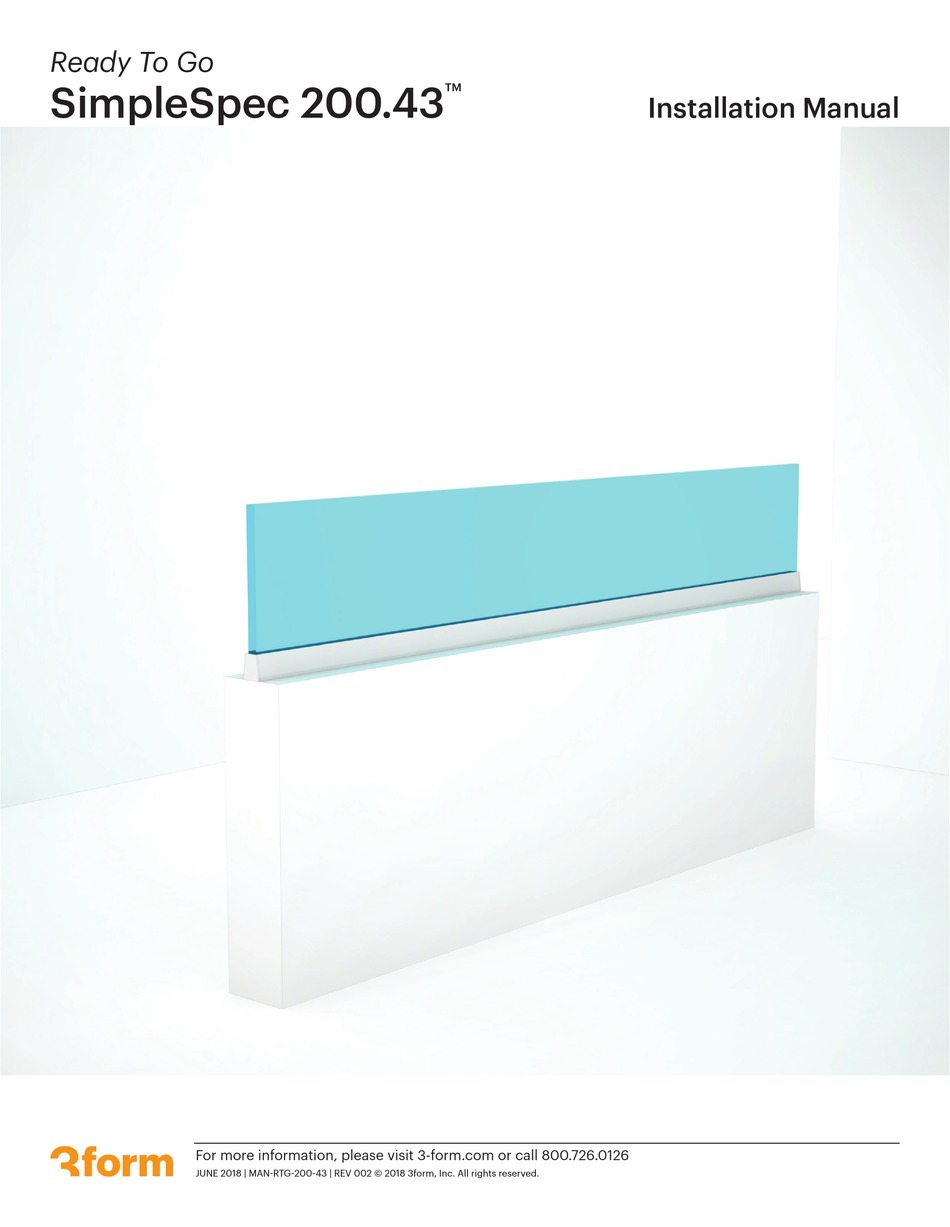

- Page 1 Ready To Go SimpleSpec 200.43 Installation Manual For more information, please visit 3-form.com or call 800.726.0126 June 2018 | MAn-RTG-200-43 | ReV 002 © 2018 3form, Inc. All rights reserved.
- Page 2 3 Channel PWM Fin End Cap with 3-60-2271 Sink Screw DMX Interface Strain Relief Hole KIT 3-15-7780 3-60-000 3-60-2271-K For more information, please visit 3-form.com or call 800.726.0126 June 2018 | MAn-RTG-200-43 | ReV 002 © 2018 3form, Inc. All rights reserved.
- Page 3 Shim for Fin 0 60 2274 Fin End Cap with Strain Relief Hole KIT 3 60 2271-K For more information, please visit 3-form.com or call 800.726.0126 June 2018 | MAn-RTG-200-43 | ReV 002 © 2018 3form, Inc. All rights reserved.
- Page 4 Drill 1/4" holes in Fin Base Profile for anchoring with maximum of 30" spacing and no more than 12" from edge. For more information, please visit 3-form.com or call 800.726.0126 June 2018 | MAn-RTG-200-43 | ReV 002 © 2018 3form, Inc. All rights reserved.
- Page 5 Drill and Anchor cont... Anchor Fin into wall using appropriate anchors for wall surface. Anchors to be supplied by installer. For more information, please visit 3-form.com or call 800.726.0126 June 2018 | MAn-RTG-200-43 | ReV 002 © 2018 3form, Inc. All rights reserved.
- Page 6 Ready To Go SimpleSpec 200.43 Installation Manual Installation Attach Cover Profiles 0-60-2267 ( 2) For more information, please visit 3-form.com or call 800.726.0126 June 2018 | MAn-RTG-200-43 | ReV 002 © 2018 3form, Inc. All rights reserved.
- Page 7 Brown Wire = (-) Green LED Black Black Wire = (-) Red LED White Wire = (+) 24VDC For more information, please visit 3-form.com or call 800.726.0126 June 2018 | MAn-RTG-200-43 | ReV 002 © 2018 3form, Inc. All rights reserved.
