Summary of Contents for Unoisetion YH-5301S

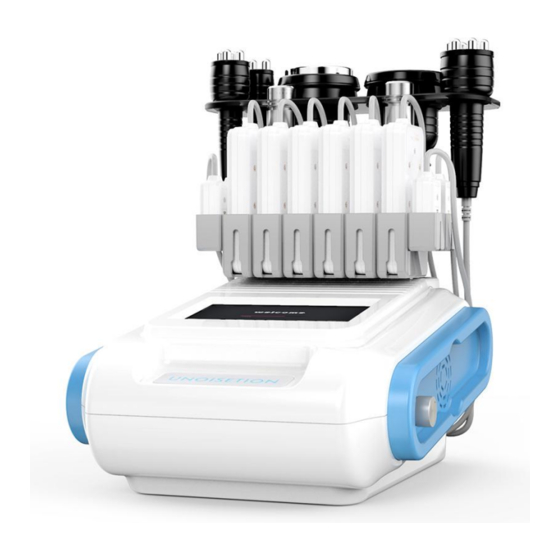

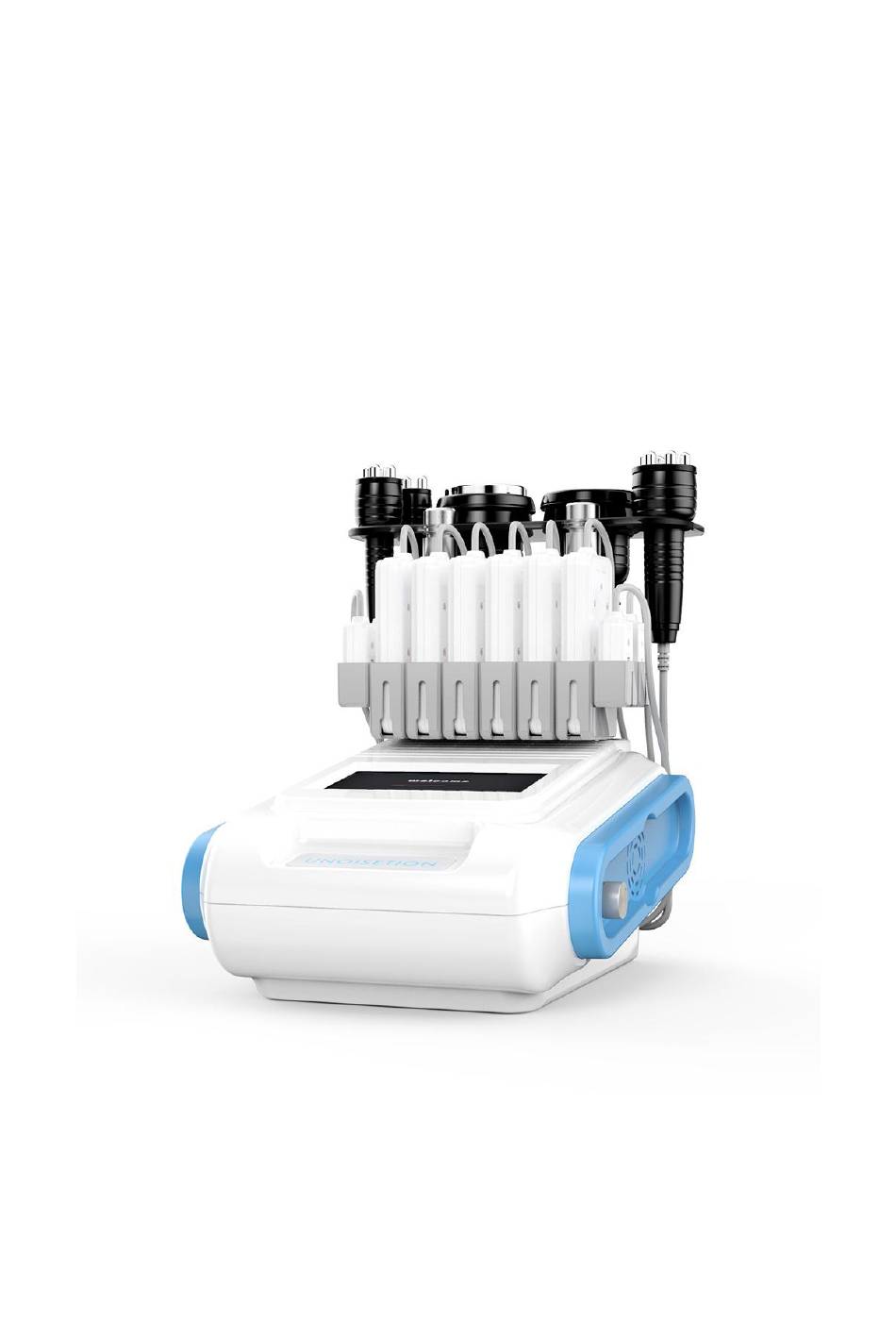

- Page 1 Unoisetion Cavitation 3D RF Wegiht Loss Cellulite Remove Lipo Laser 650Nm Device Model: YH-5301S...
- Page 2 Chapter 1: Safety Warnings I. Electricity & Machinery Safety 1.The machine is either 110V And 220V. So whatever the voltage u can use before starting the machine. 2. Please keep the voltage at stable condition. II. Contraindication Safety 1. People with heart disease, high blood pressure, or configured cardiac Pacemaker. 2.
- Page 3 II. Technical Parameters Parameters Power supply Input:100V-240V Power :190W Uoisetion 40K Cavitation Head Frequency:40KHz Power:15W Sextupolar 3D RF for Body Freqeuncy:1MHz Power:50W Quadrupole RF with Vacuum Freqeuncy:1MHz Power:50W Vacuum: <-80kPa Pressure: >250kPa Air flow: >10L/minute Noise level: <70dB (30cm away) Quadrupole 3D RF for face Freqeuncy:1MHz Power:30W...
- Page 4 IV. How to install the Accessories? V. Program Setting 1. Use the red power button to start the machine, the screen will show “Welcome”.
- Page 5 2. Click any place of the screen to enter into the main interface. A. 40K Cavitation 1. Press button to enter into 40k unoisetion function display as bellow:...
- Page 6 2. Please click to set working time. 3. Please click to increase or decrease the ENERGY 4. Please click to chose working model. 5. Please click to start or pause function. 6. Please click to come back to the main function interface. B.
- Page 7 2. Please click to set working time. 3. Please click to increase or decrease the RF ENERGY. 4. Please click to set the time for the suction and release. 5. Please click M1, M2, M3, M4 to choose the model. 6.
- Page 8 2. Please click to set working time. 3. Please click to increase or decrease the RF ENERGY. 4. Please click to control the led light on the head. 5. Please click to come back to the main function interface. Face RF&BIO 1.
- Page 9 (Press botton to choose RF or bio function) 2. Please click to set working time. 3. Please click to increase or decrease the ENERGY.
- Page 10 4. Please click to start or pause function. 6. Please click to come back to the main function interface. E. Eye Radio Frequency 1. Press button then login Eye Radio Frequency operation display.
- Page 11 (Press button to choose RF or BIO) Please click to set working time. 3. Please click to increase or decrease the RF ENERGY. 4. Please click to start or pause function. 5. Please click to come back to the main function interface. F.
- Page 12 2. Click“M1”, “M2 ” or “M3”to choose different treating modes. M1, M2, M3 (ps: Mode 1, Mode 2, Mode 3 means different wave modes). M1 is continuous; M2 is 500ms( 2Hz); M3 is 100ms (10Hz). 3. WORKING TIME: click to add or decrease time. 4.
- Page 13 Please set the energy from low to high to get the best comfortable temperature, then follow this steps: 1. Use the Body RF head 5 mins 2. Use the unoisetion 40k cavitation head 20-25min 3. Use the Body RF Vacuum head 10-15min 4. Use the Body RF head 15~20 min.
- Page 14 the time and energy, pls set the energy from low to high to get the best comfortable temperature, then follow this steps: 1. Use face radio frequency head for face for 15-20 min 2. Use eye radio frequency head for eye around for 10-15min Work time: 2-3 times/ week BUTTOCKS ILLUSTRATIN of OPERATION...
- Page 15 Treated time: 30 minutes 1. From down to upper, pushing to the groin to dredge the lymph. 2. From down to upper, circling push by anticlockwise can help decomposing fatness. 3. Also can push by come-and-go to decompose fatness. 4. Pull from the knee and muscle texture to upper, can improve the curve. Treated time: 20 to 30 minutes 1.
- Page 16 3. Along the muscle of arm, pull up to lift and tight the muscle. BACK Treated time: 20 to 30 minutes 1. First by come-and-go, pushing the bladder nerve 2 to 3 times. 2. Circling by anticlockwise to stimulate the underarm lymph node. 3.
