Medline ReadyBath MSCWARMER 14S Operating Manual

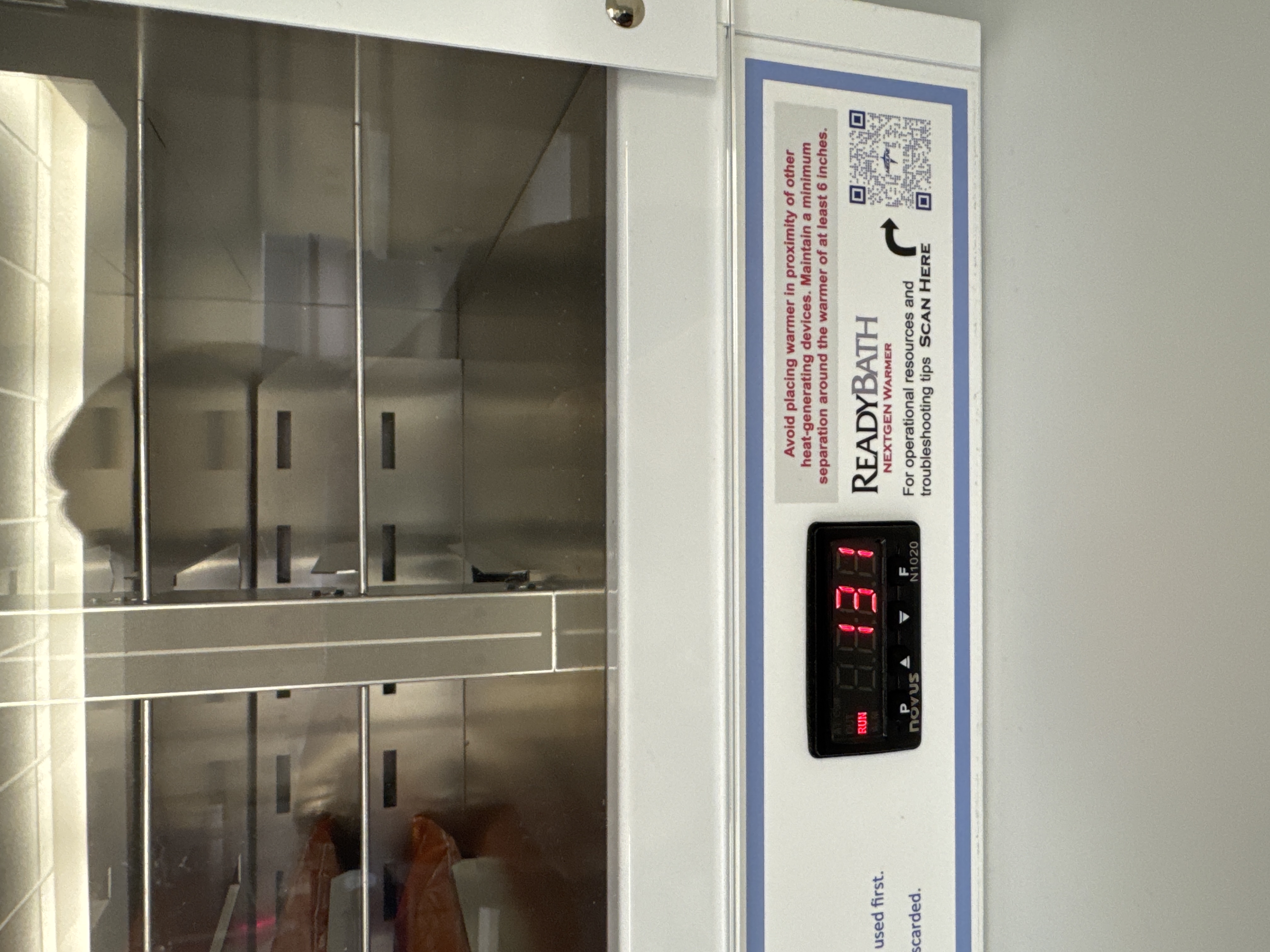

Controller Functions Buttons
The warmers' controller allows you to set and change the
units operating temperature between 100°F and 130°F,
and change the read out units to either °C or °F. These are
the only settings that can be changed. There are other
controller settings that are visible, but for safety and opera-
tional purposes can not be changed.
TO ENTER SET-POINT TEMPERATURE

RECOMMONDED
FACTORY
DEFAULT
Hit 125°F
See Use arrows to
ONCE Unit increase or decrease
temperature
To return to temperature display, after making any change, simply press the
on the display. If you are in an area of the MENU not shown press and hold
Control Self Diagnostics
Control prompts will only display when a fault or alarm condition exists.
The control's self diagnostics are part of Intelligent Warmer's "watch-dog" system that continuously monitor the warmer's
operating system, temperature and performance. In the event of any of the operating alarm conditions, an alarm prompt
will continuously appear on the control display. The alarm conditions are described below. All alarm conditions will
automatically discontinue heater operation.
ALARM Codes "Err1" & "Err6" ALARM Code "- - - -"
or
Indicates Connection Error Indicates Open Input / No Sensor Error
Check the wiring connections Check connection between Controller
ALARM Code "Err4" ALARM Code "Err8"
Indicates Watchdog Error Indicates Thermocouple Sensor Error
Controller needs to be replaced Turn off and wait until ambient
Warmer Maintenance
Periodic cleaning is the only required maintenance for the Warmer.
clean interior and exterior surfaces, use a soft damp cloth. Avoid excessive amounts of water that could drip into the lower
plenum. Use a mild detergent or cleaner if necessary.
The door should only be cleaned using a lint-free cloth. Paper towels can mar the surface of the door. Do Not use any
commercial or alcohol-based cleansers on the door. This will cause cracking of the acrylic over time.
Technical Support
For questions regarding:
General Product Information, please contact: Medline Industries, Inc. Three Lakes Drive,
Northfield, IL 60093
Technical Support/Parts Order, please contact: PH: 1-800-482-HEAT





 
TO CHANGE TEMPERATURE READ OUT

Hit See Use arrows to
change temperature
TWICE Unit
units readout
P
button until you see the warmer's temperature
P until you see the warmer's current temperature.
ALARM Code "E111"
Indicates Internal Memory Error
Turn Controller OFF and On. If problem
and Thermocouple remains, replace Controller
ALARM Code "nnnn" & "vvvv"
or
Indicates Sensor Temp Over/Under Error
Increase or reduce process temperature
temperature recovers to get back in range
Disconnect the power cord before cleaning. To
1-800-MEDLINE (633-5463)
medline.com | info@medline.com
FAX 773-622-2282
Copyright Quincy Lab Inc. 2018
MENU
Increase NEXTGEN Warmer
Decrease
Functions
FACTORY
DEFAULT
°F
Operating Specifications
Power Source:
Maximum Temperature:
Operating Environment:
Storage Temperature:
Approvals:
Compliance:
Unit Construction
Exterior: Powder Coated Steel
Insulation: Fiberglass
Thermo-control: PID Microprocessor
Unit Specifications
MHSe WARMER14S
Capacity: 14 ReadyBaths
Exterior Dimensions: 12.87"(32.6 cm)W x
18.00" (45.7 cm)H x 13.43" (34.1 cm)D
Shipping Weight: 29 pounds / 13.1 kg
Net Weight: 23.5 pounds / 10.6 kg
Issue Rev C 10 19
Medline Industries, Inc.
PAGE 4
Models MSCWARMER 14S & 28S
Operating Manual
Model 28S
AC 115 (+/-10%), 60HZ, Max Watts: 300 (14S and 28S)
o o
54 C / 130 F
Indoor use, altitude up to 6,500 ft (2,000m).
Installation Category II, Pollution Degree 2,
o o o o
ambient Conditions 10 C / 50 F to 35 C /95 F, 80% RH maximum.
o o o o
-10 C / 14 F to 70 C / 158 F, 70% RH maximum
Underwriter's UL / CUL, United States / Canadian for laboratory equipment.
UL Standard 61010-1, IEC 61010-1 .
Interior: Aluminum
Door: Acrylic
Heater: Resistive-Tubular Incoloy
MHSe WARMER28S
Capacity: 28 ReadyBaths
Exterior Dimensions: 22.14" (56.2cm)W x
18.00" (45.7 cm)H x 13.25" (33.6cm)D
Shipping Weight: 34 pounds / 15.4 kg
Net Weight: 28.5 pounds / 12.9 kg
Three Lakes Drive Northfield IL 60093 1-800-MEDLINE
Model 14S
