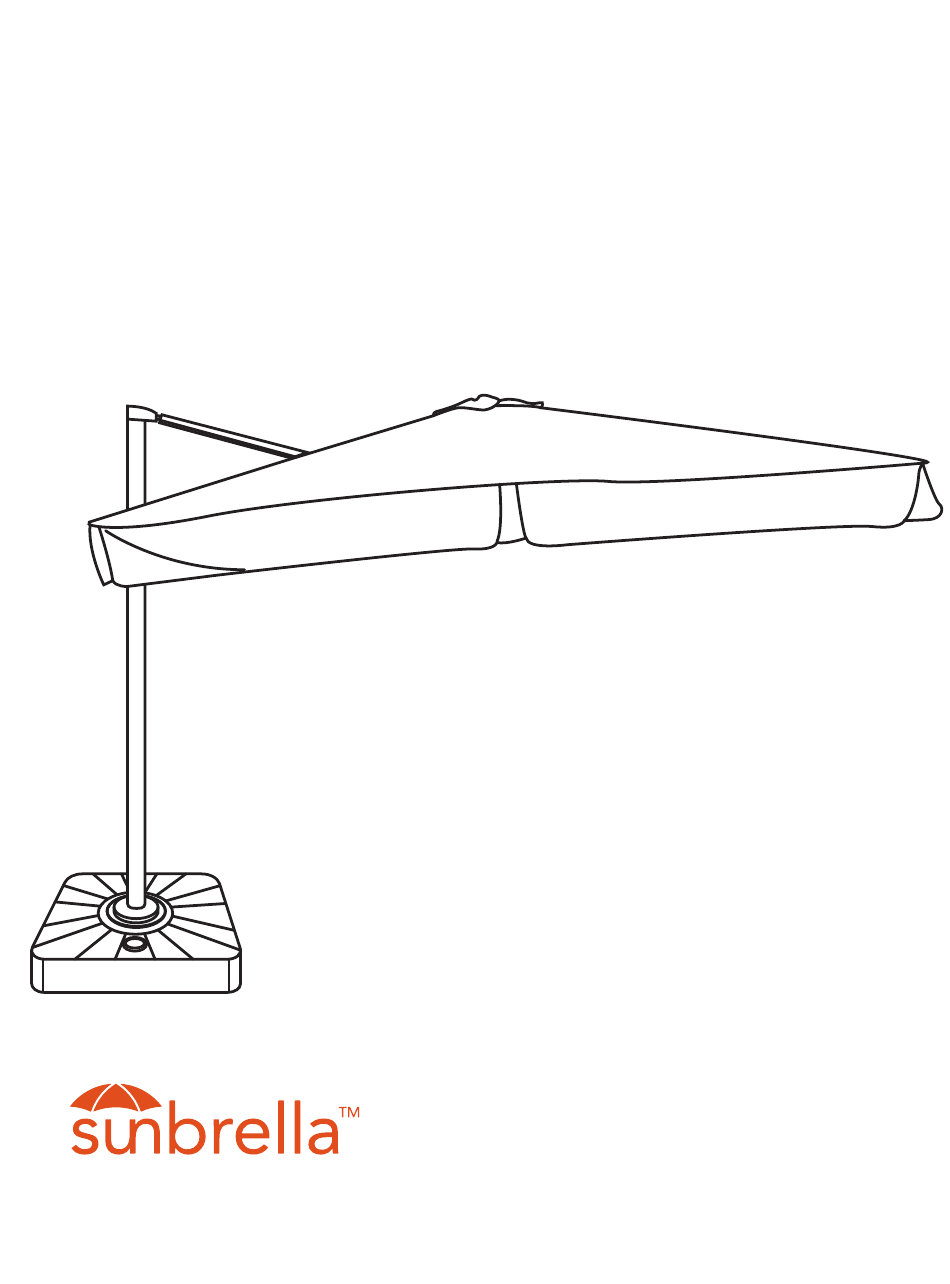

- Page 1 Santorini II 10-ft Square Cantilever Umbrella with Sunbrella Fabric ®...
-
Page 2: Package Contents
PACKAGE CONTENTS A – (1) Main Umbrella* B – (1) Plastic Water Fillable Stand (incl. in separate carton as NU6000JL) C – (1) Base Pole, NUP4117 D – (1) Swivel Cover, NUP4118 E – (1) Allen Wrench, NUP4119 F – (4) Stainless Bolt, NUP4120 G –... - Page 3 ASSEMBLY INSTRUCTIONS Carefully check all packaging materials before discarding. Do not assemble if there are missing pieces. Step 1 Put the stand on a level ground where you intend to locate your umbrella. Open the cap on the top of the stand & ll the stand with water. Then tighten the cap.
- Page 4 Step 3 Fix the Base Pole ( part C ) on the top of the Plastic Water Fillable Stand ( part B ) with bolts F & washers G use the Allen Wrench (E) Bottom crank hole Step 4 Put the Swivel Cover ( part D ) around the Base Pole ( part C ) . Bottom crank hole Locking hole for threaded knob side A...
-
Page 5: Important Notice
Step 5 Put the Main Umbella (Part A ) outside the Base Pole ( Part C ) Important Notice : When you put the Main Umbrella outside the Base Pole, make sure the locking holes are on the same side . Locking hole for threaded knob... - Page 6 Step 6 Fix the Threaded Knob ( Part H ) into the locking hole.
- Page 7 Step 7 There are 3 Crank Holes on your umbrella. Top crank hole for canopy tilting, Bottom crank hole for 360 degree rotation. Middle crank hole for umbrella opening and closing. Middle Crank Hole for umbrella opening and closing Top Crank Hole for canopy tilting Bottom Crank Hole for 360 degree rotation...
- Page 8 Squeezing the trigger before attempting to raise the crank house. Fix the Crank Handle (I) Step 8 into the middle crank hole and turn clockwise to extend the umbrella fully . Caution: Please pull and loose the umbrella ribs by hand before attempting to open the umbrella by crank.
- Page 9 Step 9...
- Page 10 Step 10 Fix the Crank Handle (I) into the top crank hole to tilt your umbrella canopy.
- Page 11 Step 11 Fix the Crank Handle (I) into the bottom crank hole to rotate your umbrella in 360 degrees.
- Page 12 Step 12 Squeezing the trigger before attempting to lower the crank house. Turn the Crank handle counter-clockwise to close the umbrella. First Step Second Step Step 13 When not in use, place Umbrella Cover (part J) over the umbrella .
