User Manual
User Manual YC5000
Please read the manual carefully before using this charger.
We thank you that you have decided to purchase our intelligent charger.
Please follow the safety and care instructions in this manual, to be able to use this device
efficiently and safely.
Included in delivery:

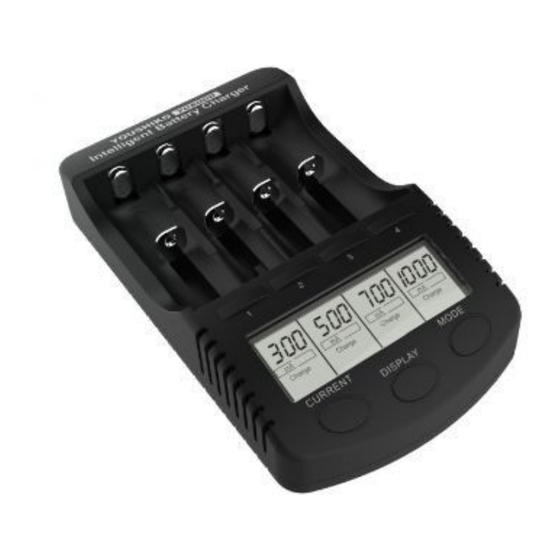

• Charger YC5000
• Power supply
• User Manual
1
Advertisement
Summary of Contents for Youshiko YC5000

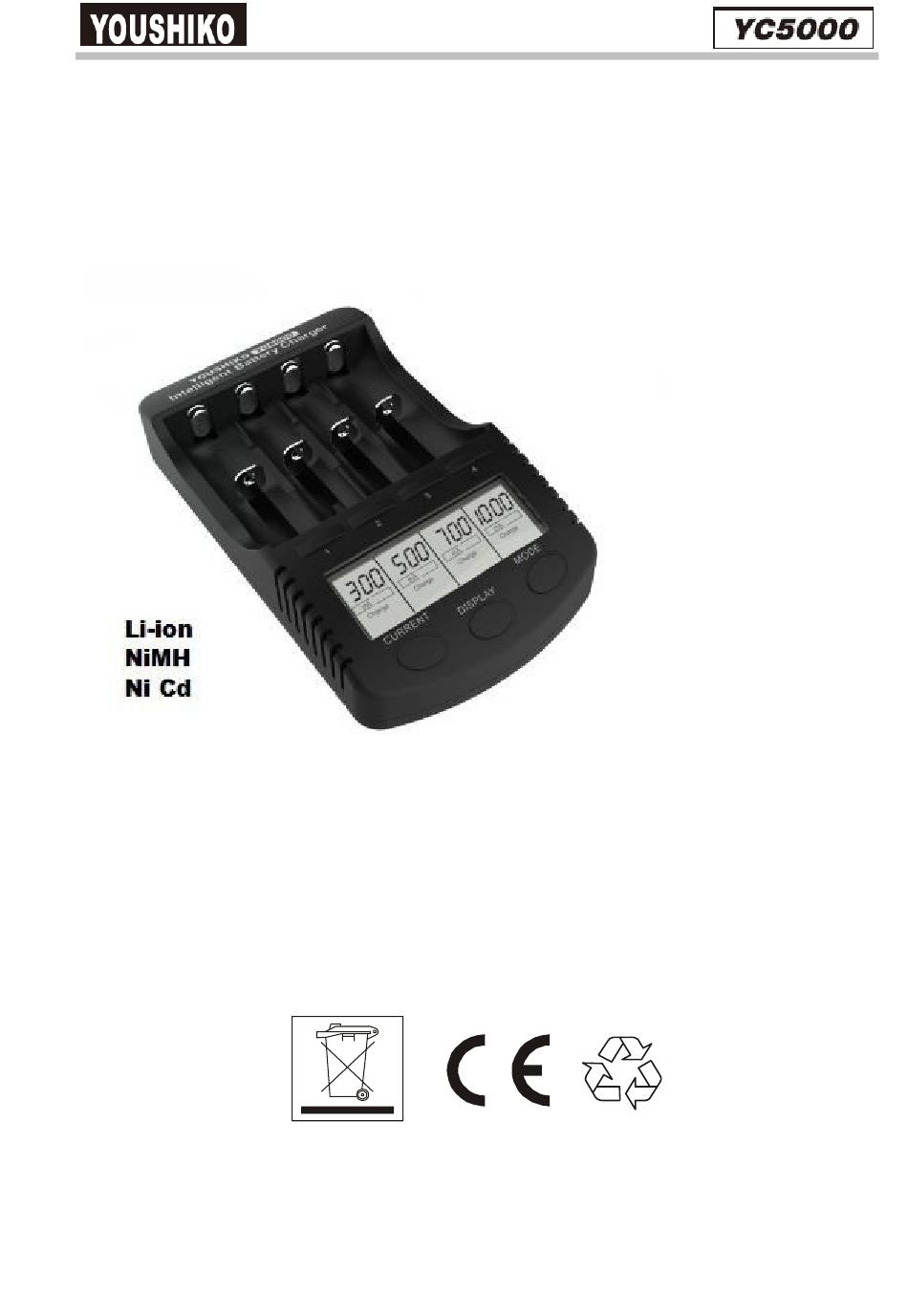

- Page 1 User Manual User Manual YC5000 Please read the manual carefully before using this charger. We thank you that you have decided to purchase our intelligent charger. Please follow the safety and care instructions in this manual, to be able to use this device efficiently and safely.
-
Page 2: Important Notes
User Manual Important notes: Use the YC5000 charger only with Li-Ion cells with 3.6V-3.7V and NiCd, NiMH cells with1.2V rechargeable batteries. With the YC5000 you can automatically charge the following types of batteries: Keep the batteries and charger out of the reach of children. - Page 3 User Manual Inputs: DC12V/3A Outputs: Four independent charging slots Buttons: 1.Battery slot select buttons (1,2,3,4) 2.Mode selection button (MODE) 3.S election of displayed information (DISPLAY) 4.Charging current selection key (CURRENT)
- Page 4 User Manual Display: The following values are apparent on the display during a charging process: 1.Program (Charge, Test) 2.Battery Voltage (V) 3.Capacity (mAh) 4.Elapsed time (hh:mm) 5.Internal resistance (mR) 6.Charging current (mA) Charge Mode When connected with power supply, all the LCD display will light on, if there is no batteries inside or bad batteries inside, LCD will show Null.
- Page 5 User Manual If you want to change the charging current, you can replace the batteries,reconnect the power ,or hold on the MODE button for four seconds. Then , you could choose the current again . Under charge mode, you can slightly press DISPLAY button and shift to check the 5 values: charging capacity(mAh)/ charging time(h) /battery internal resistance(mR)/ charging current(mA)/ battery’s voltage(V).when the battery is charged fully, it will Display Full and charge End in small size at the bottom line on the LCD display.
- Page 6 User Manual TEST Mode Fully charge batteries first, and then discharge batteries to record discharging current and test battery capacity, after that the batteries will be fully charged automatically. Last step: Choose TEST Second Step : Choose Charge First Step : Current(300/500 TEST TEST...
- Page 7 User Manual Choose Charge Current:after entering TEST mode, the display will flash with“300mA”for 8 seconds, at the same time, you can choose 300mA/500mA/700mA/1000mA through CURRENT button. The System will lock the current you choose after 8 seconds,if there is no selection of current within 8 seconds, then the system will automatically charge batteries with 300mA(the current you choose is the current for charging batteries).
- Page 8 User Manual Warning: The manufacturer and supplier is not responsible for incorrect or improper use and the resulting consequences. Any repair or modification that is not performed by the original supplier will void the warranty. The device may be used only by people who have read and understood such instructions. The specifications are subject to change without previously pointed out.
- Page 9 User Manual Technical specification YC5000 AC Input: 100-240V (for AC Power supply); Input Voltage DC Input: 12V / 3A LCD display live view with back light: Shows the charge status, capacity, voltage, Monitoring / Display charge current, operating time and internal resistance.
