Summary of Contents for COP Security 15-CO463VIC

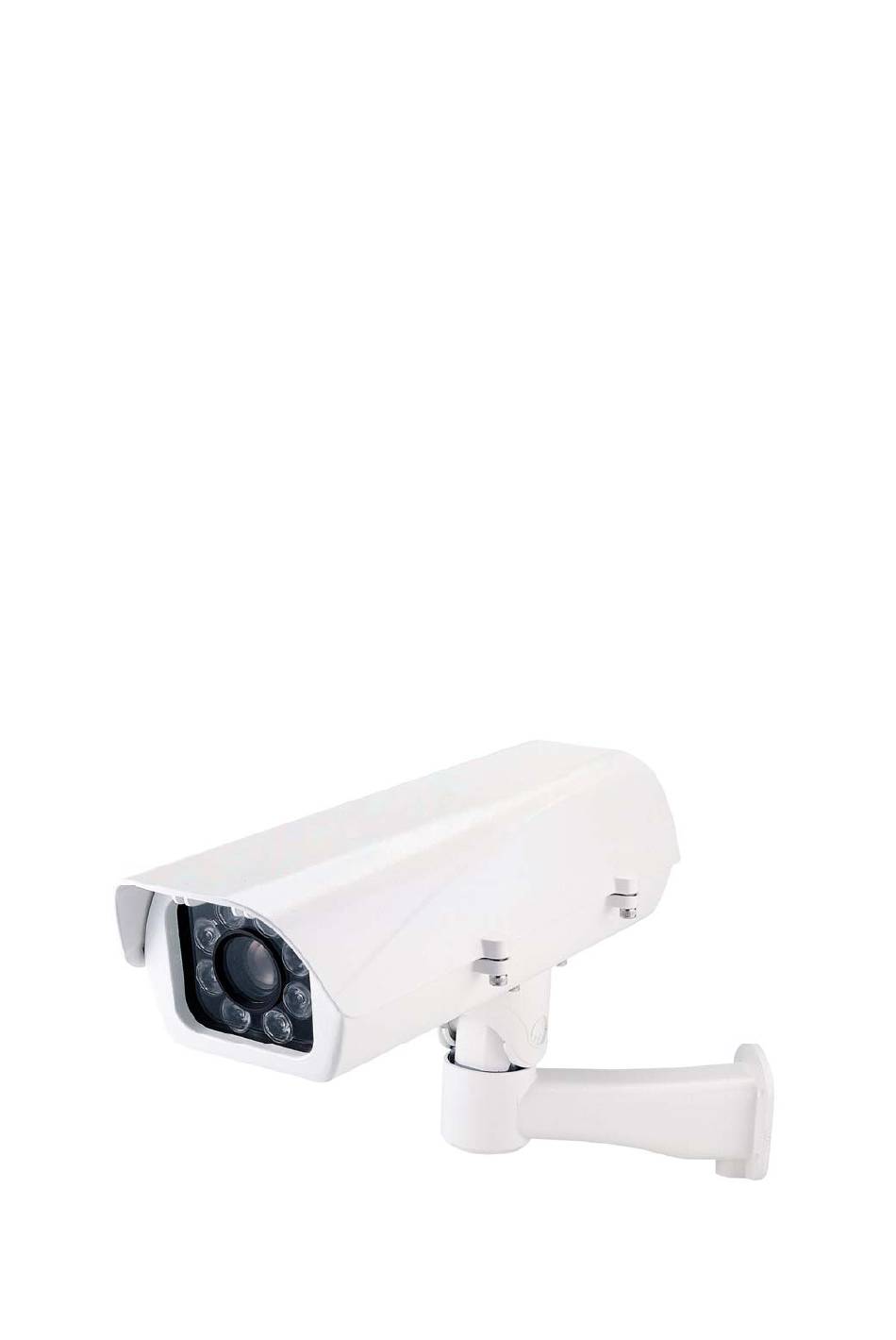

- Page 1 High Resolution High Sensitivity HDR Wide Dynamic Camera in External Water Proof Housing with High Power IR LEDS INSTRUCTION MANUAL 15-CO463VIC...
-
Page 2: Table Of Contents
CONTENTS PRECAUTION……………………………………………….2 FEATURES…………………………………………………..3 DIMENSION ..……………………………………………….3 SPECIFICATIONS…………………………………………..4 BASIC TECHNICAL DATA AND DEFAULT SETTING ….5 OSD MENU OPERATION INSTRUCTION……………….8... -
Page 3: Precaution
PRECAUTION Do not open or modify Do not adjust the camera's internal circuits or power supply modules, as it may cause damage to the unit. For internal set up and repair, please consult our dealer. Do not put objects inside the unit Do not put metal objects or flammable substance inside the camera for it may cause damage to the unit. -
Page 4: Features
FEATURES MODEL:15-CO463VIC Super Hi- Res. CCD with Star-Light 600TV lines (D/N) HDR Wide Dynamic Video Digital Signal Processor (SOC) IC 0 LUX with Super high power IR LEDs @100M AUTO / MANUAL Electronic SHUTTER speed adjustable High Sensitivity, Low Smear, excellent anti-blooming... -
Page 5: Specifications
SPECIFICATIONS Model No. 15-CO463VIC Image Pick-up Device 1/3“ CCD Image Sensor (Hi-Res) Type Colour / Monochrome Signal System NTSC / PAL Total Pick-up NTSC: 811x 507, PAL: 765 x 595 Effective Picture Elements NTSC: 771 x 492, PAL: 753 x 582 Horizontal Resolution 600 TV lines（D/N）... -
Page 6: Basic Technical Data And Default Setting
BASIC TECHNICAL DATA AND DEFAULT SETTING Focal adjust Adjusting The Back Focus of a Lens The back focus knob is located on the bottom side of the camera. It is used for fine-tuning different back focal distance with C/CS Mount Lens by changing the distance between CCD sensor and camera’s lens. - Page 7 IRIS Lens cable Instruction There is oval hole on the side cover of camera. This is for collecting the excess iris lens cable. 1. Pull out the rubber cover, an oval hole appears. rubber cover 2. Connecting lens with camera, plug the lens cable into auto iris jack, and then put the excess lens cable into oval hole.
- Page 8 Control key and function 15-151515 15-CA453C 15-CA453C 15-CA453 1. ICR TRIGGER (15-CA453C ONLY) ICR FILTER CONTROL BY EXTERNAL TRIGGER WITH NO / NC 2. POWER LED 3. POWER INPUT (DC12V，AC24V)。 4. OSD FUNCTION SWITCH。 5. AUDIO OUTPUT 6. VIDEO OUTPUT...
-
Page 9: Osd Menu Operation Instruction
OSD Menu Operating Instruction SETUP MANU (1/3) I M A G E Q U A L → 1 A G C S E N S G A M M A E N H A N C E S E T T B A C K L I G H T B A L A N C E... - Page 10 1. To display OSD MENU on the screen, press the MENU key for 2 seconds. 2. To turn of OSD MENU on the screen, press the RETURN key. 3. Press UP, DOWN and RIGHT keys to move and make the decision. IRIS →...
- Page 11 GAMMA G A M M A → T Y P E / T Y P E TYPE 1: GAMMA= 0.45 TYPE 2: GAMMA= 1.00 ENHANCE E N H A N C E G A I N — — — — — — █ — — — — — — G A I N —...
- Page 12 BACK LIGHT B A C K L I G H T → / O F F A R E A Backlight function is not working. B A C K L I G H T → / O F F A R E A 48 backlight areas can be selected and shown by gray marking.
- Page 13 MOTION DETECT M O T I O N D E T E C T O F F / O N → → A R E A T I M E → 1 0 S E C S E N S L —...
- Page 14 H/V REVERSE H / V R E V E R S E → H R E V E R S E → O F F / O N R E V E R S E → O F F / O N FREEZE F R E E Z E →...
- Page 15 LANGUAGE L A N G U A G E → E N G L I S H 中 文 ( 繁 體 ) TITLE T I T L E → ! " # $ % & ' ( ) * + - / 0 1 2 3 4 5 6 7 8 9 : ;...
