INSTALLATION GUIDE
48V VidaPower® Ultra 802.3bt
PoE++ / Power-over-CAT5 / Ethernet Injector
VB_VPWR_U_48V_INJ

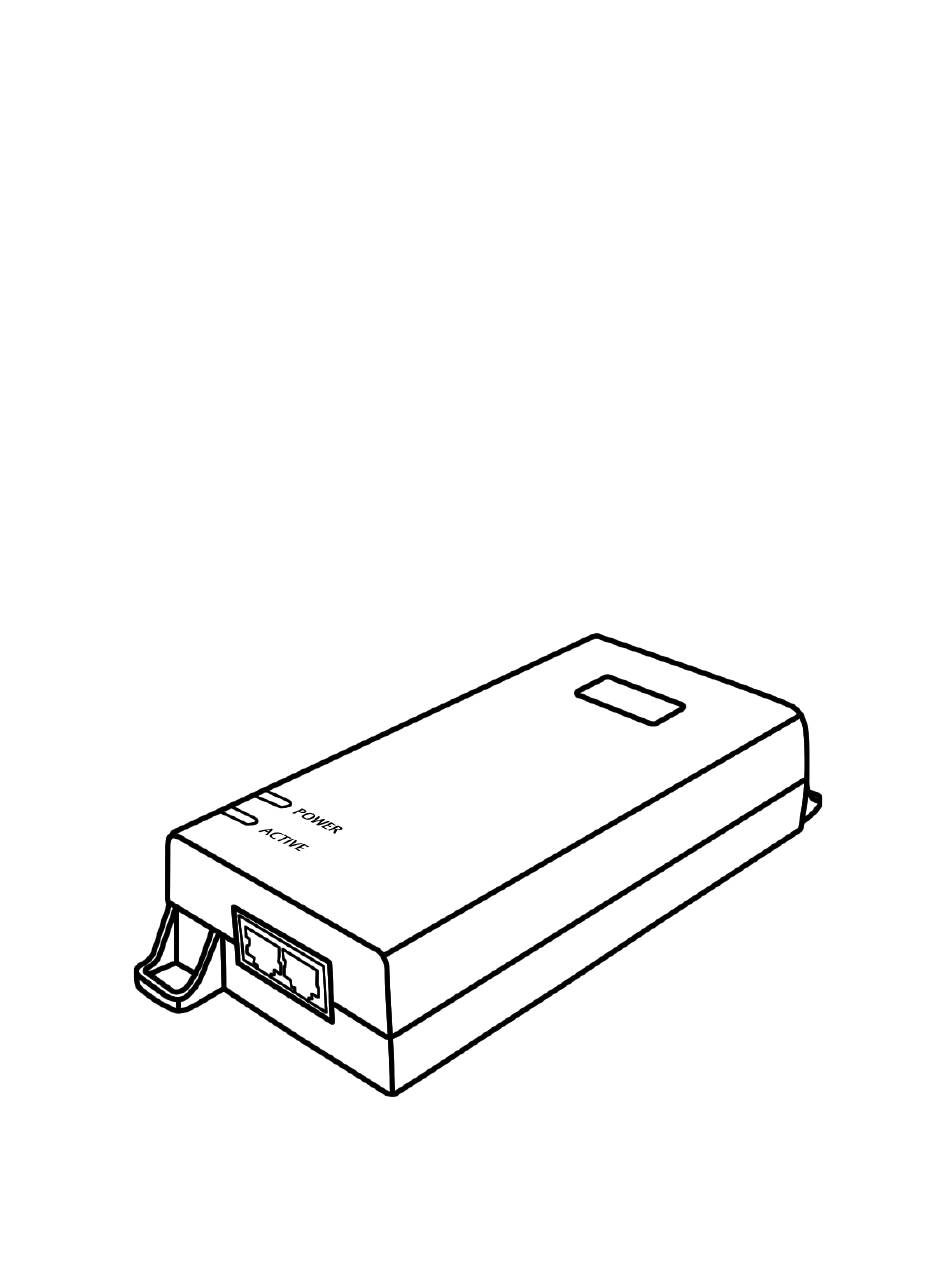

Optimized for 48V VidaCharger® Ultra Power-over-Ethernet (PoE) to USB-C Power Adapters
With (1) x RJ45 LAN Input & (1) RJ45 POE++ Output
Provides up to 60W power · IEEE802.3af (15W) & IEEE802.3at (30W) compatible
NOT COMPATIBLE WITH 24V DC OLDER GENERATION VIDACHARGERS
DOES NOT OUTPUT 24V DC
Advertisement
Summary of Contents for VidaBox VidaPower Ultra 802.3bt
- Page 1 INSTALLATION GUIDE 48V VidaPower® Ultra 802.3bt PoE++ / Power-over-CAT5 / Ethernet Injector VB_VPWR_U_48V_INJ Optimized for 48V VidaCharger® Ultra Power-over-Ethernet (PoE) to USB-C Power Adapters With (1) x RJ45 LAN Input & (1) RJ45 POE++ Output Provides up to 60W power · IEEE802.3af (15W) & IEEE802.3at (30W) compatible NOT COMPATIBLE WITH 24V DC OLDER GENERATION VIDACHARGERS DOES NOT OUTPUT 24V DC...
- Page 2 Installation Instructions 48V VidaPower® Ultra 802.3bt PoE++ / Power-over-CAT5 / Ethernet Injector Optimized for 48V VidaCharger® Ultra Power-over-Ethernet (PoE++) to USB-C Adapters Important Notes: Do not use with 24V DC VidaCharger (Older generation) adapters. This unit outputs 48V, which may damage 24V DC •...
- Page 3 Installation Steps 1. Connect the power cable‘s trapezoidal plug into the rear of the VidaPower® Ultra Injector AC Power Cord In Ethernet / Data In PoE++ Port Output 2. Connect the power cable into a standard wall outlet. The unit’s POWER LED should now light up, confirming power.
- Page 4 LED Indicator Chart Indicator Status Condition Power Injector is powered on (Default / NORMAL) Light Off Injector is powered off / not plugged in / no power Active* Lit / Blue Power output is active, with more than 30W, but less than 60W (POE Load Lit / Green Power output is active, with less than 30W...
