ONE-CLICK
In the Box:
- Thermostat
1pc
- User Guide
1pc
About Your Warm4less One-Click Thermostat:
Screen Display: 64mm x 64mm Size: 86mm x 86mm x 23mm
�
Colour: White
�
Visible wall thickness: 13mm - Non-visible wall thickness: 86mm/60mm European
�
External Sensor op�on available
�
0.5° Accuracy calibra�on.
�
5+2 days programmable (week/weekend) or manually programmable. 2 pre-set programmable modes available
�
�
Child-Lock func�on
�
Product Specifica�on:
�
Power: 2 x AA/1.5V Alkaline ba�eries
�
Display accuracy: 0.5°
�
Probe Sensor: NTC(10k)1%
�
Contact Capacity: 5A/230V (1150W)
�
Opera�ng temperature: 0-50°C
�
Temperature display range: 0°C-40°C. Range: 5-35°C
�
Output: Switch relay
�
Insula�ng condi�on: Normal
�
Running program: 1-week cycle
�
Installa�on: Ba�ery powered
�
1
01205 821 796
INSTRUCTION
- Screws
2pcs
- Floor Sensor (3m) 1pc
www.warm4less.com
MANUAL
office@warm4less.com
Advertisement
Table of Contents
Related Manuals for Warm4Less ONE-CLICK
Summary of Contents for Warm4Less ONE-CLICK

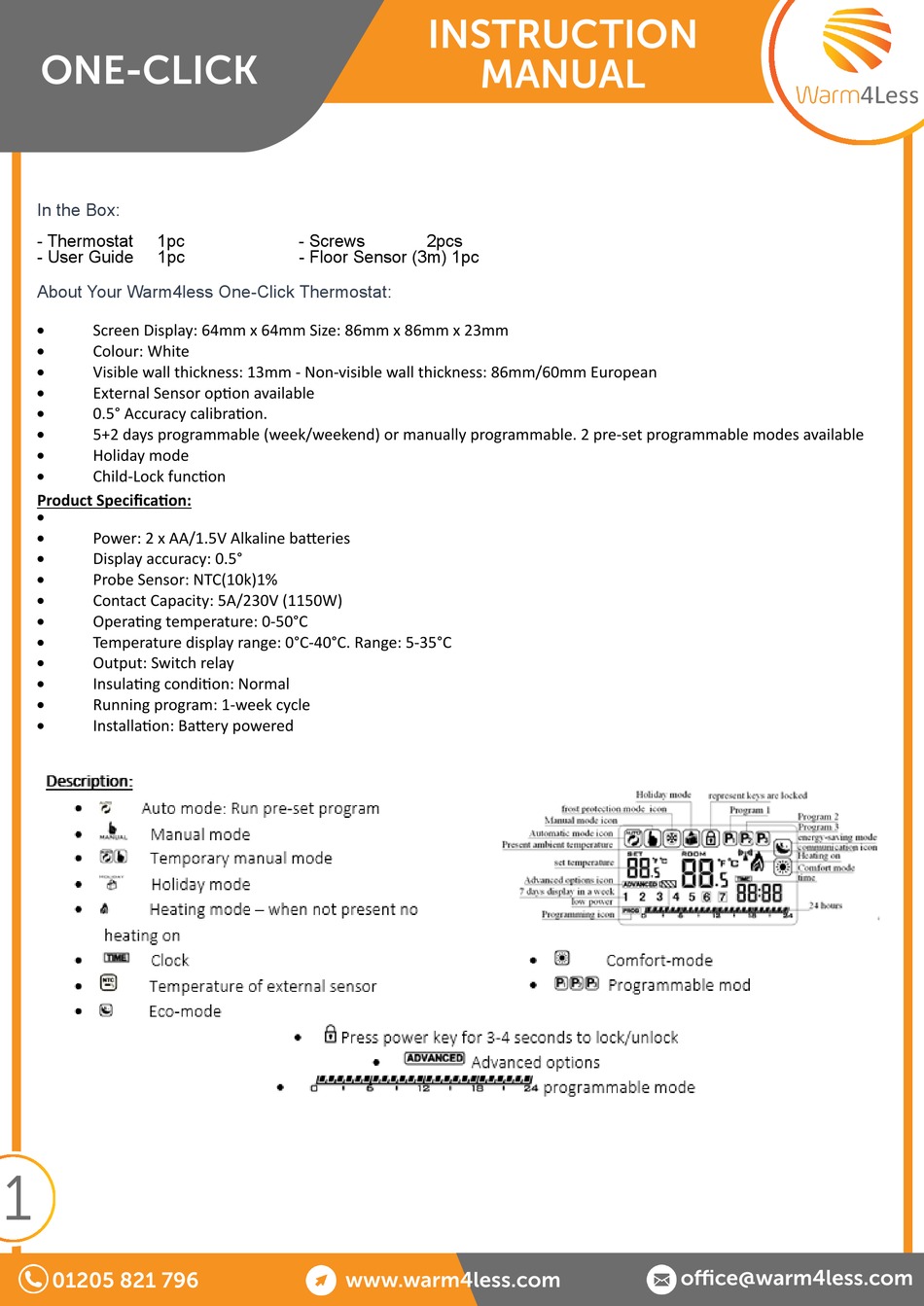

- Page 1 - Thermostat - Screws 2pcs - User Guide - Floor Sensor (3m) 1pc About Your Warm4less One-Click Thermostat: Screen Display: 64mm x 64mm Size: 86mm x 86mm x 23mm � Colour: White � Visible wall thickness: 13mm - Non-visible wall thickness: 86mm/60mm European �...
- Page 2 When the TIME icon is flashing, the user can adjust the set minute, hour and week by using the rotary button. Warm4less One-Click - Programmable Mode: 3 Different modes: P1, P2 and P3. Hold down the rotary button for 3 seconds, rotate the button to choose P1.
- Page 3 Detected temperature by external sensor is below setting temperature of A6 (Advanced options). This will then trigger low temperature protection and appear,it will auto open relay to heat and the flame will reappear Advanced One-Click Op�ons: Hold down the rotary button for 3 seconds, enter the advanced option setting by rotating the button to advanced , and press the dial.
- Page 4 INSTRUCTION ONE-CLICK MANUAL Troubleshooting: Use these steps to help troubleshoot if you have trouble setting up the receiver or controller. Constant Blinking of the signal icon: If you have plugged the receiver in and the red light on the receiver flashes off (after 10 seconds of power) and the controller does not connect please follow the steps below: Plug in the receiver with the switch on the receiver in the down position to turn the receiver off.
