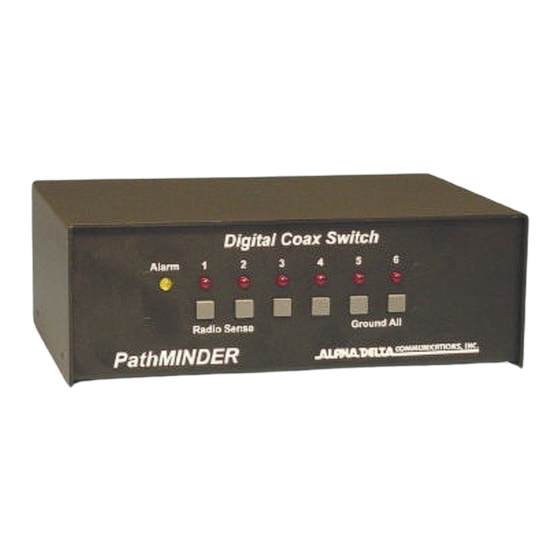

PathMINDER

Digitally Controlled

Coax Switch

The Future of

Coax Switches

is here!

Coax positions - Six

Microprocessor Controlled - Software Upgradeable

Position indication - One LED for every switch position

Alarm indication - Yellow LED

RF power handling capability - 1.5 KW

Frequency range - 1.8 to 54 MHz

Isolation - >50 db

Grounding modes - Ground all and ground all except position six

Radio sensing modes - Ground all, ground all except position six, off

Radio Sensor interface - 1.0 to 20 volts DC, <1 mA

Power Requirements - 11 to 15 volts, 250 mA

Size: 7.5" W x 5"D x 2.5" H

Weight: 2 lbs

Specifications

Specifications subject to change without notice

Table of Contents

Do you have a question about the PathMinder and is the answer not in the manual?

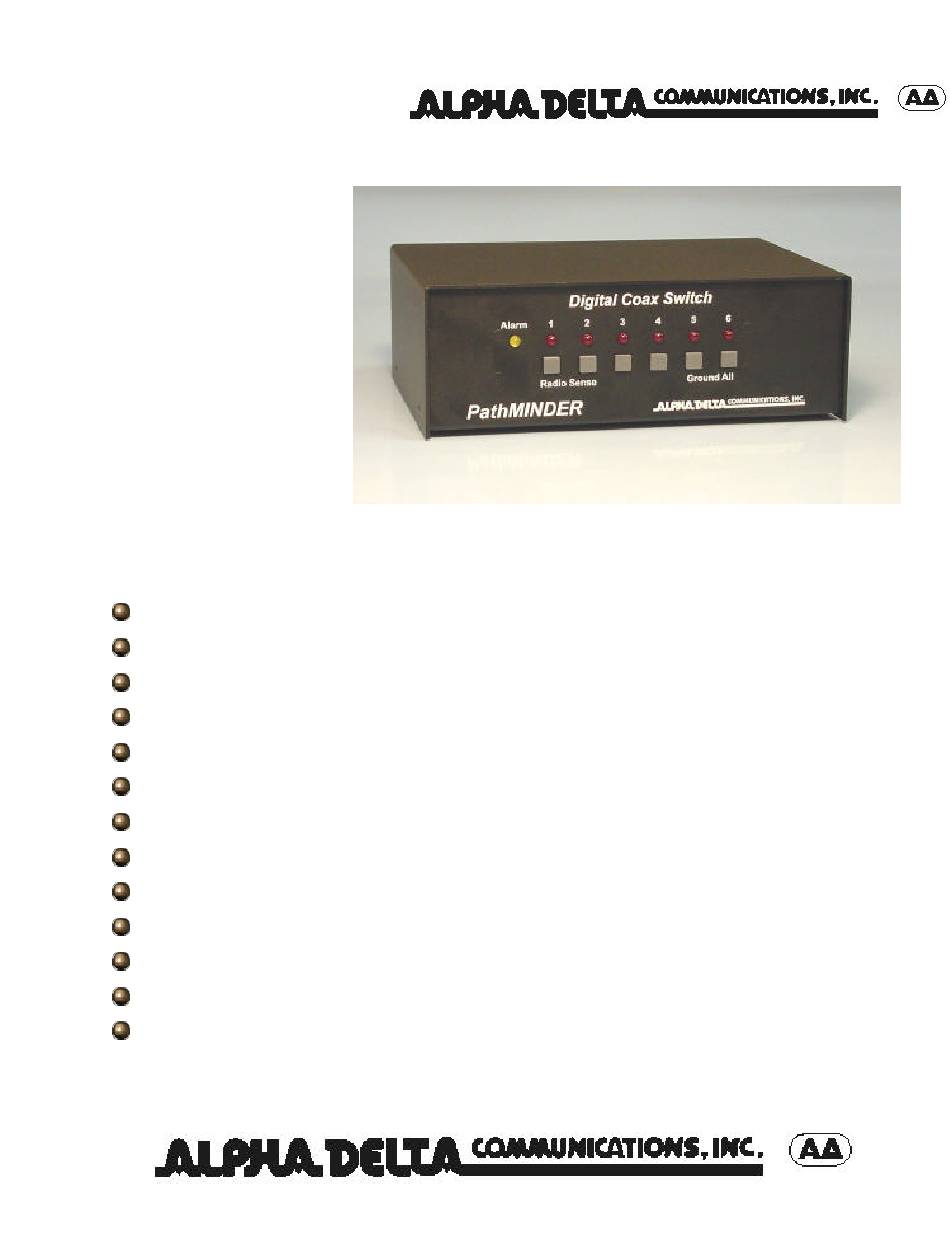

Page 1 PathMINDER Digitally Controlled Coax Switch The Future of Coax Switches is here! Specifications Coax positions - Six Microprocessor Controlled - Software Upgradeable Position indication - One LED for every switch position Alarm indication - Yellow LED RF power handling capability - 1.5 KW Frequency range - 1.8 to 54 MHz...
Page 2 PathMINDER’s ground connection on the back panel. The PathMINDER is supplied with two cables that can be used for power and/or radio sense control. On both cables, the red is positive and the black is negative. Each input is protected against reverse power.
Page 3 Be sure to remember that if DC power is removed from the PathMINDER (by the user or power failure) that the unit will immediately change to position six. There will be no LED...
Page 4 The PathMINDER also feature a non-volatile memory that stores the current mode and position selection in case of power failure. This is useful where the PathMINDER is powered by the station power supply. When power is removed, the switch will change to position six.
