Worldclass Intelligent Network

Model: SHGW-001S

Infra-red Intelligent Control Gateway Manual

Table of Contents

Need help?

Do you have a question about the SHGW-001S and is the answer not in the manual?

Questions and answers

Summary of Contents for HomeSmart SHGW-001S

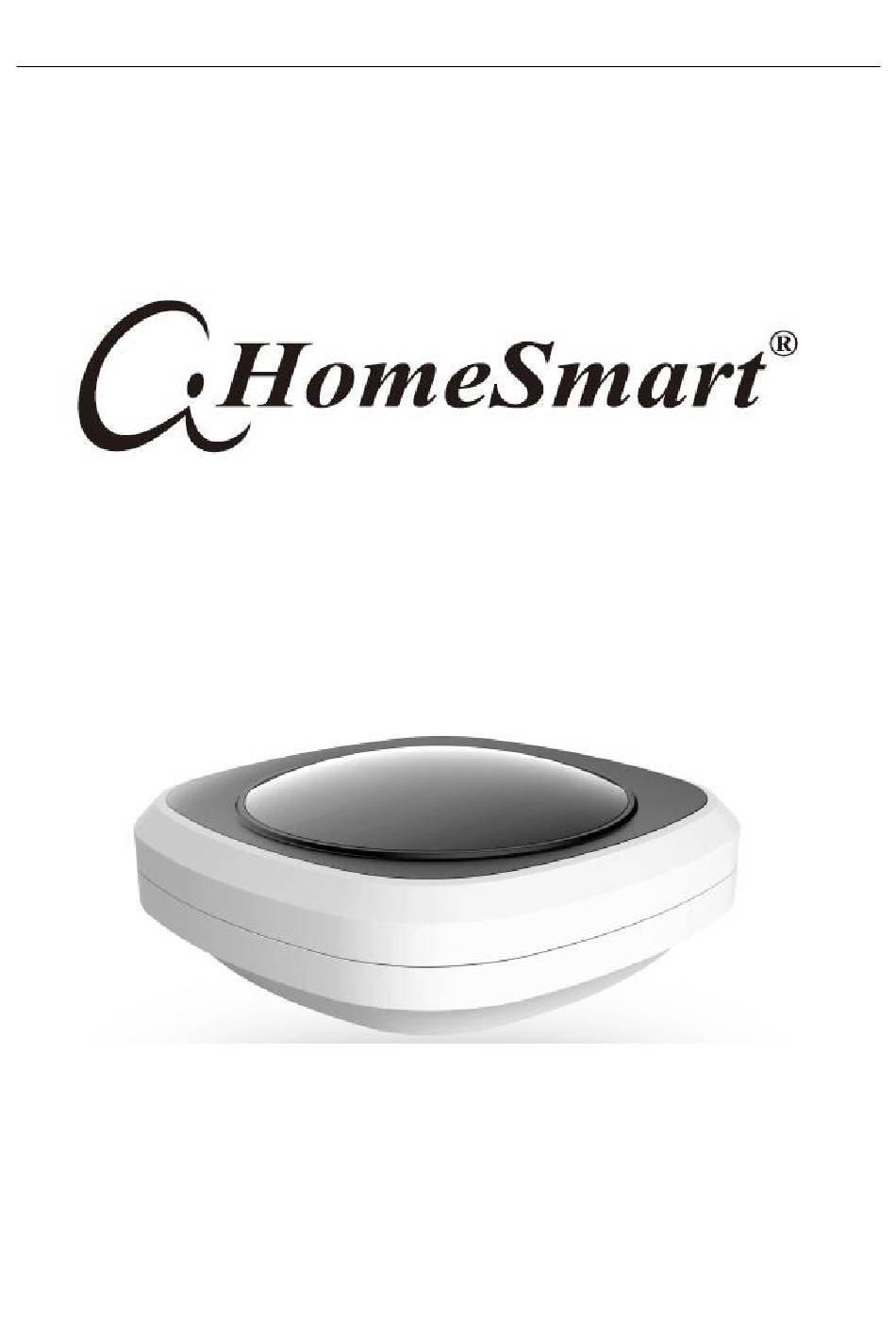

Page 1 Worldclass Intelligent Network Model: SHGW-001S Infra-red Intelligent Control Gateway Manual...
Page 2: Table Of Contents
Worldclass Intelligent Network 2 Contents Foreword......................... 1 Gateway Packaging List....................1 Product Parameters......................2 Gateway Descpription.....................3 Status Indicator Discription.................... 4 APP Description......................5 Registration Procedure....................5 Mailbox Registration...................... 5 Mobile Phone Registration..................... 7 Login Procedure......................8 Process after Forgetting Password..................9 Change password by mobile phone verification............9 Change password by mailbox verification..............
Page 3: Foreword
Worldclass Intelligent Network 3 Foreword Dear users, you are welcome to use infrared intelligent control gateway. This manual will help you to understand and familiarize yourself with the function and experience of the product. Note: This product needs network support Infra-red intelligent control gateway is the core equipment of Worldclass Smart Home.
Page 4: Product Parameters
Product Parameters Operating voltage:AC100V~240V to DC5V Operating current:≤90mA WIFI Operating frequency: 2.4G~2.5G（2400M~2483.5M） WIFI Transmitting power:802.11b: +20dBm/802.11g +17dBm/802.11n: +14dBm WIFI Receiving sensitivity: 802.11b：-91dbm/802.11g -75dbm/802.11n：-72dbm WIFI Support mode:Station/SoftAP/SoftAP+Station WIFI Encryption type:WEP/TKIP/AES 433 Operating frequency:433.92MHz 433 Modulation mode:ASK (AM)/FSK (FM) 433 Transmitting power:≤20db 433 Receiving sensitivity:≤-121dBm 433 Communication...
Page 5: Gateway Descpription
Gateway Descpription Status indicator light (Red) Power interface Power indicator light (Green) Power interface Power indicator light (Green) External USB5V/1A power supply Display the power on condition, normally long bright Status indicator light (Red) Restart or enter WIFI configuration mode Display the current working status of the gateway 1.
Page 6: Status Indicator Discription
Status Indicator Discription Run Long Bright: Configuration Flash: After the gateway is Gateway is powered on, it will start up within 10 not configured with a wireless network, seconds. gateway been indicator light will flash for half a configured with WIFI, the indicator light second, and the gateway enters the will remain on for a long time to indicate wireless configuration mode.
Page 7: App Description
APP Description System version: Android 4.1 above or iOS 6.0 above Mobile memory: over 50MB WIFI network: up to 8M or above Please scan the following QR code to download the APP Android Registration Procedure →Mailbox Registration A. Click the "Registration" button in the lower left corner of the login interface, to enter the "Registration"...
Page 8 B. On the "Registration" page, enter the email address and click the "Send Verification Code" button. Enter the verification code received by the mailbox at the "SMS Verification Code". Click next to enter the "Complete Information" page. Note: If you do not receive the verification code, please check the spam mailbox.
Page 9: Mobile Phone Registration
Mobile Phone Registration → A. Click the "Registration" button in the lower left corner of the login interface, to enter the "Registration" page, click "Mailbox Registration". B. Enter the phone on the “Registration” page, click the “Send Verification Code” button. Enter the verification code received by the phone at the “SMS Verification Code”.
Page 10: Login Procedure
C. In the "Complete Information" page, enter the name of the account at the "User Name", enter the password at the "Password", click "Complete", and complete the operation of the registered account. Login Procedure A.In addition to the "User Name/Mobile Number" of the login page, enter the name of the account when you registered or the phone number you filled in.
Page 11: Process After Forgetting Password
Process after Forgetting Password Change password by mobile phone verification A.Click the "Forget the Password?" button in the lower right corner of the login interface, and the verification method selection page will pop up. B.Click the "Mobile Phone Verification" to enter the "Mobile Phone Verification" page.
Page 12: App Settings
APP Settings Gateway Replacement Description → A. Each gateway can only be bound to one account/phone. If you need to use the same gateway, you can only log in the sub-account established by the main account. When the user account is bound to multiple gateways, you can click “Settings”...
Page 13: Gateway Unbinding Description
APP Settings →Gateway Unbinding Description A. If you want to switch the gateway to another account/phone binding, original account/mobile phone must be unbound. Click "Settings" in the lower right corner, click "Device Configuration" enter "Device Configuration" page. B. Click the "Unbind" in the lower right corner and click the gateway that needs to be un bound.
Page 14: Gateway Firmware Upgrade Description
APP Settings →Gateway Firmware Upgrade Description A.Click "Settings" in the lower right corner of the software, go to the "Settings" page, click "Firmware Upgrade", and the software will check if the gateway program is up to date. When prompted for a new version of the gateway program, click “Yes”...
Page 15: Gateway Add Process
Gateway Add Process A. Click the "Device" menu, and then click the "+" button in the upper right corner to enter the "Add" page. B. Click "Gateway" on the "Add" page, enter the device name according to the APP prompt, and click “Confirm”.
Page 16 C. Scan the QR code at the bottom of the gateway. If you can't scan, please enter the serial number manually. D. On the pop-up page, enter the device verification code of four-digits (located on the TAB at the bottom of the gateway), click "Confirm" to enter the WiFi settings page.
Page 17 E. See this page and switch the APP to the background running. Long press the key for 5 seconds See indicator light flashing...
Page 18 G. Click the phone "Settings" to find the "Wireless LAN". H. Find EasyConf-4ACE's wireless LAN, click the connection and switch back to Smart Home APP.
Page 19 I. Select your home wireless WIFI, enter the password, and complete the addition. J. When you see the device page displaying "Gateway" and the status "Online", it indicates that the addition is successful. Note: If the status shows "Offline", please confirm whether the WiFi password is typed incorrectly.
Page 20: Modify Gateway Wifi Configuration
Modify Gateway WIFI Configuration Modify the gateway WIFI configuration to change the gateway to connect to WIFI A. Click to enter the “Device” menu, and click the gateway device to enter the gateway interface. B. In the gateway interface, right-click the "。。。" and select "Modify WIFI Settings".
Page 21 C. After entering the “Modify WIFI Settings” interface. Long press the key for 5 seconds See indicator light flashing...
Page 22 E. Click the phone "Settings" to find the "Wireless LAN". F. Find EasyConf-4ACE's wireless LAN, click the connection and switch back to Smart Home APP.
Page 23 J. Select the wireless WIFI you want to change, enter the password And finish adding. H. When you see the device page displaying "Gateway" and the status "Online", it means that “Modify Gateway WIFI Configuration” is successful.
Page 24 Modify gateway WIFI configuration through WeChat A.Connect the mobile phone to your own router WIFI. Open WeChat, search for and add “Ai-thinker Tech”’s public account. B.Press gateway key for 10 seconds, gateway LED light changes from quick flash to slow flash, release the key. Enter the "Ai-thinker Tech"...
Page 25 D. Start WIFI Configuration E. Enter the WIFI password and connect.
Page 26: Addition Of Air Conditioning
Addition of Air Conditioning A. Click on the “+” in the “Device” menu to enter the device add interface. B. Click to enter the "Add" menu, and click the "Air Conditioner" to add the device.
Page 27 C. Click to enter “Assign Controller” and select gateway. D. Click to enter “Add Device” and choose your brand of air conditioner.
Page 28 Click the button "Switch" to test whether conditioner is responsive. Test the air If there is no response, click conditioner to the "Next" button respond by clicking “Confirm Use” and name it. F. See the "Device" page that shows the air-conditioning device to indicate that the addition is successful.
Page 29: Process Of Room Addition
Process of Room Addition A. Click on the "Place" and click on the "+" in the upper right corner. B. Select the location image you want to add, and click on the icon.
Page 30 C. Select the device you want to add to the scene. D. Finish addition.
Page 31: Add/Change/Rename/Delete A Room
Add/Change/Rename/Delete a Room In the "。。。", select the functions you need and follow the tips...
Page 32: One-Click Scenario Description
One-click Scenario Description A. Click the "+" in the upper right corner and select "One-click Scenario". B. Select mode.
Page 33 C. Click the "Add Device" button and select the device to add to the one-click scene. D. Click on the device you need to execute.
Page 34 E. Select whether the device is open or closed, and click "OK". F. Finish addition.
Page 35: Timing Scenario Description
Timing Scenario Description A. Click the "+" in the upper right corner and select "Timing Scenario". B. Select mode.
Page 36 C. Select the device you want to add. D. Select the list device to open or close.
Page 37 E. Set the time when your list is executed. F. Set to "On" by clicking on the "Closed".
Page 38: Use Linkage
Use Linkage The use of linkage scenes, must be equipped with the company's gate magnet, human body sensors and other sensors. A. Click the "+" in the upper right corner and select "Linkage Scenario". B. Select mode.
Page 39 C. Click on the "Select Sensor" and "Add Device" to set the process you want to link. D. Click on the setting condition "Open Trigger" / "Close Trigger", and click "Curtain Slider" to set the percentage of open.
Page 40 E. The rolling delay is executed to set the time for the device to delay operation. Click “OK”. F. Set to "On" by clicking on the "Closed".
Page 41 Add/Delete/Change/Rename Scenarios In the "。。。", select the functions you need and follow the tips...
Page 42: Sign Out
Sign Out A. Click the "Application Settings" and enter the "Application Settings" interface. B. Click on the "Sign Out".
Page 43: Family Sub-Account Management
Family Sub-account Management A. Click the "Family Sub-account Management" and enter the "Family Sub-account Management" interface. B. Click on the "+" to register the mailbox/mobile phone. Please refer to page 5 for registration process.
Page 44 C. Select the device that you want to assign to other members of your family. D. Click “Confirm” to share the usage rights to your other family members.
Page 45 Compatible Device Infrared Intelligent Control Gateway is compatible with other devices of our company and can be controlled by the same APP. Intelligent switch Worldclass Camera VS Fingerprint lock For more products, please add the WeChat public account There are more intelligent products available, please pay attention to our website: http：//www.worldclass-intelligence.com...
