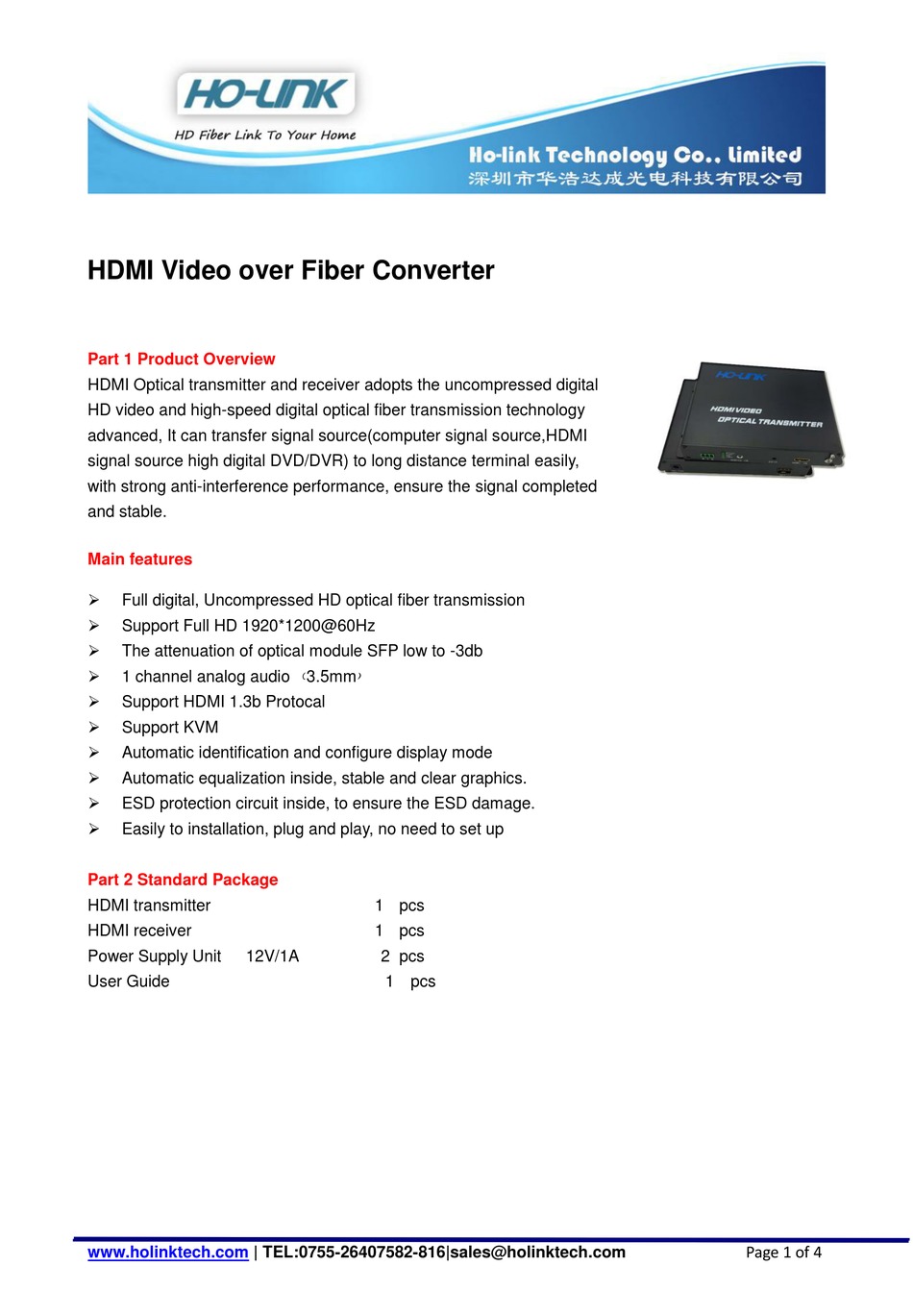

HDMI Video over Fiber Converter
Part 1 Product Overview
HDMI Optical transmitter and receiver adopts the uncompressed digital
HD video and high-speed digital optical fiber transmission technology
advanced, It can transfer signal source(computer signal source,HDMI
signal source high digital DVD/DVR) to long distance terminal easily,
with strong anti-interference performance, ensure the signal completed
and stable.
Main features
Full digital, Uncompressed HD optical fiber transmission
Support Full HD 1920*1200@60Hz
The attenuation of optical module SFP low to -3db
1 channel analog audio（3.5mm）
Support HDMI 1.3b Protocal
Support KVM
Automatic identification and configure display mode
Automatic equalization inside, stable and clear graphics.
ESD protection circuit inside, to ensure the ESD damage.
Easily to installation, plug and play, no need to set up
Part 2 Standard Package
HDMI transmitter
HDMI receiver
Power Supply Unit
12V/1A
User Guide
www.holinktech.com
| TEL:0755-26407582-816|sales@holinktech.com
1 pcs
1 pcs
2 pcs
1 pcs
Page 1 of 4
Advertisement
Summary of Contents for Ho-Link HL-HDMI-1V1D1A-T
- Page 1 HDMI Video over Fiber Converter Part 1 Product Overview HDMI Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced, It can transfer signal source(computer signal source,HDMI signal source high digital DVD/DVR) to long distance terminal easily, with strong anti-interference performance, ensure the signal completed and stable.
- Page 2 Part 3 Interface overciew Transmitter： Receiver： Interface Transmitter and Receiver HDMI_IN HDMI signal input port HDMI_OUT HDMI signal output port Fiber input port AUDIO_IN Audio input port AUDIO_OUT Audio output port DC-12V 12V Power port R T G RS232 port R(receive) T(transmit) G(ground) USB port to connect computer KEYBOARD/MOUSE Connect to keyboard and mouse...
- Page 3 No optical signal VIDEO Video signal on No Video Signal Device works smoothly Device not works smoothly POWER Power on Power off Part 4 Performance and Specification Temperature -5° C to +75° C Humidity 5 to 90 % RH (no condensation) The signal of Input and output HDMI Protocal...
- Page 4 Part 6 Application Graphics Page 4 of 4 www.holinktech.com | TEL:0755-26407582-816|sales@holinktech.com...
