OPERATING AND SAFETY GUIDE
BIG FOOT TOOLS

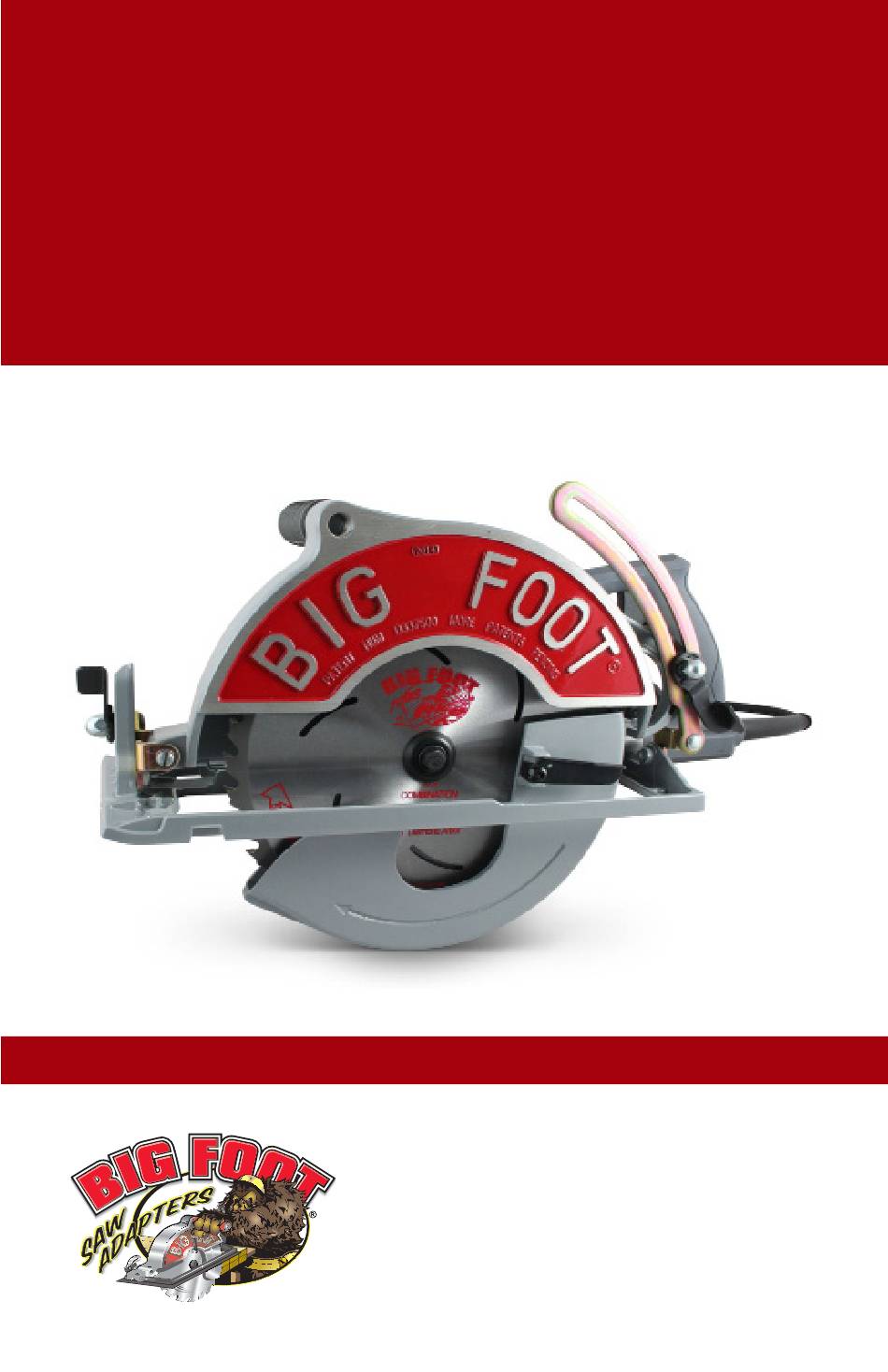

10-1/4" WORM DRIVE BEAM SAW
OWNER'S OPERATING AND SAFETY GUIDE
ITEM # SC-1025SU
IMPORTANT: READ BEFORE USING YOUR BIG FOOT SAW!
Big Foot Tools
Henderson NV 89009
Phone: 702-565-9954
Toll Free: 888-798-4499
Fax: 702-579-9046
Email: info@bigfoottools.com
www.bigfoottools.com
Advertisement
Summary of Contents for Big Foot SC-1025SU
- Page 1 OPERATING AND SAFETY GUIDE BIG FOOT TOOLS 10-1/4” WORM DRIVE BEAM SAW OWNER’S OPERATING AND SAFETY GUIDE ITEM # SC-1025SU IMPORTANT: READ BEFORE USING YOUR BIG FOOT SAW! Big Foot Tools Henderson NV 89009 Phone: 702-565-9954 Toll Free: 888-798-4499 Fax: 702-579-9046 Email: info@bigfoottools.com...
-
Page 2: Safety Rules
OPERATING AND SAFETY GUIDE BIG FOOT TOOL ADAPTERS GUIDE SAFETY RULES GENERAL AND PERSONAL SAFETY WORK AREAS should always WEAR SAFETY GOGGLES be clean and clutter free. glasses with side shields at all times. Wear hearing protection DO NOT EXTEND... - Page 3 OPERATING AND SAFETY GUIDE BIG FOOT TOOL ADAPTERS GUIDE SAFETY RULES GENERAL AND PERSONAL SAFETY 14. DO NOT FORCE THE SAW 22. DO NOT USE THE SAW IF IT through the material. Let the HAPPENS TO DROP. Check all saw do the cutting at a safe moving parts before using.
-
Page 4: Blade Attachment
WARNING: This is a kit. Proper installation depends upon you to make sure it is done right. Big Foot® Saw Adapters is not responsible for installation of the kit to your Skil® Type 17, Bosch® 1677M, or Mag77® Type1. DO NOT;... - Page 5 OPERATING AND SAFETY GUIDE OPERATING INSTRUCTIONS DEPTH ADJUSTMENT Unplug the cord from power source. Loosen the depth adjustment lever located on the upper guard. Hold the foot down with one hand and raise or lower the saw by the handle. Tighten lever at the desired depth.
- Page 6 OPERATING AND SAFETY GUIDE 1. Notice that when slide is all the way down the handle of the saw hits the foot plate. 2. Lift the saw slightly so that there is a gap in between the foot-plate and the saw. Loosen the thumb lever on the slide to raise the saw.
- Page 7 If the bottom part of the pointer hits the top of the foot then take a file and file down slightly. Your Big Foot Saw should now be at a 90° Be sure to follow all safety in- structions in operator’s manual.
-
Page 8: Bevel Adjustment
OPERATING AND SAFETY GUIDE BEVEL ADJUSTMENT Disconnect plug form power source. The foot can be adjusted up to 45° by loosening the bevel adjustment lever at the front of the saw. Align to desired angle on calibrated quadrant. Then tighten bevel adjustment first, then the depth adjustment lever (Fig. - Page 9 The saw will feel a little different with the 10 ¼” blade. Remember, you now have a Big Foot® with the 10 ¼” blade. It now cuts up to, 3 7/8” depth of cut, so please think safety at all...
- Page 10 Big Foot Tools Henderson, NV 89009 Phone: 702-565-9954 Toll Free: 888-798-4499 Fax: 702-579-9046 Email: info@bigfoottools.com www.bigfoottools.com...
