Summary of Contents for Antrax IT Tavola MO Series

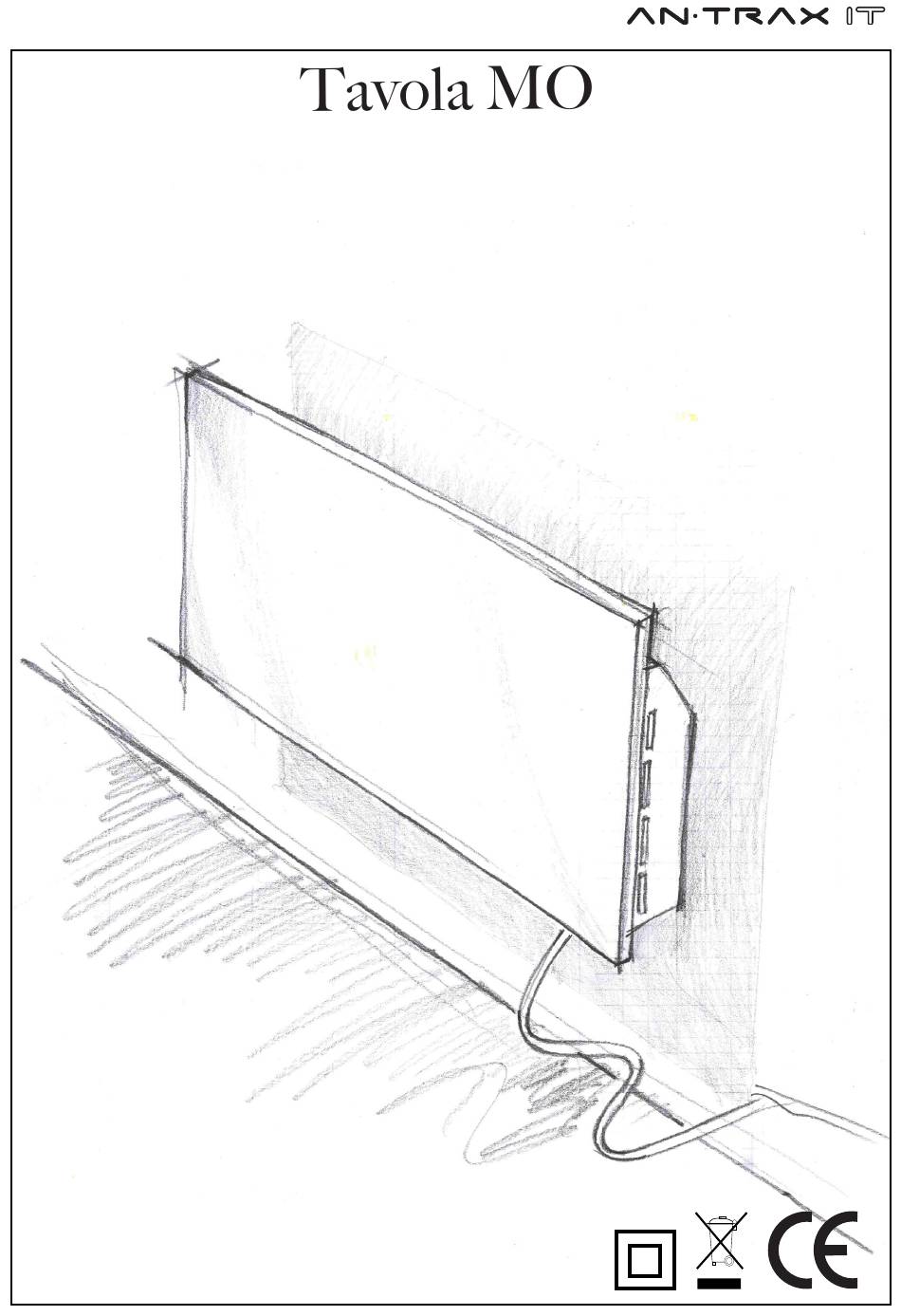

- Page 1 Via Boscalto 40 - 31023 Resana (TV) - Italy - +39 0423 7174 www.antrax.it MO-750 - 1000 - 1500 IPX4...
-
Page 2: Installation
Electric TAVOLA MO The TAVOLA MO is an electric radiator for domestic heating with a non-variable power level. The heating takes place by convection and radiation heat transfer. It is highly recommended to read this user and maintenance manual, especially the warnings. GENERAL Follow the safety standards in your country. - Page 3 IT- Directive 2002/96/EC (RAEE): user information This information note is exclusively for owners of appliances that have the symbol on the product’s rating label. This symbol indicates that, in accordance with current regulations, the product is classified as an electrical or electronic appliance and complies with EC Directive 2002/96 (WEEE).
- Page 4 FIGURA 1...
- Page 5 ZONA 1 ZONA 0 60 cm ZONA 2 ZONA 3...
- Page 6 MAX H.180 cm...
- Page 7 MIN 50 CM CAUTION DO NOT COVER CAUTION...
- Page 8 POSITION OF CABLE OUTPUT 1500 WATT Cm.11,3 vista superiore Cm.11,3 Cm.11,3 Cm.90 Cm.11,3 vista superiore VISTA SOPRA top view 50,5 Cm.90 Cm.11,3 50,5 Mensola sostegno posizione mensole ALTO Cm.46,0 vista frontale Mensola sostegno Cm.46,0 bracket position Cm.46,0 vista frontale vista posteriore VISTA INTERNA rear view uscita cavo...
