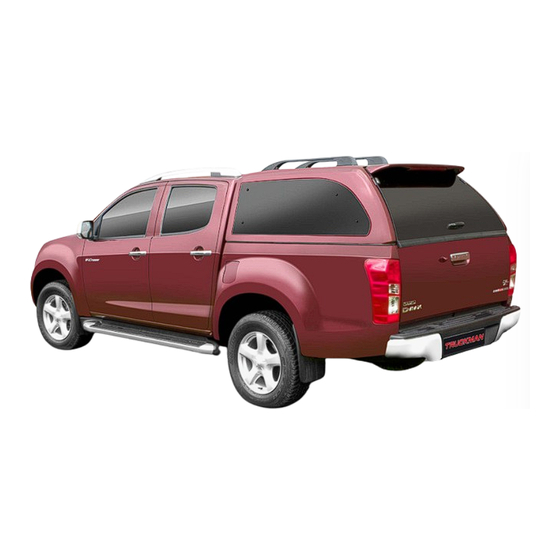

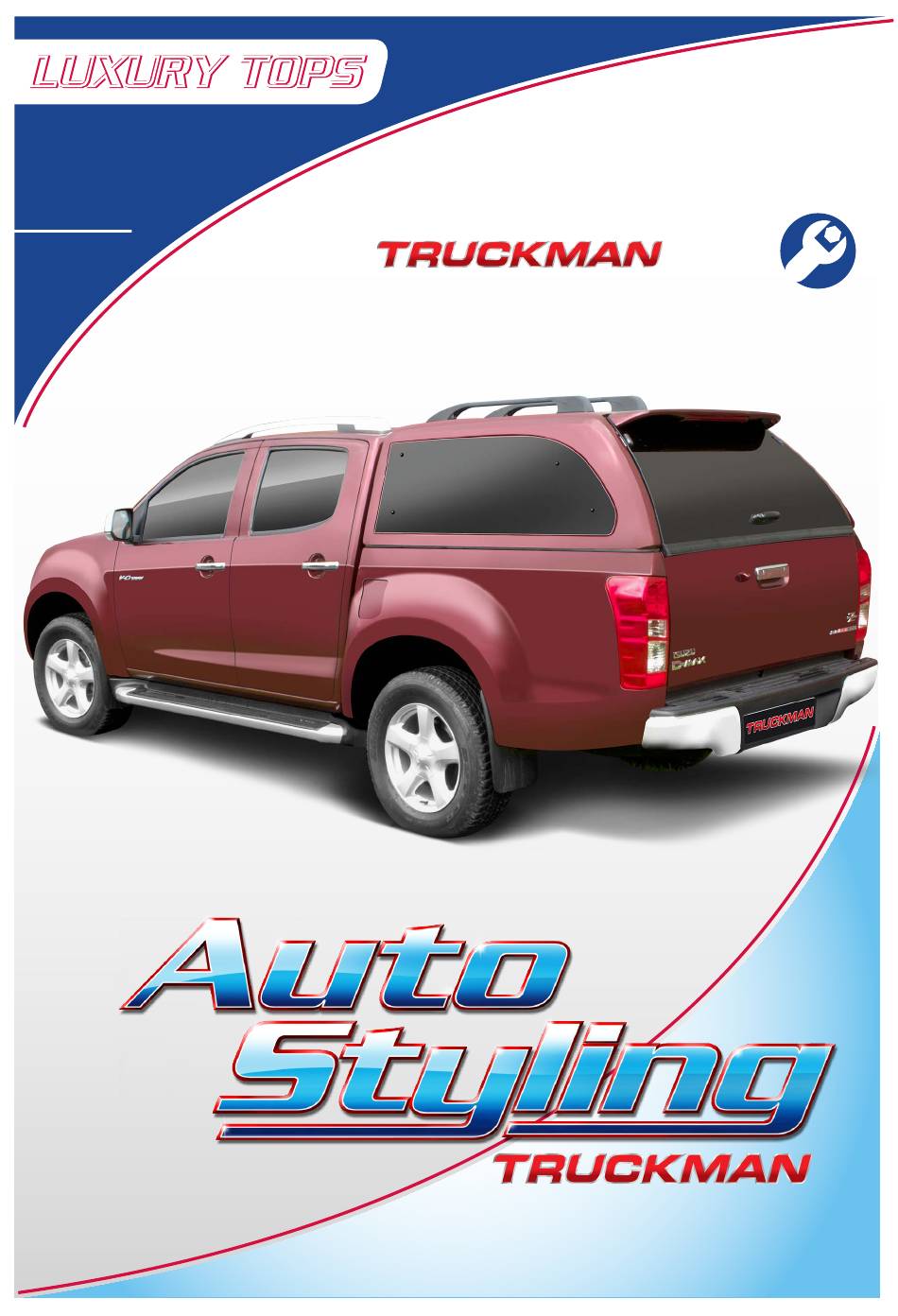

- Page 1 Luxury Tops Luxury Tops Luxury Tops Isuzu D-Max Mk4 EDITION Revision 2 FITTING INSTRUCTIONS www.autostylinguk.com...
- Page 2 Silicon Sealant & Pump 6 x Clamp Locks 2 x Roof Bars Drill Driver Pair of Pliers Multimeter (Recommended) 1 x Truckman Hardtop 1 x Wiring Loom 5 x Scotch Locks Also includes: 1 x Touch Up Paint 1 x 20A Fuse...
- Page 3 Is uz u • D -Max M k 4 OVERRAIL BEDLINERS can cause the hardtop to leak due to an uneven surface. Therefore Auto Styling highly recommends converting to or replacing with an underrail bedliner. For instructions, visit our website at www.autostylinguk.com/info/fitting-instructions/ Unscrew the brake light.
- Page 4 Isu zu • D - Ma x M k 4 Luxury Tops IMPORTANT: Door and tailgate MUST be closed for step 4. Tighten the clamps to 8Nm Torque using the 17mm wrench (Start with the middle clamps). Replace the bolt caps onto the clamps.
-
Page 5: Door Switch
Is uz u • D -Max M k 4 Double Cab In the door sill, expose the wires and locate the brake wire, heated rear screen wire, door switch wire and the central lock- ing wires. The extra cab is slightly different. - Page 6 Isu zu • D - Ma x M k 4 Luxury Tops Attach the BLACK wire to the earth post on the battery and the wire to the live post on the battery. Insert the fuse into the fuse holder and connect the wiring loom to the hardtop.
-
Page 7: Important Notes
Is uz u • D -Max M k 4 IMPORTANT NOTES The hardtop is designed to rely on the vehicles central locking. It should open and lock with the vehicle’s key fob. The included keys are intended to work as a backup, should the central locking fail. -
Page 8: Maintenance
Auto Electricians. Auto Styling UK Limited, Due to tolerances of the vehicle fitting of this product may differ from Unit 4 Narrowboat Way, Hurst Business Park, Brierley Hill, DY5 1UF, UK the exact fitting specifications described in the instructions.
