Beachside Lighting MB4 Manual

MB4 120V
LAMP TYPES:
• 120V MR16 GU10 bi-pin base; Max 50W halogen (outdoor use) / 10W halogen
(indoor use), 15W LED (indoor or outdoor use)
• LED Module; Max 12W
SUITABLE FOR WET LOCATIONS
WARNING — Risk of Electric Shock. Verify that power is OFF before installing this fixture.
This fixture must be installed in accordance with the National Electric Code and/or local
codes. Failure to do so may result in serious personal injury or death. Wiring must be done
by a licensed electrician.
INSTALLATION on BRASS SURFACE BOX (BSB)
1. For mounting to concrete, skip to Step 5.
2. When mounting to a wooden surface, use the Mounting Collar to mark locations of the
three mounting screws and hole(s) for the supply wiring.
3. Drill holes for wires as needed and drill pilot holes at the marked screw locations using
a 15/64" drill bit.
4. Secure the Mounting Collar with supplied 3/8" lag screws using a 9/16" socket/wrench.
Proceed to Step 10.
5. Dig a hole at desired location at least 12" diameter x 12" deep and run conduit as
necessary for power supply wires, using the Mounting Collar for positioning. Conduit
should stick up above top of concrete 1/4". (Figure 1)
6. Fill hole with concrete. Double-check conduit location with Mounting Collar.
7. Once concrete is set, place Mounting Collar over conduit and mark locations for the
three mounting holes.
8. Use a 5/8" masonry bit to drill a minimum 2-1/2" deep hole at each marked location and
tap in the supplied lag shields.
9. Secure the Mounting Collar with supplied 3/8" lag screws using a 9/16" socket wrench.
10. Pull supply wires and verify they are not energized.
11. Feed the wire leads from the fixture through the top of the BSB Cover, apply threadlock
to the Base threads, and screw the Cover tightly onto the 1/2" threads in the bottom of
the fixture.
12. Use included silicone-filled wire nuts to join fixture leads to supply wires as shown in
Figure 1: the black lead connects to hot, the white to neutral, and the green to ground.
Use silicone or electrical tape around wire nuts to ensure proper connection.
13. Slide the fixture with the Cover attached straight down over the Mounting Collar.
14. If the fixture is equipped with the Half Shield, orient the fixture so the light shines in the
desired direction. Alternately tighten the three set screws in the Cover with a 1/8" hex
wrench.
Input
wires
CSA Listing pending
800-405-6732
www.BeachsideLighting.com
Black (Hot)
white
Fixture
White (Neutral)
white
Green (Ground)
green
MOUNTING COLLAR
TOP VIEW
3/8" HOLES FOR
LAG SCREWS
CONDUIT GUIDES
CONCRETE

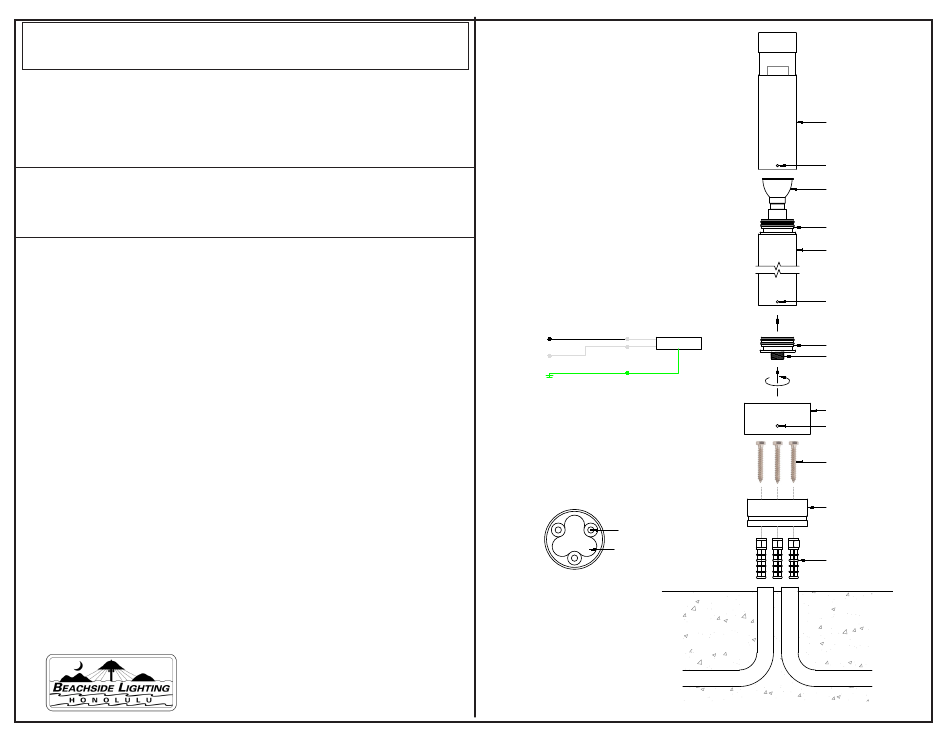

Figure 1
LAMP HOUSING
SET SCREW (x3)
LAMP OR LED
MODULE
UNION
LOWER SHAFT
SET SCREW (x3)
BASE
Apply thread-locking
agent (by others) to
male threads.
BSB COVER
SET SCREW (x3)
LAG SCREWS
MOUNTING
COLLAR
LAG SHIELDS
CONDUIT
06/2019
