REFERENCE GUIDE
ADJUST BUTTONS
DIP SWITCHES
BATTERY COMPARTMENT
REPLACEABLE SENSOR™
CERTIFICATE OF VALIDATION
Dickson ensures that the Replaceable Sensors™ /
Instruments listed below were developed, tested
and validated together.
Replaceable Sensor™ Model: R400
Instrument Model: KT6P1, KT6P2, KT6P5
Operation: The Instruments and Replaceable
Sensor™ models listed above were specifically
designed to work together. No other sensors
will work with the Instrument models listed. No
other Instrument will work with the Replaceable
Sensors™ listed. The Replaceable Sensor™ must be
connected to the Instrument for the Instrument to
operate properly.
Need additional support?
Web: DicksonData.com
Telephone: 630.543.3747
Email: support@dicksondata.com
930 S. Westwood Avenue
Addison, IL 60101
REPLACEABLE
SENSOR™ PORT
AC ADAPTER
Calibration: Only the Replaceable Sensor™ is
calibrated. The sensor, and all calibration defaults
and adjustments are stored on the Replaceable
Sensor™. Accuracy is strictly controlled by
the sensor – no adjustments are made by the
Instrument. Readings are sent from the Replaceable
Sensor™ to the Instrument for storage purposes
only. Certificates of Calibration / NISTs are only
supplied for the Replaceable Sensor™ for this
reason.
Recalibration: When a Replaceable Sensor™ is due
for recalibration the existing Replaceable Sensor™
can be replaced with a new Replaceable Sensor™
thus eliminating the need to return the entire
instrument for recalibration. Replaceable Sensors™
can be returned for recalibration as well.
REV 09/2019
USER MANUAL &
PRODUCT GUIDE

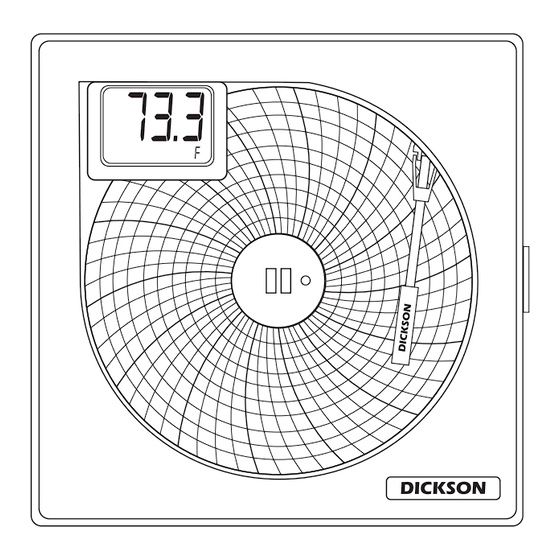

KT8
8" TEMPERATURE CHART RECORDER
Advertisement
Summary of Contents for Dickson KT8
- Page 1 CERTIFICATE OF VALIDATION calibrated. The sensor, and all calibration defaults and adjustments are stored on the Replaceable Dickson ensures that the Replaceable Sensors™ / Sensor™. Accuracy is strictly controlled by Instruments listed below were developed, tested the sensor – no adjustments are made by the and validated together.
- Page 2 ALARM is enabled. The relay will close only during Dickson Chart Recorder accuracy specifications are only valid with the use of authentic Dickson brand charts and pens. The specifications for chart printing, die cutting and paper and pressing ADJUST-DOWN will decrease the ALARM minimum and maximum ALARM conditions.
- Page 3 PEN CARTRIDGE PEN ARM Remove pen cap DOWN button. To lower the unit of measurement, press Note: User calibration invalidates Dickson’s Certificate of the ADJUST-UP button. Pressing PEN HOME switches Flip pen arm down Calibration. between the red and blue pens on a two pen unit and...
- Page 4 Why isn’t the chart keeping time or running slow? compared to? It’s ok if the unit is within the sum To setup the KT8 recorder for your specific of the two tolerances. application, you might need to change some of the •...
