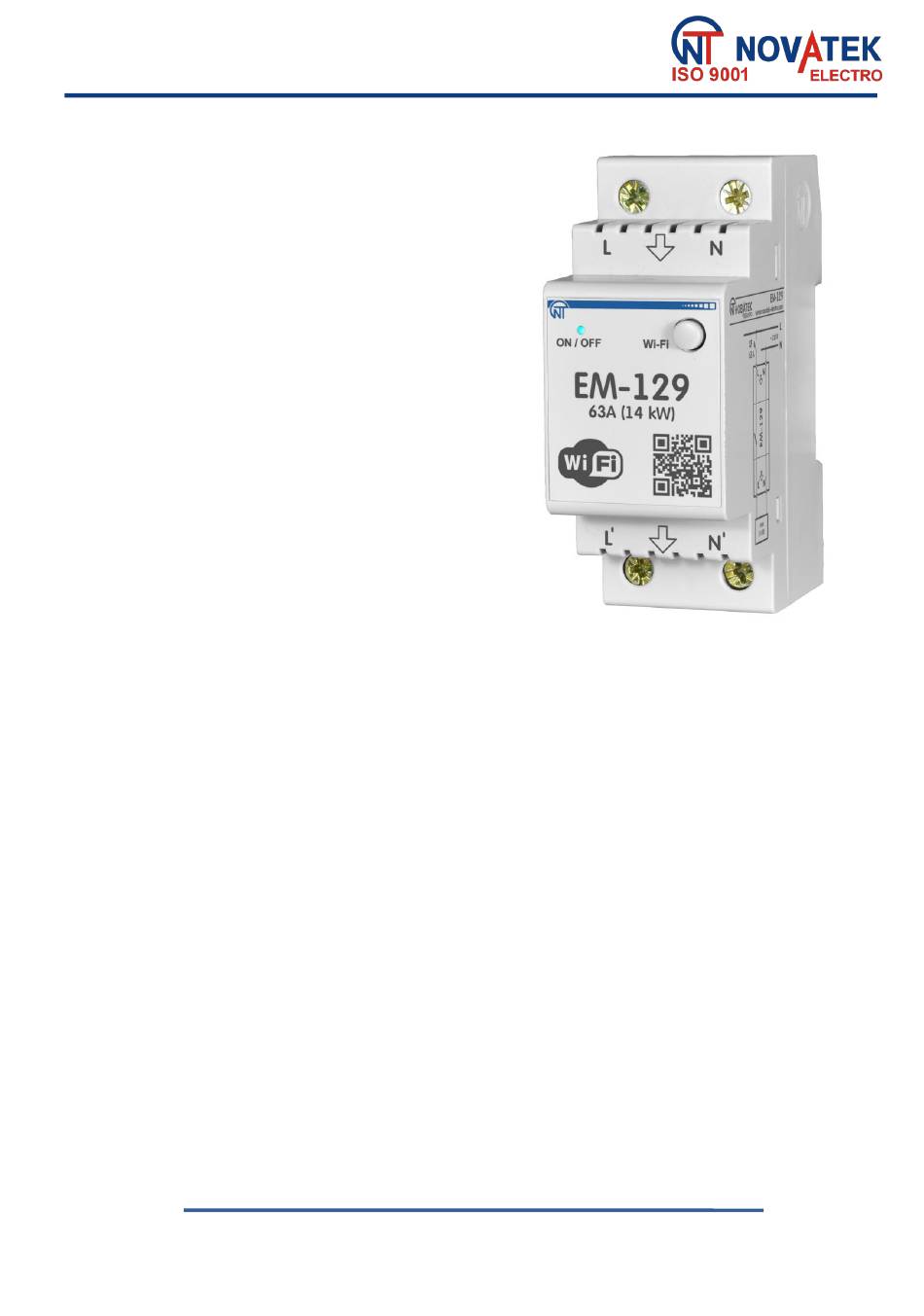

WI-FI ELECTRIC POWER METER
WITH PROTECTION AND
CONTROL FUNCTIONS
EM-129
OPERATING MANUAL
Quality control system on the development and deviceion complies with requirements
ISO 9001:2015
Dear customer,
Company NOVATEK-ELECTRO LTD. thanks you for purchasing our devices.
You will be able to use properly the device after carefully studying the Operating Manual.
Keep the Operating Manual throughout the service life of the device.
Odessa, Ukraine
www.novatek-electro.com
Advertisement
Summary of Contents for Novatek EM-129
- Page 1 Quality control system on the development and deviceion complies with requirements ISO 9001:2015 Dear customer, Company NOVATEK-ELECTRO LTD. thanks you for purchasing our devices. You will be able to use properly the device after carefully studying the Operating Manual. Keep the Operating Manual throughout the service life of the device.
- Page 2 Installation, adjustment and maintenance of the device must be performed by qualified personnel having studied this Operating Manual. In compliance with the requirements of this Operating Manual and regulations the device is safe for use. EM-129 meets the requirements of: EN 60947-1;...
- Page 3 Meter EM-129 stores in the internal memory a log of its work for the last month and energy consumption data. Meter EM-129 has protection against overheating and it disconnects the load if the temperature inside the device body exceeds 80 ºС...
-
Page 4: Technical Specifications
2. TECHNICAL SPECIFICATIONS 2.1 Main technical specifications The main technical characteristics of meter EM-129 are shown in Table 1. The adjustable parameters of meter EM-129 are shown in Table B1 - Appendix B. Table 1 - Main technical specifications Description Value 220 –... -
Page 5: Intended Use
EM-129 blocks the execution of the current scheduled event and switches over to the manual control mode. When the current scheduled event is completed or the next scheduled event occurs, meter EM-129 returns to the automatic mode of operation. - Page 6 3.4.1. Setting up of Wi-Fi connection To enter the setup mode, press and hold the Wi-Fi button on the front panel of the EM-129, (Figure 1, pos. 3) for 5-6 seconds. At the same time, the status indicator (Fig. 1, pos. 2) will flash in blue-red and meter EM-129 will create an access point with name "EM-129_xxxxxx", where xxxxxx is the unique device code (see Figure...
- Page 7 Internet Fig. 5 – connection to “my.overvis.com” After clicking on the link, the main interface of the EM-129 will be displayed on the screen of the electronic device (see Figure 6). For subsequent access to your device, use the "my.overvis.com"...
- Page 8 Meter EM-129 constantly monitors the value of the mains voltage, and after tripping on the load - the amount of current and power consumed by the load. If one of them goes beyond the established limits, meter EM-129 performs an emergency load disconnection.
- Page 9 “no”), the device will block the load from being switched on, and the status indicator will constantly glow in red. To restore the EM-129, it is necessary to disconnect it from the network, wait for 5 s and turn it on again.
-
Page 10: Maintenance
The device in the original package is permitted to be transported and stored at the temperature from minus 45 to +60 °C and relative humidity of no more than 80 %. 7. ACCEPTANCE CERTIFICATE EM-129 has been manufactured and accepted in accordance with the requirements of valid technical documentation and classified as fit for operation. Head of QCD... - Page 11 (see Fig. A2), where current information on EM-129 status is displayed. At the top of the screen, the device name “overvis EM-129”, the current power consumption by the load “0 W” and the button « » to open the main menu are displayed.
- Page 12 To delete an event, click " " in the upper left corner of the event. To save the current schedule in EM-129 - click the "Save" button. To cancel the changes made, click the “Cancel” button. Fig. A4 - Scheduler...
- Page 13 Re-closures - the number of allowed re-closures in the event of a failure; Fig. A5 – Voltage protection Save - save the settings in the EM-129. POWER PROTECTION Protection - permission to protection enabling (disabled, active or full power);...
- Page 14 Time on the device - the current date and time on the device; Time zone - the current time zone on the device; To enable automatic daylight saving time - a parameter that allows you to enable or disable the EM-129 to automatically switching over to daylight saving time;...
- Page 15 ~ 15 ~ Appendix B (informative) The adjustable parameters of meter EM-129 are shown in Table B1. Table B1 – Adjustable parameters of meter EM-129 Range Description Value after reset from Wi-Fi Name of network (SSID) 64 symbols of ASCII...
- Page 16 ~ 16 ~ “my.overvis.com” Server address 32 symbols of ASCII Table B1 (continued) Port of connection 65535 20504 Options Front panel blocking, in… min. 1-10 Meter blocking, in… min. 1-720 Reset time of re-closure counters, min. Display brightness EM-129 NOVATEK-ELECTRO...
