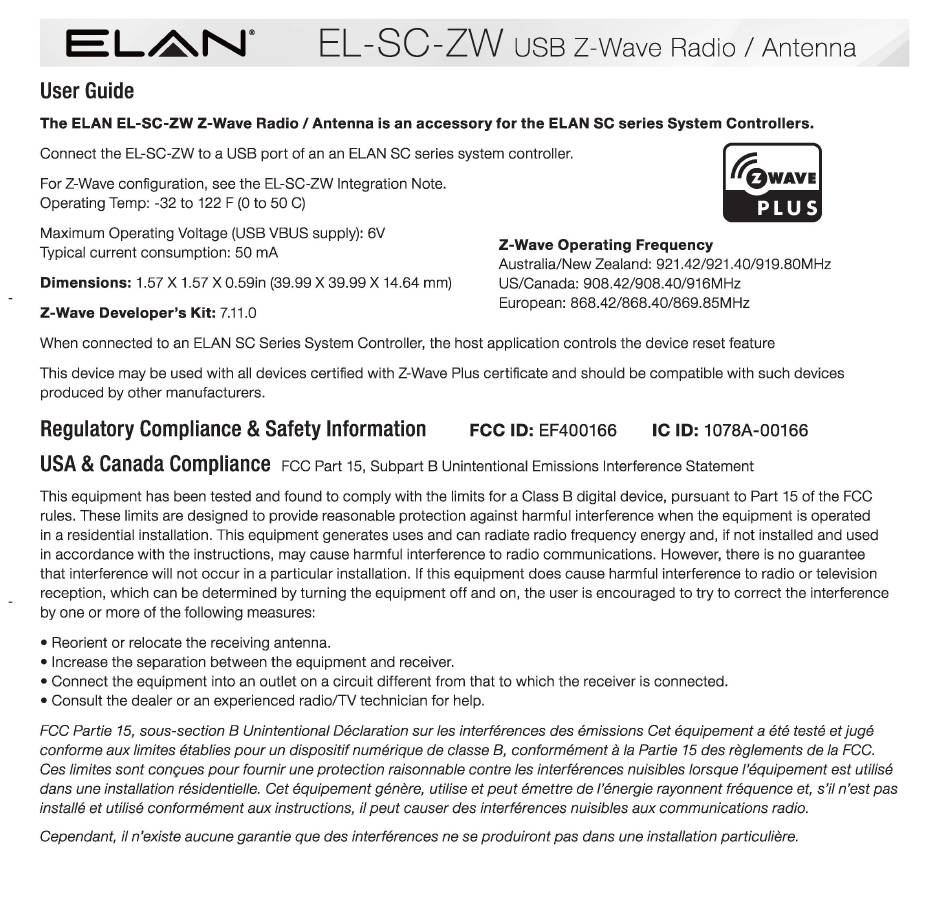

Elan EL-SC-ZW User Manual

EL-SC-ZW
USB Z-Wave Radio/ Antenna
User Guide
The ELAN EL-SC-ZW Z-Wave Radio/ Antenna is an accessory for the ELAN SC series System Controllers.
Connect the EL-SC-ZW to a USB port of an an ELAN SC series system controller.
For Z-Wave configuration, see the EL-SC-ZW Integration Note.
Iii;]
Operating Temp: -32 to 122 F (0 to 50 C)
Maximum Operating Voltage (USB VBUS supply): 6V
Typical current consumption: 50 mA
Dimensions: 1.57 X 1.57 X 0.59in (39.99 X 39.99 X 14.64 mm)
Z-Wave Developer's Kit: 7.11.0
Z-Wave Operating Frequency
Australia/New Zealand: 921.42/921.40/919.B0MHz
US/Canada: 908.42/908.40/916MHz
European: 868.42/868.40/869.85MHz
When connected to an ELAN SC Series System Controller, the host application controls the device reset feature
This device may be used with all devices certified with Z-Wave Plus certificate and should be compatible with such devices
produced by other manufacturers.
Regulatory Compliance & Safety Information
FCC ID: EF400166 IC ID: 1078A-00166
USA
&
Canada Compliance
FCC Part 15, Subpart B Unintentional Emissions Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated
in a residential installation. This equipment generates uses and can radiate radio frequency energy and,
if
not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Partie 15, sous-section B Unintentional Declaration sur !es interferences des emissions Cet equipement a ete teste etjuge
contorme aux limites etab/ies pour un dispositif numerique de c/asse B, conformement
a
la Partis 15 des reglements de la FCC.
Ces limites sont com;;ues pour fournir une protection raisonnable contre Jes interferences nuisibles lorsque requipement est utilise
dans une installation residentielle. Cet equipement genere, utilise et peut emettre de l'energie rayonnent trequence et, s'il n'est pas
instal/e et utilise conformement aux instructions, ii peut causer des interferences nuisibles aux communications radio.
Cependant, ii n'existe aucune garantie que des interferences ne se produiront pas dans une installation particu/iere.
